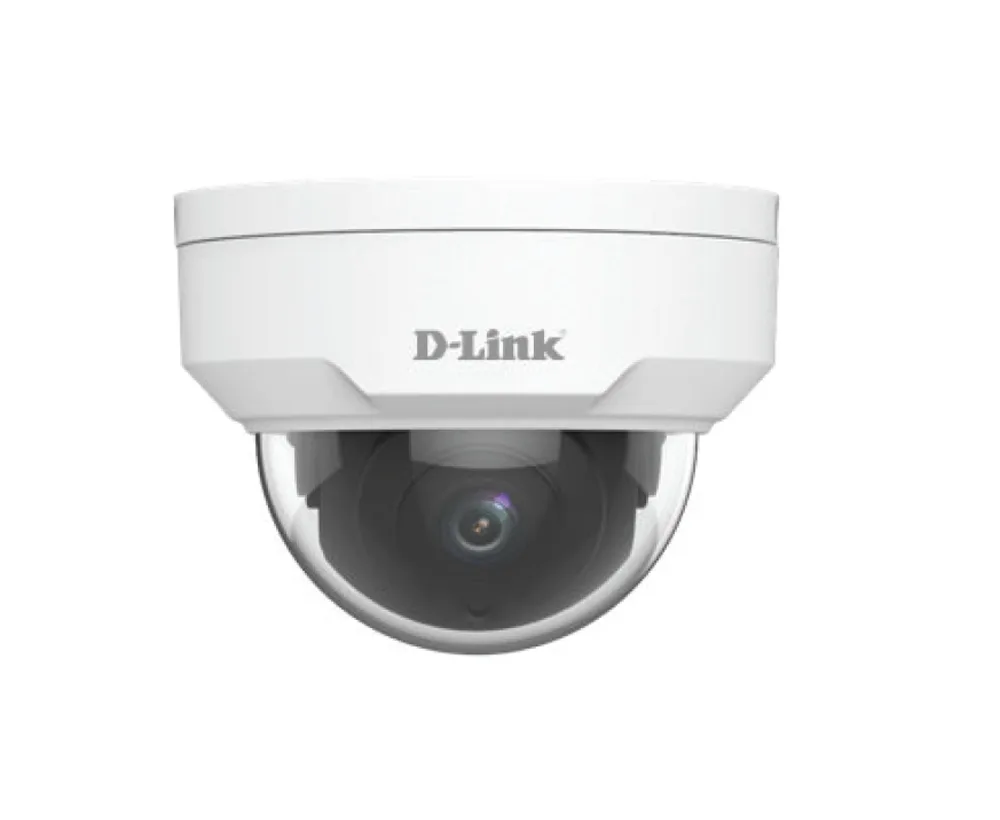

DCS-F5605
5MP Day & Night Vandal Proof Fixed Dome Camera
- Day/Night Functionality
- Smart IR, up to 30 m (98 ft) IR Distance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265,H.265, H.264, MJPEG
- ROI (Region of Interest)
- ONVIF Conformance
- Support PoE Power Supply
- Wide Temperature Range: -30°C ~ +60°C (-22°F ~ 140°F)
- Wide Voltage Range of ±25%
- IK10 Vandal Resistant
DCS-F5605
Specifications
| Sensor | 1/2.7", Progressive Scan, 5.0 megapixel, CMOS | |
|---|---|---|
| Lens | [email protected] | |
| Angle of View (H) | 105.3° \ | 79.7° |
| Angle of View (V) | 69.5° \ | 51.8° |
| Angle of View (O) | 136.9° \ | 98.0° |
| Adjustment Angle | Pan: 0°~360° \ | Tilt: 0°~75° |
| Shutter | Auto/Manual, 1/6~1/100000 s | |
| Minimum Illumination | Colour: 0.01Lux (F2.0, AGC ON) 0 Lux with IR | |
| Day/Night | IR-cut Filter with Auto Switch (ICR) | |
| Digital Noise Reduction | 2D/3D DNR | |
| S/N | >52dB | |
| IR Range | Up to 30m (98 ft) IR Range | |
| WDR | DWDR | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |
| H.264 Code Profile | Baseline Profile, Main Profile, High Profile | |
| Frame Rate | Main Stream:5MP (2592*1944): Max. 15 fps; Sub Stream:720P (1280*720): Max.20 fps; | |
| OSD | Up to 4 OSDs | |
| Privacy Mask | Up to 8 Areas | |
| ROI | Up to 2 Areas | |
| Motion Detection | Up to 4 Areas | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | |
| Compatible Integration | ONVIF(Profile S), API | |
| Network | 10M/100M Base-TX Ethernet | |
| Power | DC12V±25%, PoE (IEEE802.3 af) Power Consumption: Max.4w | |
| Dimensions (Ø x H) | Ø109 x 81mm (Ø4.3" x 3.2") | |
| Weight | 0.35kg (0.77lb) | |
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH (Non-Condensing) | |
| Ingress Protection | IP67 | |
| Vandal Resistant | IK10 |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
