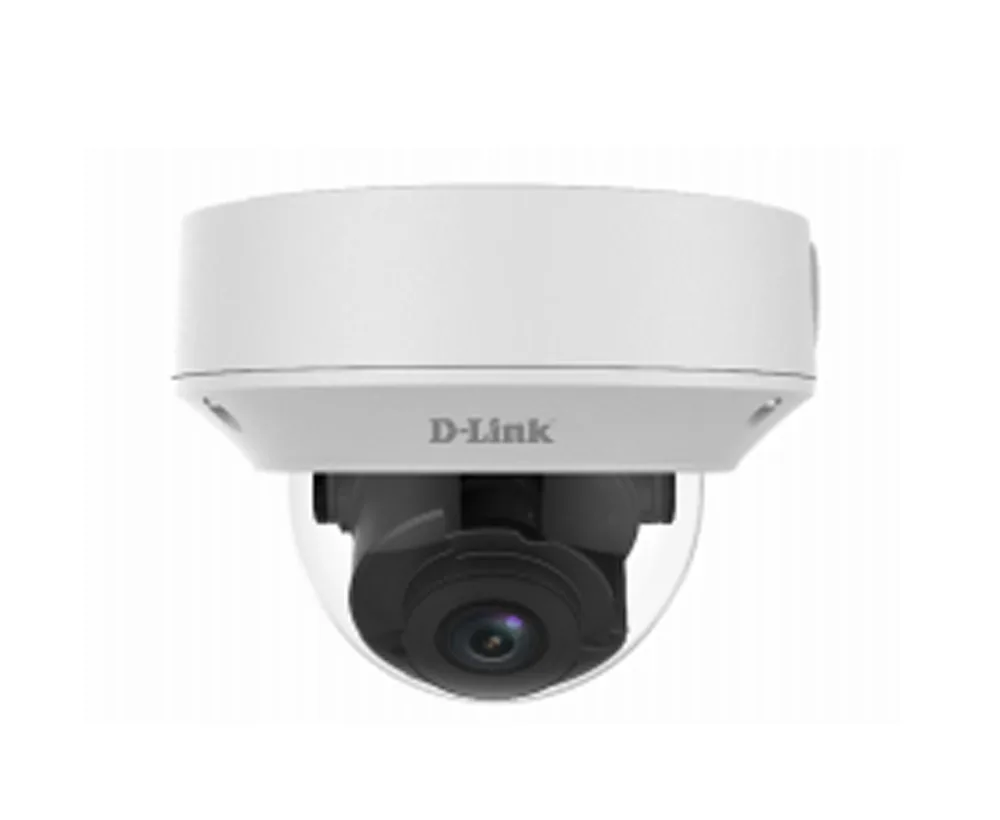

DCS-F5622
2MP Vandal-Resistant Network IR Motorized Dome Camera
- Day/night functionality
- Smart IR , up to 30 m (98 ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265,H.265, H.264, MJPEG
- Triple streams
- ONVIF Conformance
- Wide temperature range: -40°C to 60°C (-40°F to 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
DCS-F5622
Specifications
| Sensor | 1/2.7", 2.0 megapixel, progressive scan, CMOS | ||
|---|---|---|---|
| Lens | 2.8~12 mm, motorized zoom lens | ||
| Angle of View (H) | 112.7°~28.1° | ||
| Angle of View (V) | 60.1°~15.4° | ||
| Angle of View (O) | 146.5°~33.2° | ||
| Adjustment angle | Pan: 0°~360° \ | Tilt: 0°~80° \ | Rotate: 0°~360° |
| Shutter | Auto/Manual, 1~1/100000 s | ||
| Minimum Illumination | Colour: 0.01Lux (F1.6 AGC ON) 0 Lux with IR | ||
| Day/Night | IR-cut filter with auto switch (ICR) | ||
| Digital noise reduction | 2D/3D DNR | ||
| IR Range | Up to 30m (98 ft) IR range | ||
| Defog | Digital Defog | ||
| WDR | DWDR | ||
| Video Compression | Ultra 265,H.265, H.264,MJPEG | ||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||
| Frame Rate | Main Stream:1080P (1920×1080): Max. 30 fps; Sub Stream:720P (1280×720): Max. 30 fps; Third Stream: D1 (704×576): Max. 30 fps | ||
| HLC | Supported | ||
| BLC | Supported | ||
| OSD | Up to 4 OSDs | ||
| Privacy Mask | Up to 8 areas | ||
| ROI | Up to 2 areas | ||
| Motion Detection | Up to 4 areas | ||
| Protocols | IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL | ||
| Compatible Integration | ONVIF(Profile S, Profile G, Profile T), API | ||
| Network | 10M/100M Base-TX Ethernet | ||
| Edge Storage | MicroSD, up to 256GB | ||
| Power | DC12V±25%, PoE (IEEE802.3 af) Power consumption: Max 6.5W | ||
| Dimensions (Ø x H) | Φ148 x 111.3 mm (Ø5.8" x 4.4") | ||
| Weight | 0.92kg (2.0lb) | ||
| Working Environment | -40°C ~ +60°C (-40°F ~ 140°F), Humidity:10%~ 95% RH(non-condensing) | ||
| Ingress Protection | IP67 | ||
| Vandal Resistant | IK10 | ||
| Reset Button | Supported |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
