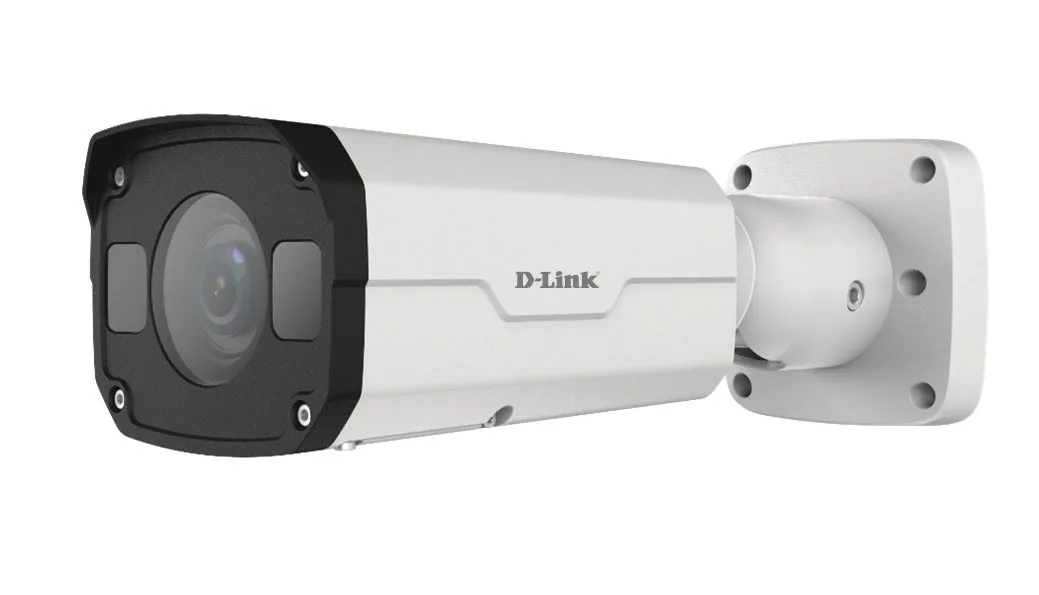

DCS-F5732E
2MP VF Network IR Bullet Camera
- Day/Night Functionality
- Smart IR, up to 50m (164 ft) IR Distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265,H.265, H.264, MJPEG
- Embedded Smart Algorithm
- Triple Streams
- ROI (Region of Interest)
- 9:16 Corridor Mode
- ONVIF Conformance
DCS-F5732E
Specifications
| Sensor | 1/2.8", progressive scan, 2.0megapixel, CMOS |
|---|---|
| Lens | 2.8~12mm, AF automatic focusing and motorized zoom lens |
| Angle of View(H) | 94.0° ~ 28° |
| Angle of View (V) | 56.7°~14.4° |
| Angle of View (O) | 122.2°~34.4° |
| Adjustment Angle | Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360° |
| Shutter | Auto/Manual, 1~1/100000 s |
| Minimum Illumination | Colour: 0.002 Lux (F1.6, AGC ON) 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital Noise Reduction | 2D/3D DNR |
| S/N | >52dB |
| IR Range | Up to 50m (164 ft) IR range |
| Defog | Digital Defog |
| WDR | 120dB |
| Video Compression | Ultra 265,H.265, H.264,MJPEG |
| H.264 Code Profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream:2MP (1920×1080): Max. 30 fps; Sub Stream: 2MP (1920×1080): Max. 30 fps; Third Stream:D1 (720×576): Max. 30 fps |
| 9:16 Corridor Mode | Supported |
| HLC | Supported |
| BLC | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Motion Detection (Video) | Up to 4 areas |
| Behavior Detection | Intrusion, Cross Line, Motion Detection |
| Intrusion | Enter and Loiter in a pre-defined Virtual Region |
| Cross Line | Cross a pre-defined Virtual Line |
| Motion Detection (Smart) | Moving within a pre-defined Virtual Region |
| Recognition | Face Detection, Audio Detection |
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving |
| Statistical Analysis | People Counting |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm Output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio Compression | G.711 |
| Two-way Audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Compatible Integration | ONVIF(Profile S, Profile G, Profile T), API |
| Audio I/O | Audio Cable Input: impedance 35 kΩ; amplitude 2 V [p-p] Output: impedance 600 Ω; amplitude 2 V [p-p] |
| Alarm I/O | 1/ 1 |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Power | 12 V DC±25%, PoE (IEEE802.3 af) Power Consumption: Max 9W |
| Dimensions (L × W × H) | 253.4 ×86 ×71.7 mm (9.98" × 3.4" × 2.8") |
| Weight | 1.0kg (2.2lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing) |
| Ingress Protection | IP67 |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
