DEM-432XT
10GBase-LR SFP+ Transceiver (10 Km)

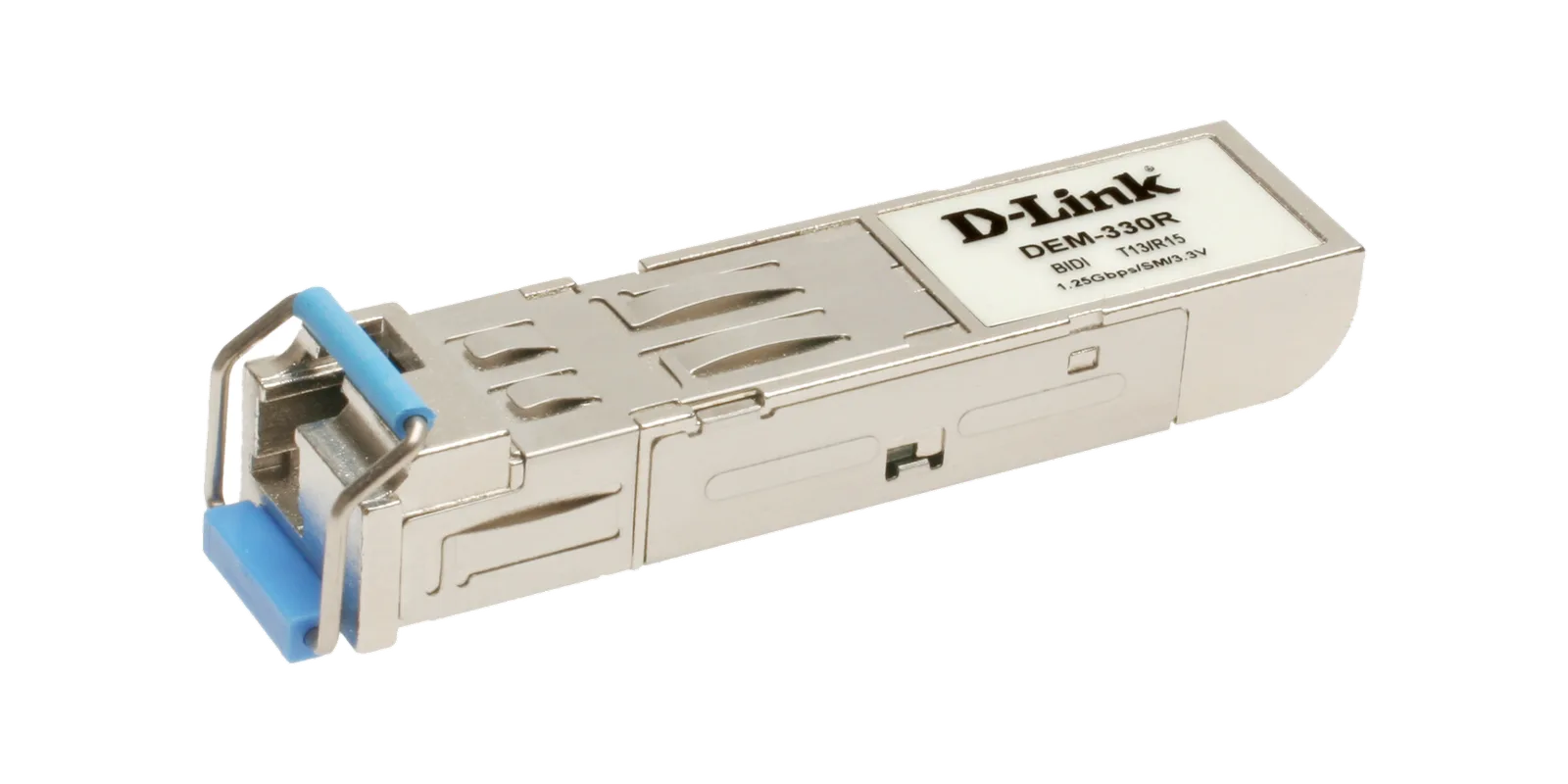

DEM-330R
Specifications
| Standard | IEEE802.3z 1000BASE-BX-U |
|---|---|
| Wavelength | Tx: 1310nm, Rx: 1550 nm |
| Connector | Simplex LC |
| Fiber Type | 9/125um Single-mode Fiber |
| Maximum Fiber Cable Length | 10 km |
| Transmit Power Range | -3 to -9 dBm |
| Receive Power Range | -1 to -21 dBm |
| Sensitivity | -21 dBm |
| Min. Power Budget | 12 dB |
| Max. Power Budget | 18 dB |
| Power Support | 3.3 V |
| Supply Current | 250 mA |
| Heat Generated | 1.78 kJ/h |
| MTBF | 445,890 |
| Dimensions | 13.4 mm (W) x 55.5 mm (D) x 11.28 mm (H) |
| Weight | 19.8 grams |
| Emission (EMI) Certifications | FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B |
| Safety Certification | TUV, UL, FDA |
| RoHS | Compliant |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
