Simple. Easy. Smart.
Web UI
Easy to use web interface to access management features.
VLANs
Segment your network into VLANs.
Surveillance Mode Interface
Get a snapshot of your security topology in an instant.

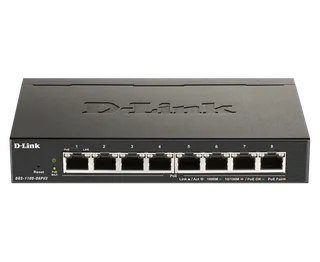

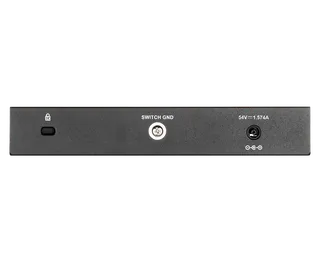

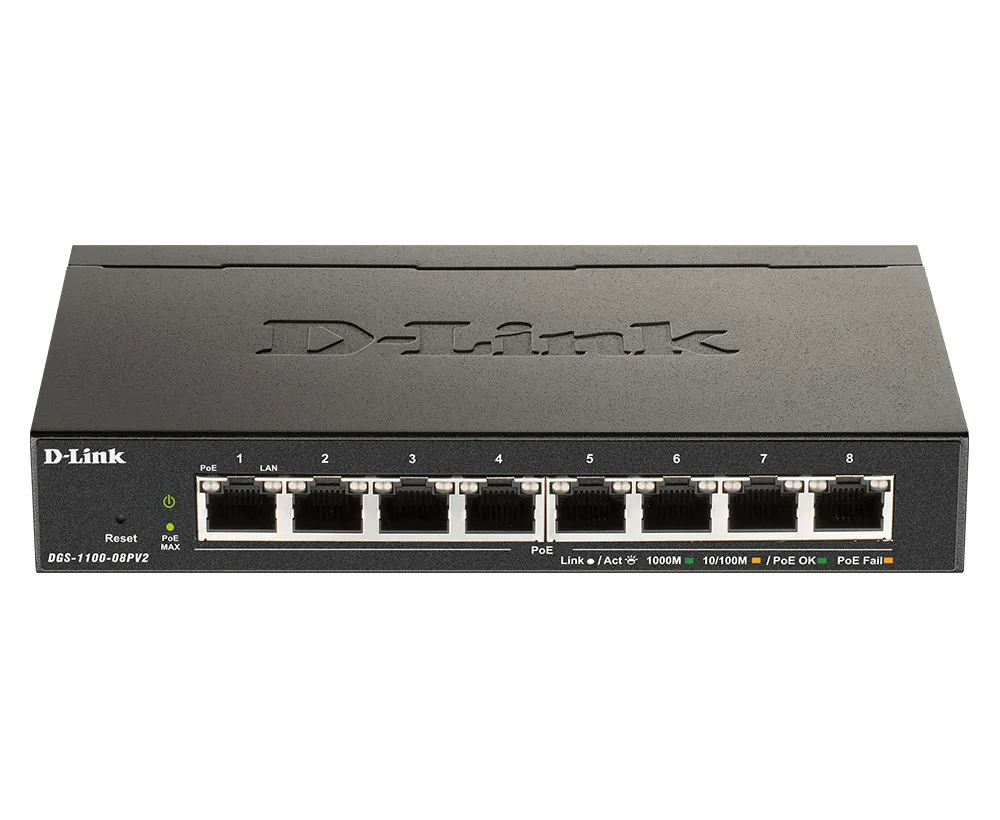

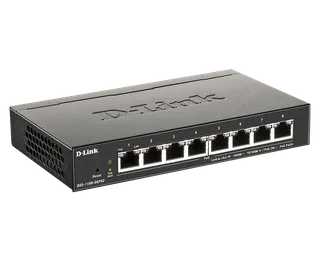

DGS-1100-08PV2
8-Port Gigabit Easy Smart PoE Switch
- 8 Ports GE PoE Ethernet for downlink
- PoE IEEE 802.3af/at options, power budget 64W
- Fanless design
- Broadcast/Multicast/Unicast Storm Control
- Static Port Trunking
- 802.1D STP/ 802.1w RSTP
- IGMP Snooping
- Web-based GUI
Overview
Advanced Security Features
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (static). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.
Full PoE Support
Selected models in the DGS-1100 Series support Power over Ethernet on copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.
DGS-1100-08PV2
Specifications
| Interfaces | 8 x GE PoE |
|---|---|
| Switching Capacity | 16 Gbps |
| Max. Packet Forwarding Rate | 11.9 Mpps |
| PoE Standards | IEEE 802.3af/at |
| PoE Power Budget | 64 W |
| Max Power Consumption | 77.9 W (PoE on) 4.6 W (PoE off) |
| Dimensions | 145 x 82 x 28 mm |
| Weight | 0.43 kg |
| FAN | Fanless |
| Operating Temperature | 0°C - 40°C (32°F - 104°F) |
| Storage Temperature | -40°C to 70°C ( -40°F to 158°F) |
| Operating Humidity | 0% to 90% RH, non-condensing |
| Storage Humidity | 0% to 95% RH, non-condensing |
| Power Supply Type | External |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
