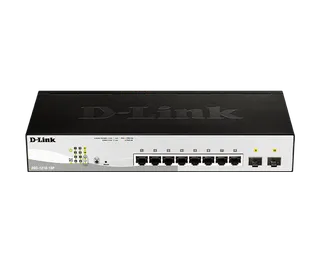

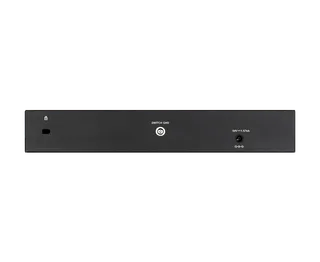

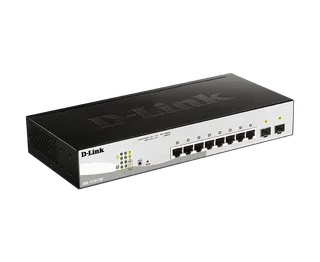

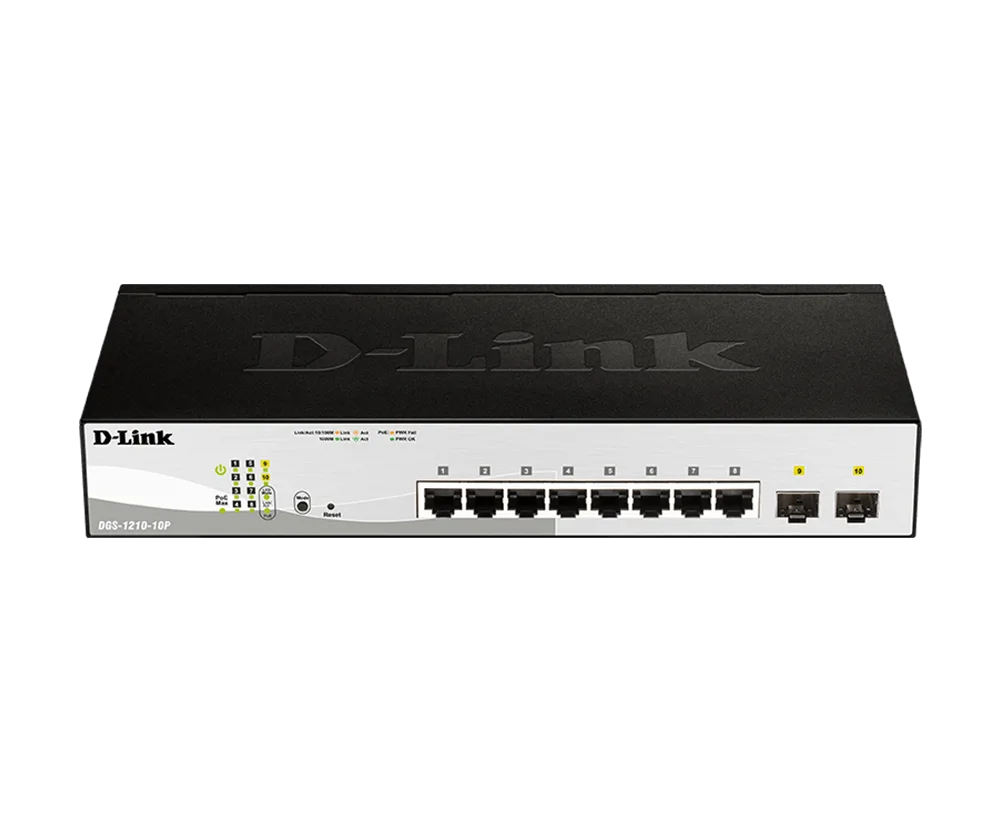

DGS-1210-10P

10-Port Gigabit Smart Managed PoE Switch

8 x 10/100/1000BASE-T PoE ports
2 x Gigabit SFP ports
Advanced L2 switching and security features
L2+ Static Routing
Optional “standard mode” or “surveillance mode” management user interface
65W PoE budget

Where to buy Download datasheet View specifications

Overview

Extensive Management and Layer 2 Features

The DGS-1210 Series comes equipped with a complete lineup of L2 features, including IGMP snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers.

The Series also supports advanced features such as static routing, which allows for communication between different user groups in different VLAN segments in a network. The switch can directly handle inter VLAN routing using multiple interfaces, making the network run faster and more efficiently. And, because the switches can manage internal routing, the network router can be assigned to handle external traffic routing only.

Extensive Management and Layer 2 Features illustration

Technical specifications for DGS-1210-10P
Hardware Version	Fx
Mounting Options	Desktop or 19" Rack Mount (mounting brackets included)
Interfaces	8 10/100/1000BASE-T PoE 2 100/1000 Mbps SFP ports
Port Standards	IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper) IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3x Flow Control IEEE 802.3af/at compliance (for PoE ports)
Network Cables	UTP Cat. 5, Cat. 5e (100 m max.)
Duplex Mode	Full/Half-duplex for 10/100 Mbps Full-duplex for 1000 Mbps
Media Interface Exchange	Auto MDI/MDIX adjustment for all twisted-pair ports
Switching Capacity	20 Gbps
Transmission Method	Store-and-forward
MAC Address Table	8K entries
Static MAC Addresses	256 entries
Maximum 64 Byte Packet Forwarding Rate	14.88 Mpps
Packet Buffer Memory	4.1 Mbits
CPU Memory	DDR3 128 MB
Flash Memory	32 MB
PoE Capable Ports	Ports 1 to 8
Power Budget	65 W
Power (per device)	Yes
Link/Active/Speed (per port)	Yes
PWR Max	Yes
Fan Error	N/A
Power Input	54.0 V DC external power adapter
Maximum Power Consumption (PoE enabled)	81.9 W/100 V 80.6 W/240 V
Maximum Power Consumption (PoE disabled)	7.6 W/100 V 7.5 W/240 V
Standby Power Consumption	2.5 W/100 V 2.5 W/240 V
Acoustics	0 dB(A)
Heat Dissipation	279.59 BTU/hr (100 V) 275.04 BTU/hr (240 V)
Fans	N/A
Operating Temperature	-5 to 50°C (23 to 122°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Operating Humidity	0% to 95% relative humidity
Storage Humidity	0% to 95% relative humidity
Dimensions (L x W x H)	280 x 126 x 44 mm (11.02 x 4.96 x 1.73 in)
Weight	0.95 kg (2.10 lbs)
Certifications	EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CQC (only for specific models) Safety: CB, UL, BSMI, LVD, CQC (only for specific models)
MTBF	729,258 hours

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
