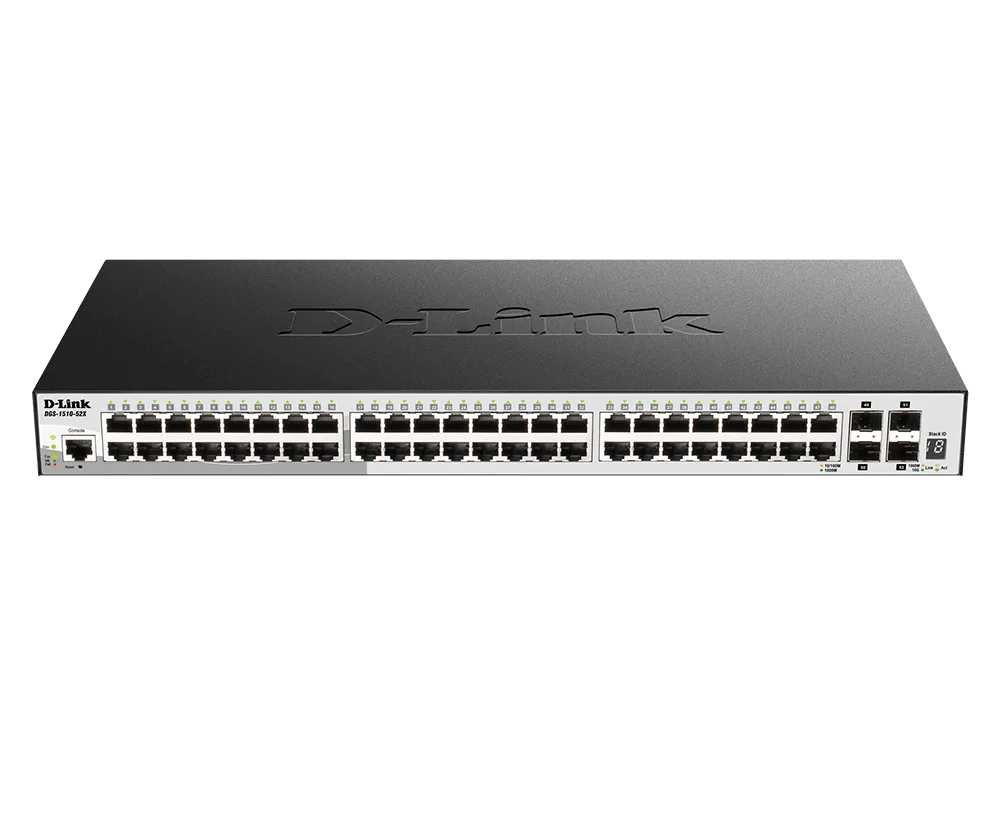

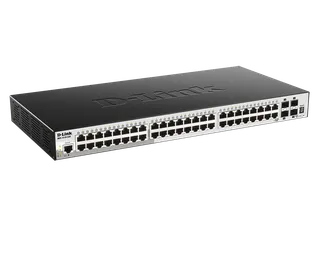

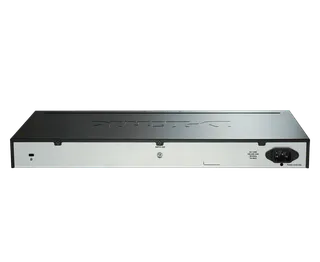

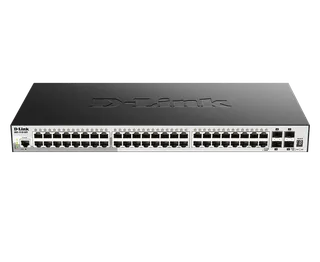

D-Link

DGS-1510-52X

52-port Stackable Gigabit Switch including 4 10GbE SFP+ ports

  • 48 x 10/100/1000BASE-T ports
  • 4 x 10G SFP+ ports
  • Layer 2 management and security with Layer 3 capabilities
  • Static Routing and MSTP

Overview

Description

The D-Link DGS-1510 Series is the latest generation of Smart Managed switches with 10G capability, available with 16, 24, or 48 10/100/1000 Mbps ports plus additional fiber ports for physical stacking or uplinks. The series includes three PoE-capable switches that provide additional flexibility for businesses looking to power IP phones, wireless access points, or IP cameras using existing network infrastructure. The combination of high bandwidth connections and PoE support makes the DGS-1510 Series ideal for Small-Medium Enterprise (SME) and Small-Medium Business (SMB) environments.

10G SFP+ Stacking/Uplink Ports

The last two SFP+ ports of the DGS-1510 Series switches allow users to create a physical stack of up to 6 units in a fault-tolerant ring or linear topology using Direct Attach Cables (DACs) or any compatible SFP+ transceiver. This creates a total of 288 Gigabit ports, ensuring high bandwidth while staying cost-efficient. Meanwhile, the remaining uplink ports can be used for other functions, such as connecting to a larger network. Users can also easily configure and manage any of the DGS-1510 Series Smart Managed switches in a single stack. With 20 Gbps full-duplex capabilities, the DGS-1510 Series offers 10G connectivity to core networks and servers while still maintaining fast data transfer rates.

Layer 3 Traffic Management

The DGS-1510 Series provides static routing, allowing you to segment your network into workgroups that communicate between VLANs and increase application performance. With these capabilities, you can reduce the load on your core devices, allowing you to create a scalable and efficient network.

DGS-1510-52X

Specifications

Technical specifications for DGS-1510-52X
Hardware VersionA2
Size19" standard rack width, 1U height
Interfaces48 x 10/100/1000 Mbps 4 x 10G SFP+
Port Standards & FunctionsIEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3x Flow Control for full-duplex mode, auto-negotiation
Network CablesUTP Cat. 5, Cat. 5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.)
Duplex ModeFull/half-duplex for 10/100 Mbps and full-duplex for 1000 Mbps speed
Media Interface ExchangeAuto or configurable MDI/MDIX
Switching Capacity176 Gbps
Transmission MethodStore-and-forward
MAC Address TableUp to 16,384 entries per device
MAC Address UpdateUp to 512 static MAC entries Enable/disable auto-learning of MAC addresses
Maximum Packet Forwarding Rate130.95 Mpps
Packet Buffer Memory3 MB per device
MTBF423,302 hours
Flash Memory32 MB
DRAM Size256 MB
Diagnostic LEDsPower/Stacking ID/Fan (per device) Link/Activity/Speed (per 10/100/1000 Mbps port) Link/Activity/Speed (per Gigabit SFP port) Link/Activity/Speed (per 10G SFP+ port)
AC Input100 to 240 VAC 50/60 Hz internal universal power supply
Maximum Power Consumption48 W
Standby Power Consumption30.3 W
Fans1 x smart fan
Acoustics49.7 dB(A)
Heat Dissipation163.68 BTU/hr
Operating Temperature-5 to 50 °C (23 to 122 °F)
Storage Temperature-20 to 70 °C (-4 to 158 °F)
Operating Humidity0% to 95% non-condensing
Storage Humidity0% to 95% non-condensing
Dimensions (W x D x H)440 x 210 x 44 mm (17.36 x 8.26 x 1.73 in)
Weight3.10 kg (6.83 lbs)
CertificationsCE, FCC, C-Tick, VCCI, BSMI, CCC
SafetycUL, CB
Power/Stacking ID/Fan (per device)Yes
Link/Activity/Speed (per 10/100/1000 Mbps port)Yes
Link/Activity/Speed (per Gigabit SFP port)Yes
Link/Activity/Speed (per 10G SFP+ port)Yes

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
