D-Link

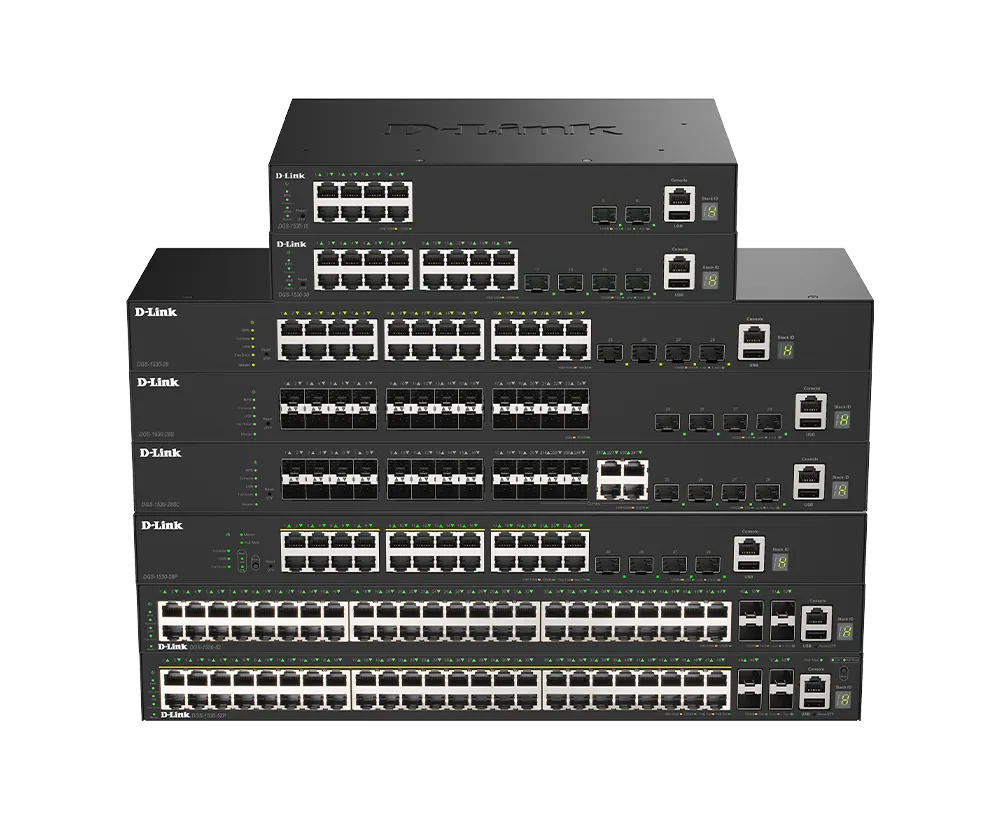

DGS-1530 SERIES

Gigabit Stackable Smart Managed Switches

  • Support 1G for downlink ports
  • Support 10G SFP+ for uplink ports
  • PoE IEEE 802.3af/at with a robust power budget
  • 6kV surge protection on all Gigabit Ethernet ports
  • Physical stack of up to 9 units via 10G ports
  • Supports 802.3ad LACP for link aggregation
  • Support Static Routing and Loopback Detection
  • AAA support for RADIUS/TACACS+
  • Support D-Link Safeguard Engine
  • Manage through the Nuclias Network Controller
Where to buyDownload datasheetView specifications

Overview

Why You Need It​

Physical Stacking

Physical stacking enables simplified management and scalable network expansion

Stay Connected

ERPS ensures fast, reliable network recovery and minimal downtime and ensures the continuous connectivity

Rich OAM Support

Comprehensive OAM streamlines monitoring, troubleshooting, and boosts network performance

Effortless Protection

Robust security strengthens safety, simplifies control, and prevents attacks for efficient operations

Static Routing

Static routes offer simplicity, stability, control, and enhanced security for network management

Uninterrupted Flow

Redundant power supply ensures uninterrupted services by backing up the built-in power and boosting PoE power

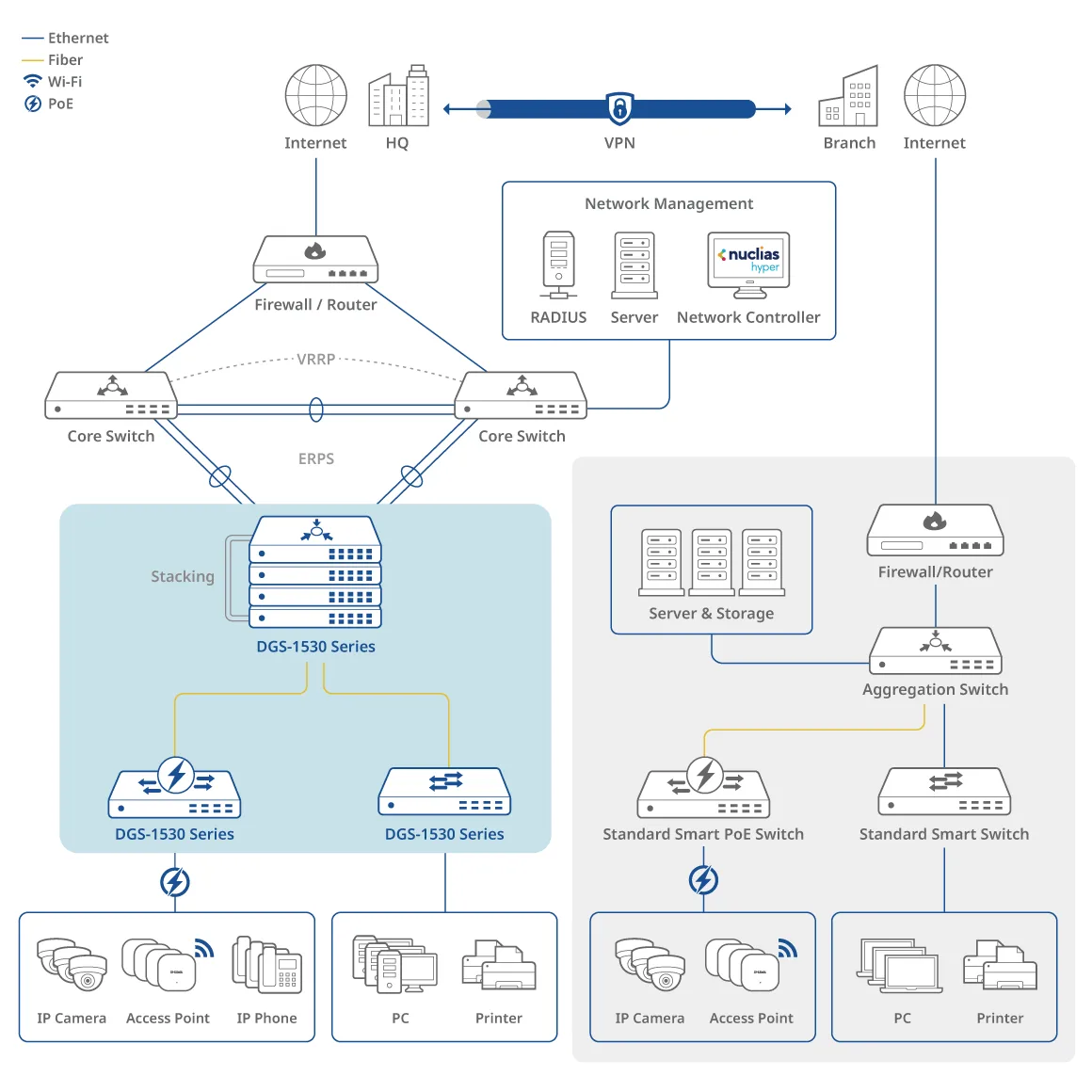

Connection Diagram

The DGS-1530 series offers scalable connectivity with 10 to 52 ports, including PoE and fiber options. It's perfect for IP surveillance, VoIP, and smart office networks, featuring VLAN, QoS, stacking and robust security like ACLs and 802.1X authentication.

Network Controller

Aggregation Switch

Standard Smart Switch

Access Point

Connection Diagram

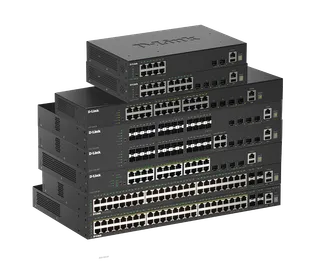

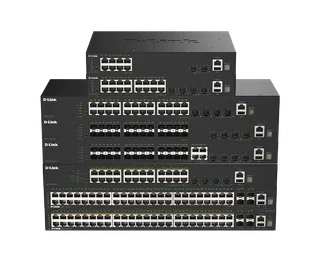

DGS-1530 SERIES

Specifications

DGS-1530 Series Specification
SpecificationDGS-1530-10DGS-1530-20DGS-1530-28DGS-1530-28PDGS-1530-28SDGS-1530-52DGS-1530-52P
Interface8 x 1GE 2 x 10G SFP+16 x 1GE 4 x 10G SFP+24 x 1GE 4 x 10G SFP+24 x 1GE PoE 4 x 10G SFP+24 x 1G SFP 4 x 10G SFP+48 x 1GE 4 x 10G SFP+48 x 1GE PoE 4 x 10G SFP+
Performance
Switch Capacity56 Gbps112 Gbps128 Gbps128 Gbps128 Gbps176 Gbps176 Gbps
Max. Packet Forwarding Rate41.67 Mpps83.33 Mpps95.24 Mpps95.24 Mpps95.24 Mpps130.95 Mpps130.95 Mpps
PoE
PoE Standard---IEEE802.3af/at--IEEE802.3af/at
PoE Ports---Port 1 ~ 24--Port 1 ~ 48
PoE Budget---370 W--370 W (no RPS) 740 W (with DPS-700)
Technical Specification
Surge Protection6kV Surge Protection on all ethernet ports
FanFanlessFanless1 Internal Fan3 Internal Fans2 Internal Fans2 Internal Fans3 Internal Fans
Console PortYesYesYesYesYesYesYes
Power Supply TypeInternalInternalInternalInternalInternalInternalInternal

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
