Overview

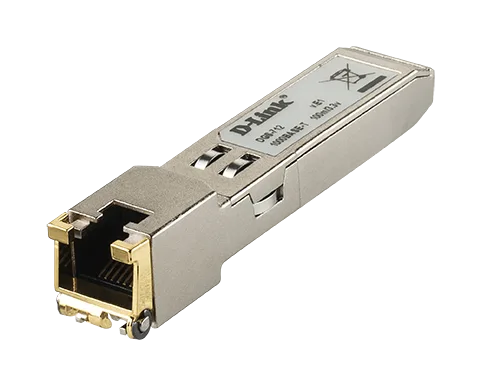

D-Link’s DGS-712 1000BASE-T Copper Small Form-factor Pluggable (SFP) transceiver is based on the SFP Multi Source Agreement. It is compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802.3z and 802.3ab. The DGS-712 plugs into any standard SFP interface allowing for 1000BASE-T Gigabit transmission over standard Category 5 twisted pair copper.
DGS-712
| Standard | IEEE 802.3ab 1000BASE-T Gigabit Ethernet Compliant with MSA SFP Specification |
|---|---|
| Transceiver Type | SFP (Small Form-factor Pluggable) |
| Connector | RJ-45 |
| Auto MDI/MDIX | Automatic crossover detection enabled External crossover cable not required |
| Data Rate | 1,000 Mbps (IEEE 802.3 compatible) 1000BASE-T operation requires the host system to have an SGMII interface with no clocks. With a SERDES interface, this transceiver will operate at 1000BASE-T only |
| Cable Type | Cat. 5 twisted-pair cable |
| Maximum Cable Distance Coverage | 100 meters |
| Supply Current | 350mA (typical) 400mA (maximum) 1.3W max power over full range of voltage and temperature |
| Input Voltage | 3.1V (minimum) 3.3V (typical) 3.5V (maximum) Referenced to GND |
| Surge Current | 30mA Hot plug above steady state current |
| Dimensions (W x D x H) | .47” x 2.95” x .47” (11mm x 75mm x 11mm) |
| Weight | .53 lbs (0.2 kg) |
| Operating Temperature | 32° to 185° F (0° to 85°C) |
| Storage Temperature | -40° to 185° F (-40° to 85°C) |
| Warranty | 2-Year Limited |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
