Gigabit High-Speed Networking
- Gigabit ports allow you to connect up to 16 devices for fast file transfers and smooth media streaming
- Two (2) SFP uplink ports allow for additional connections to storage or an uplink network

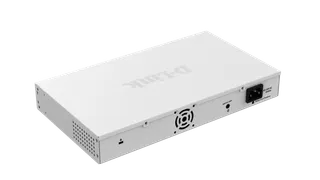

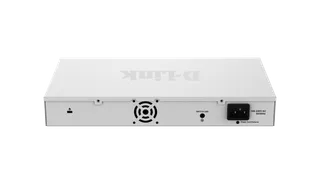

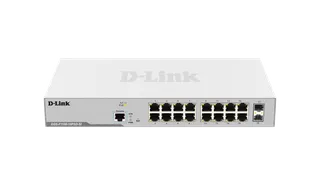

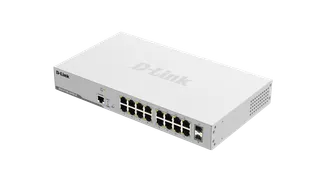

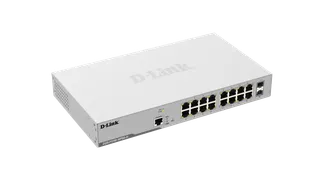

DGS-F1100-18PSD-SI
18-Port Layer 2 Gigabit Cloud Managed PoE Switch
- Gigabit ports allow you to connect up to 16 devices for fast file transfers and smooth media streaming
- Two (2) SFP uplink ports allow for additional connections to storage or an uplink network
- Supports IEEE 802.3af/at PoE to Power PoE capable Network devices via ethernet cables without need for power adapters.
- Plug and play installation
- IEEE 802.3x Flow Control
- Auto MDI/MDIX crossover for all ports
- Low-cost, innovative design runs reliably and quietly, saving energy and cutting costs without sacrificing performance.
- Web GUI : Intuitive browser-based configuration for quick setup.
- CLI (Command Line Interface): Advanced control via Telnet/SSH for IT professionals.
- Remote access and centralized management from anywhere.
Overview
Power Your Devices
- Supports IEEE 802.3af/at PoE to Power PoE capable Network devices via ethernet cables without need for power adapters.
Easy to Use
- Plug and play installation
- IEEE 802.3x Flow Control
- Auto MDI/MDIX crossover for all ports
Eco-friendly and Economical
- Low-cost, innovative design runs reliably and quietly, saving energy and cutting costs without sacrificing performance.
Advanced Management
- Web GUI : Intuitive browser-based configuration for quick setup.
- CLI (Command Line Interface): Advanced control via Telnet/SSH for IT professionals.
- Remote access and centralized management from anywhere.

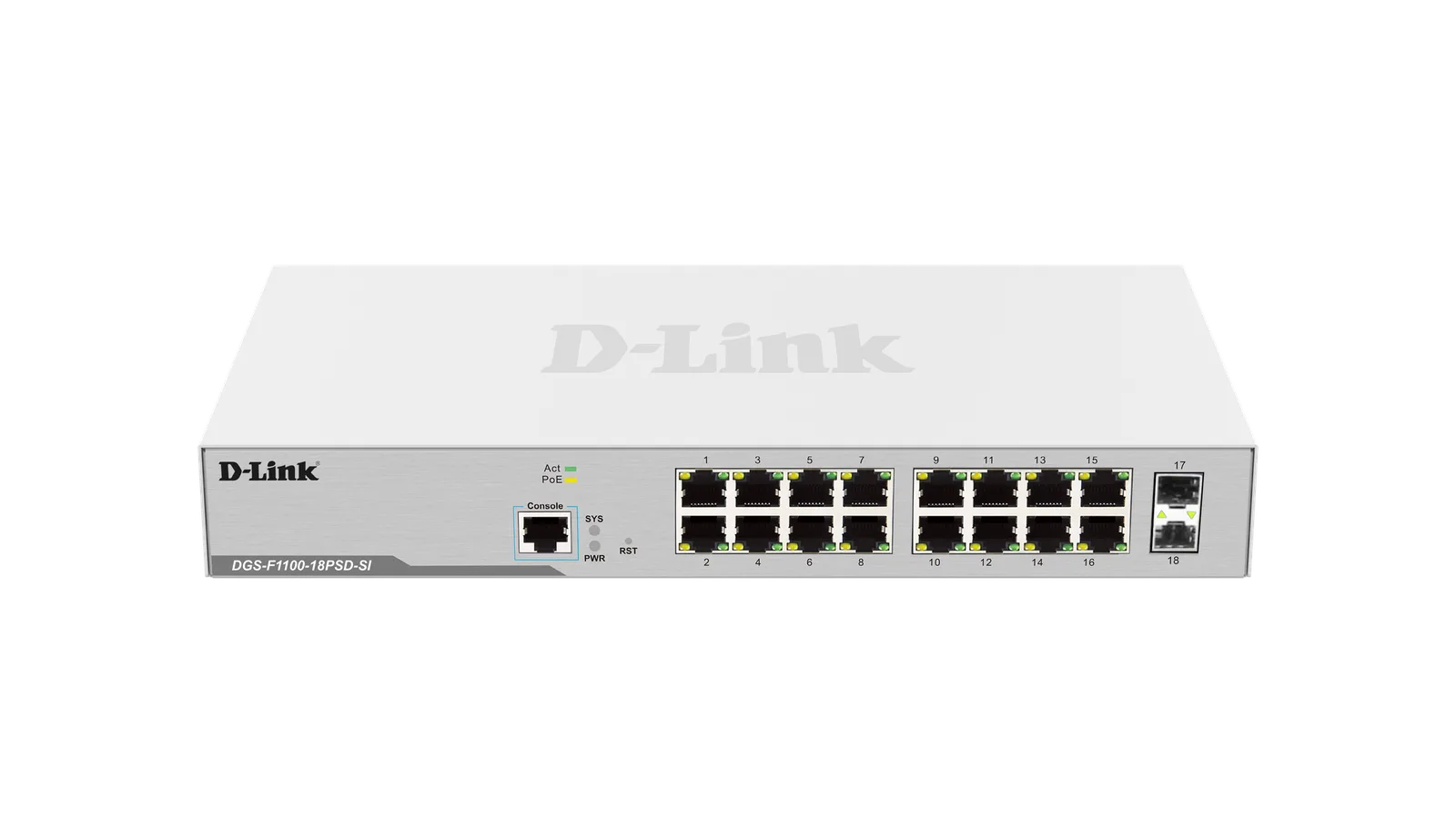

DGS-F1100-18PSD-SI
Specifications
| Network Interface | 16 x 10/100/1000 Mbps PoE Ports (Port 1~16) 1 x 1000 Mbps RJ-45 Port 2 x Gigabit SFP Ports |
|---|---|
| Management Port | RJ-45 Port |
| Transmission Rate | 10/100/1000Mbps Supports Auto MDI/MDIX and Auto-Negotiation Supports 10BASE-T, 100BASE-TX, 1000BASE-T Ethernet |
| Standards | IEEE802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE802.3ab 1000BASE-T IEEE802.3z 1000 BASE-X ANSI/IEEE 802.3: Auto-Negotiation IEEE802.3x Flow Control |
| PoE Protocol | IEEE802.3af (Up to 15.4 W) IEEE802.3at (Up to 30 W) |
| Switching Capacity | 36 Gbps |
| Packet Forwarding | 26.79 Mpps |
| Transmission Method | Store-and-forward |
| MAC Address Table | 8K Entries |
| Packet Buffer Memory | 4.1 Mbits |
| CPU Memory | DDR3 128 MB |
| Flash Memory | 32 MB |
| PoE Ports | Ports 1–16 Support PoE Output (IEEE 802.3af/at, Up to 30 W per Port) |
| Power Budget | 350 W |
| LED Indicators | Per Port: Link/ACT, PoE Per Device: Power, SYS, RST |
| Dimensions | 320 × 180 × 44 mm |
| Housing | Metal |
| Power Input | AC 100–240 V, 50/60 Hz |
| Fan | One (1) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -10 to 70°C (14 to 158°F) |
| Operating Humidity | 10% to 90% (Non-Condensing) |
| Storage Humidity | 5% to 95% (Non-Condensing) |
| Lightning Protection | 6KV |
| Certifications | CE |
| Protocol Standard | IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (fiber) IEEE 802.3ad: Standard method for performing link aggregation IEEE 802.3x: flow control IEEE 802.1p: LAN Layer 2 QoS/CoS protocol for traffic priority (multicast filtering) IEEE 802.1d: STP Spanning tree IEEE 802.1s: MSTP Spanning tree IEEE 802.1w: RSTP Spanning tree IEEE 802.3af IEEE 802.3at |
| DHCP | DHCP Snooping |
| VLAN | 4K VLAN MAC VLAN, IP VLAN, Protocol VLAN VLAN translation |
| MAC Address Table (Software Features) | Comply the IEEE 802.1d standard MAC address learning and aging automatically Static, dynamic MAC ageing time |
| Security | Password protection Based on the port number, IP address, MAC address restrictions on user access HTTPS, SSL V3, TLS V1, SSH V1/V2 IP-MAC-PORT ternary binding IP source protection, DoS protection DHCP Snooping, DHCP attack protection 802.1X Port isolation CPU protection Mac Address Count Limit |
| POE management | POE power limit PoE port priority PoE power supply time period |
| Access control (ACL) | L2 (Layer 2) ~ L3 (Layer 3) packet filtering port mirroring, QoS re-marking |
| Mirror | Port base mirror support ingress, egress, both Support 1:1 and N:1 RSPAN |
| Quality of Service (QoS) | 8 port queues Port priority, 802.1p priority, DSCP priority SP, WRR, WFQ Priority scheduling algorithm |
| Spanning Tree | STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocol MSTP supports 64 instances Root bridge protection, TC protection, BPDU protection |
| Multicast | IGMP v1/v2 Snooping Fast leave mechanism Packet statistics, and unknown multicast discards |
| Storm suppression | Multicast suppression Broadcast suppression Unknown unicast suppression |
| Link aggregation | Static aggregation Dynamic aggregation IP, MAC, and hybrid load balancing modes Up to 8 aggregation groups |
| Discovery | LLDP(802.1ab) |
| Management and maintenance | Cloud management WEB network management (HTTP, SSL V3) CLI (Telnet, SSH V1/V2, local serial port) SNMP V1/V2 LLDP, RMON IP source protection, DoS protection CPU Monitoring, memory monitoring System log, grading warning Ping, Tracert detection, cable detection |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
