Gigabit Ports
Eight 2.5G PoE RJ45 ports, one 10G PoE RJ45 port and one 10G RJ45 port.

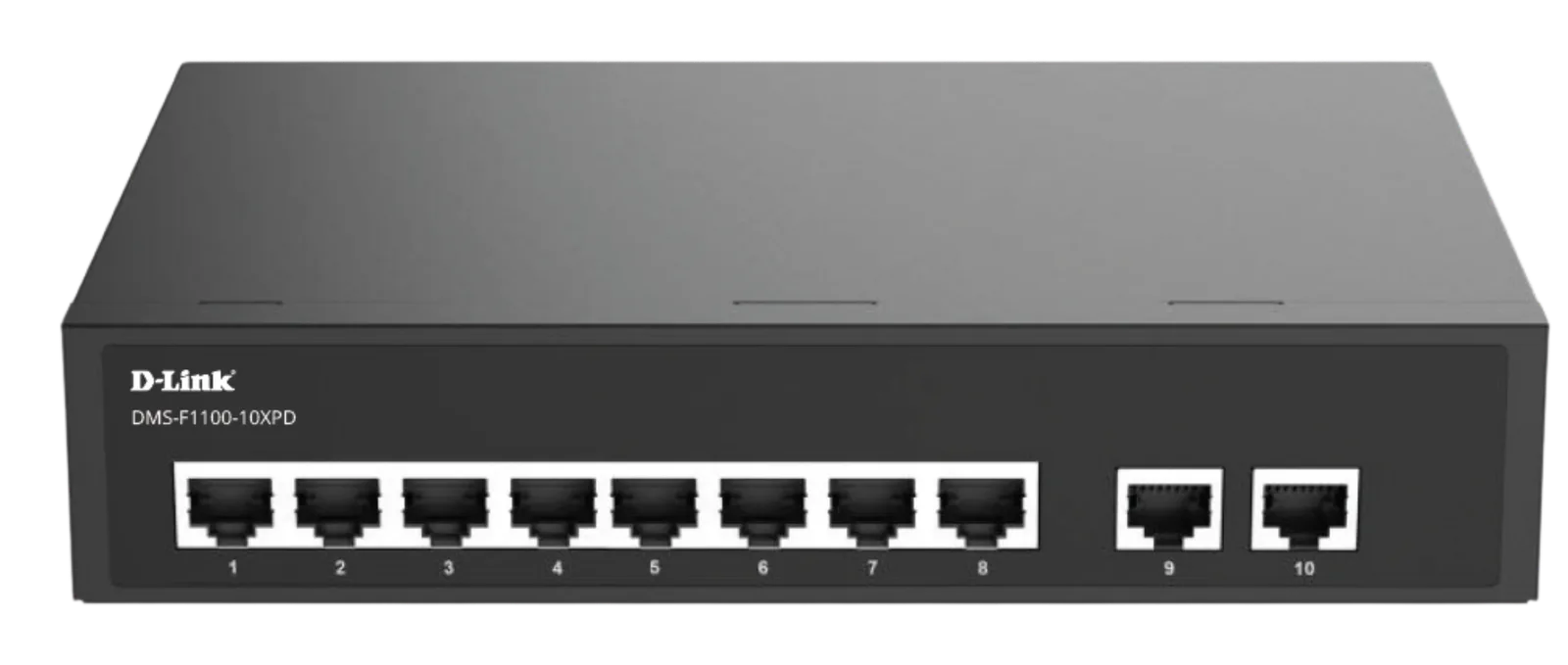

DMS-F1100-10XPD
10 Port 2.5G Multigigabit Cloud Managed PoE switch
- 8x100/1000/2500Mbps RJ45 ports + 2x10Gbps RJ45 port
- Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3x standards
- Support port auto-rotation (Auto MDI/MDIX)
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
- Support QoS data priority
- Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
- Support IEEE802.3bt standard, compatible with IEEE802.3af/at
- 2.5G port1-6 output power up to 30W, 2.5G port7-8 output power up to 90W, 10G RJ45 port9 output power up to 90W
Overview
90W PoE++, 300W Budget
Supports IEEE 802.3bt, compatible with 802.3af/at. Up to 30W on ports 1–6 and 90W on ports 7–9, with a 300W total PoE budget.
80Gbps Switching Capacity
Store-and-forward switching at 59.52Mpps, with a 16K-entry MAC address table and automatic aging.
Smart Managed
Web network management, D-Lite cloud management, LLDP and NTP/SNTP time management.
Network Protection
Storm control, loop prevention, STP/RSTP with edge port, and port mirroring for diagnostics.
Energy-Efficient Ethernet
IEEE 802.3az EEE support, with 1091.84 BTU/h maximum heat dissipation and a 785,576-hour MTBF.
DMS-F1100-10XPD
Specifications
| Network Interface | 8*10M/100M/1000M/2.5Gbps self-negotiating RJ45 POE ports 1*100M/1000M/2.5G/5G/10Gbps self-negotiating RJ45 POE port 1*100M/1000M/2.5G/5G/10Gbps self-negotiating RJ45 |
|---|---|
| Transmission Rate | 10/100/1000/2500Mbps Each port supports MDI / MDIX auto-flip and auto-negotiation Network interface: 10BASE-T or 100BASE-TX, 1000BASE-T,2.5GBASE-T, 5GBASE-T,10GBASE-T Ethernet RJ-45 port |
| Protocols and Standards | IEEE802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE802.3ab 1000BASE-T IEEE 802.3bz:2.5GBASE-T IEEE 802.3an 10G BASE-T ANSI/IEEE 802.3 NWay auto-negotiation IEEE802.3x Flow Control |
| PoE Protocol | IEEE802.3af (15.4W) IEEE802.3at (30W) IEEE802.3bt (90W) |
| Switching Capacity | 80Gbps |
| Transmission Method | Store-and-forward |
| MAC Address Table | 16K Entries |
| Packet Forwarding Ratio | 59.52Mpps |
| MAC Address Learning | Self-learning, auto-aging |
| LED Indicators | Network Link/Activity, POE, Power, SYS |
| Dimensions | 320*180*44mm |
| Power | 100–240V AC, 50/60 Hz |
| Power Supply | AC Built in |
| PoE Budget | 300W |
| Temperature | Operating: 0 to 40 °C (32 to 104 °F) Storage: -10 to 70 °C (14 to 158 °F) |
| Humidity | Operating: 10% to 90% non-condensing Storage: 5% to 95% non-condensing |
| MTBF | 785,576 hours |
| Max Heat Dissipation | 1091.84 BTU/h |
| Certifications | CE |
| Mounting Information | Desktop or rack-mount |
| Maximum Power Consumption (PoE enabled) | 320W |
| Maximum Power Consumption (PoE disabled) | 20W |
| Standby Power Consumption | 4W |
| Fans | 1 Fan |
| QoS | Port-based/802.1p/DSCP QoS 8 Priority Queues Priority Schedule Mode - WRR (Weighted Round Robin) Queue Weight Config |
| Bandwidth Control | Port-based rate limit |
| Storm Control | Multiple Control Modes (kbps/pps) Broadcast/Multicast/Unknown-Unicast Control |
| Link Aggregation | Static link aggregation |
| Loop Prevention | Loop prevention |
| Flow Control | 802.3x flow control |
| Spanning Tree Protocol | STP / RSTP / edge port |
| Mirroring | Port Mirroring One-to-One Many-to-One Ingress/Egress/Both |
| Port Statistics | Port Mirror Status Traffic Statistics |
| LLDP | 802.1ab LLDP |
| IGMP Snooping | IGMP v1/v2/v3 snooping Fast leave |
| VLAN | MTU VLAN Port-based VLAN QinQ 802.1Q tag VLAN - 1K VID |
| Management | WEB network management D-Lite cloud management LLDP |
| Time Management | NTP / SNTP |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
