Multi-Link (MLO)
Enhances throughput, minimizes latency, and boosts reliability for upcoming applications.

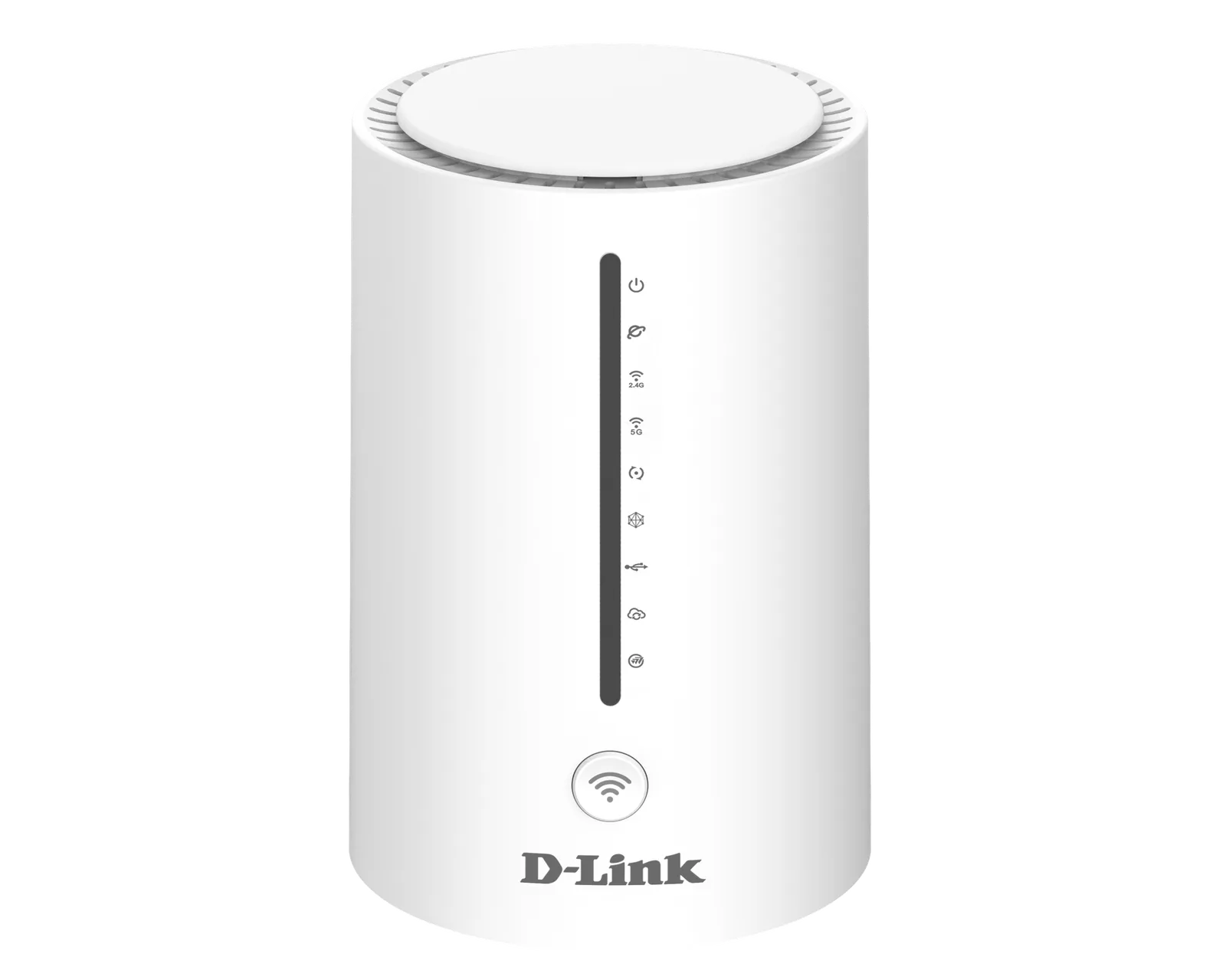

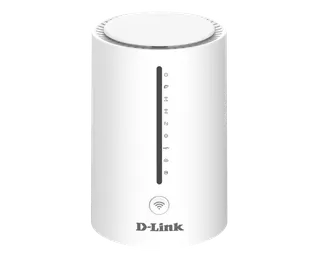

DIR-BE36
BE3600 Dual-Band Mesh Router
- Wi-Fi 7 Speed: Up to 3.6 Gbps¹ across two bands for 4K/8K streaming, AR/VR gaming and fast downloads.
- Wi-Fi 7 Technology: Multi-Link Operation, Multi-RUs, 4K-QAM and 160 MHz channels, with up to 2882 Mbps¹ on 5 GHz and 688 Mbps¹ on 2.4 GHz.
- 2.5G Port: 1x 2.5 Gbps WAN port and 3x 1 Gbps LAN ports with link aggregation, so a fast internet line is not held back at 1 Gbps.
- Enhanced Coverage: 4x internal high-power antennas, Wi-Fi optimization and beamforming for wider coverage and more stable connections.
- Mesh Compatibility: Works with compatible mesh routers to build one Wi-Fi network across your home, without drops as you move between rooms.
- Advanced Parental Controls: Protect your kids online with instant monitoring, content filters and customized settings for every connected device.
- Easy Setup and Use: Managing your network is now simpler than ever with the D-Link Mobile Connect Plus App.
Overview
4K-QAM
4K QAM modulation that can deliver 140% higher capacity.
2.5G Multi-Gig WAN
Unlock unparalleled device performance with lightning-fast data transfers through the 2.5GE port, harnessing the full potential of WiFi 7
Quad Core Processor
The powerful quad-core CPU ensures smooth operation, while its ability to connect to more devices across dual bands ensures efficient performance.
Secure Network
Help keep your network safer with Advanced Parental Controls, guest Wi-Fi, WPA3 encryption and IEC 62443-4-1 security certification.
Smart Roaming
Seamlessly connects your devices to the strongest signal as you move from room to room, eliminating the need for them to disconnect and reconnect.
OFDMA
Small data packets destined for multiple devices are transmitted together and never have to queue up again. Perfect for Smart Homes filled with bandwidth-hungry IoT devices battling for bandwidth.
Expandable Network
DIR-BE36 is a scalable solution. Add extra DIR-BE36 Points where you need more Coverage
DIR-BE36
Specifications
| Chipset | BCM6764+BCM53134O+EN8811HN |
|---|---|
| CPU frequency | Quad-Core, 2.0-GHz |
| Memory | 256MB 16-bit DDR3L |
| Flash | 128MB SPI NAND |
| Wi-Fi | 2T2R 2.4GHz 802.11b/g/n/ac/ax/be, 688Mbps¹ 2T2R 5GHz 802.11a/n/ac/ax/be, 2882Mbps¹ |

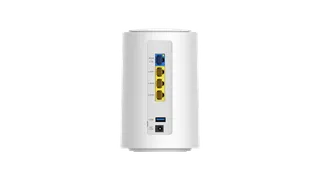

| Device Interfaces | 1 x RJ45 100M/1000M/2.5G WAN Ethernet 3 x RJ45 100M/1000M LAN Ethernet 1 x USB3.0 1 x Reset Button 1 x WPS Button |
| Wi-Fi Antenna | 2 x 3dBi Internal 2.4GHz antennas 2 x 3dBi Internal 5GHz antennas |
| Standard | 802.11b/g/n/ac/ax/be, 688Mbps¹ 2.4G 802.11a/n/ac/ax/be, 2882Mbps¹ 5G |
| Modulation schemes | OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM DSSS = DBPSK, DQPSK, CCK |
| Transfer Rate | HE20: up to 574Mbps 2.4G+5G HE40: up to 1147Mbps 2.4G+5G HE80: up to 1201Mbps 5G HE160: up to 2402Mbps 5G EHT20: up to 688.5Mbps 2.4G+5G EHT40: up to 1377Mbps 2.4G+5G EHT80: up to 1440Mbps 5G EHT160: up to 2880Mbps 5G |
| WAN Type | Static IP Dynamic IP PPPoE 802.1p & 802.1q VLAN tagging and priority bit |
| Security Protocol | WPA/WPA2 - Personal WPA2 - Personal WPA2/WPA3 - Personal WPA3 Only |
| Firewall | DoS Stateful Packet Inspection Anti-spoofing checking IP/MAC address filtering 1 x DMZ |
| Mesh | D-Link Wi-Fi Mesh |
| QoS | D-Link Intelligent QoS Technology |
| Power Saving | Target Wake Time (TWT) |
| Access Control | Advanced Parental Controls Guest zone |
| Dynamic DNS | No-IP DDNS Dyn DDNS |
| Protocols | IPv4 IPv6 |
| Operation Modes | Router mode Bridge mode Extender mode |
| VPN Pass-Through | L2TP IPSec Open VPN PPTP |
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -20°C ~ 90°C |
| Operating Humidity | 5%~95% (typical) |
| Power Supply | 12V/1.5A |
| Regulation Compliance | CE |
| Safety Regulations | UL |
| Green Standard | RoHS |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
