The DPN-BE19000GR is a Wi-Fi 7 BE19000 tri-band router with speeds up to 11.5 Gbps on 6GHz, dual 10G ports (10GE WAN and 10GE LAN), four Gigabit LAN ports, USB 3.0 and EasyMesh R6 for seamless whole-home mesh networking.
DPN-BE19000GR
BE19000 Tri-Band 10G Wi-Fi 7 Router
- Wi-Fi 7 BE19000: Tri-band speeds up to 11.5 Gbps (6GHz) with 320MHz channels, 4K QAM & MLO
- Dual 10G Ports: 1×10GE WAN + 1×10GE LAN plus 4×GE and USB 3.0
- Powerful CPU: High Performance Quad-core with 1GB RAM
- 6 High-Gain Antennas: Optimized 4x4/4x4/4x5 configurations for max coverage
- EasyMesh R6: Seamless whole-home mesh networking
- Advanced Security: OpenWrt OS, VPN, IPv6, dual image, TR-069
- User-Friendly: One-touch WPS/MESH, power switch, ambient LED, vertical design
Overview
Wi-Fi 7 · BE19000
BE19000 speed.
Ready for everything.
Your world moves fast.Now your Wi-Fi moves faster.
Wi-Fi 7
Without compromise. With Wi-Fi 7 and tri-band power, your connection keeps up. No slowdowns. No waiting. No limits.
Tri-band 802.11be
More speed where it matters
Maximum wireless signal rate: 6 GHz 11520 Mbps @ 320 MHz, 5 GHz 5760 Mbps @ 160 MHz, 2.4 GHz 1376 Mbps @ 40 MHz.
Dual 10G
Dual 10G ports.
Built for what's next.
Plug in your fastest devices.Unlock true multi-gig performance.Future-proof your entire setup.

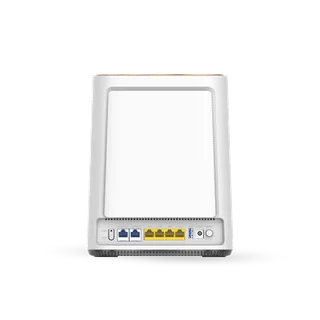

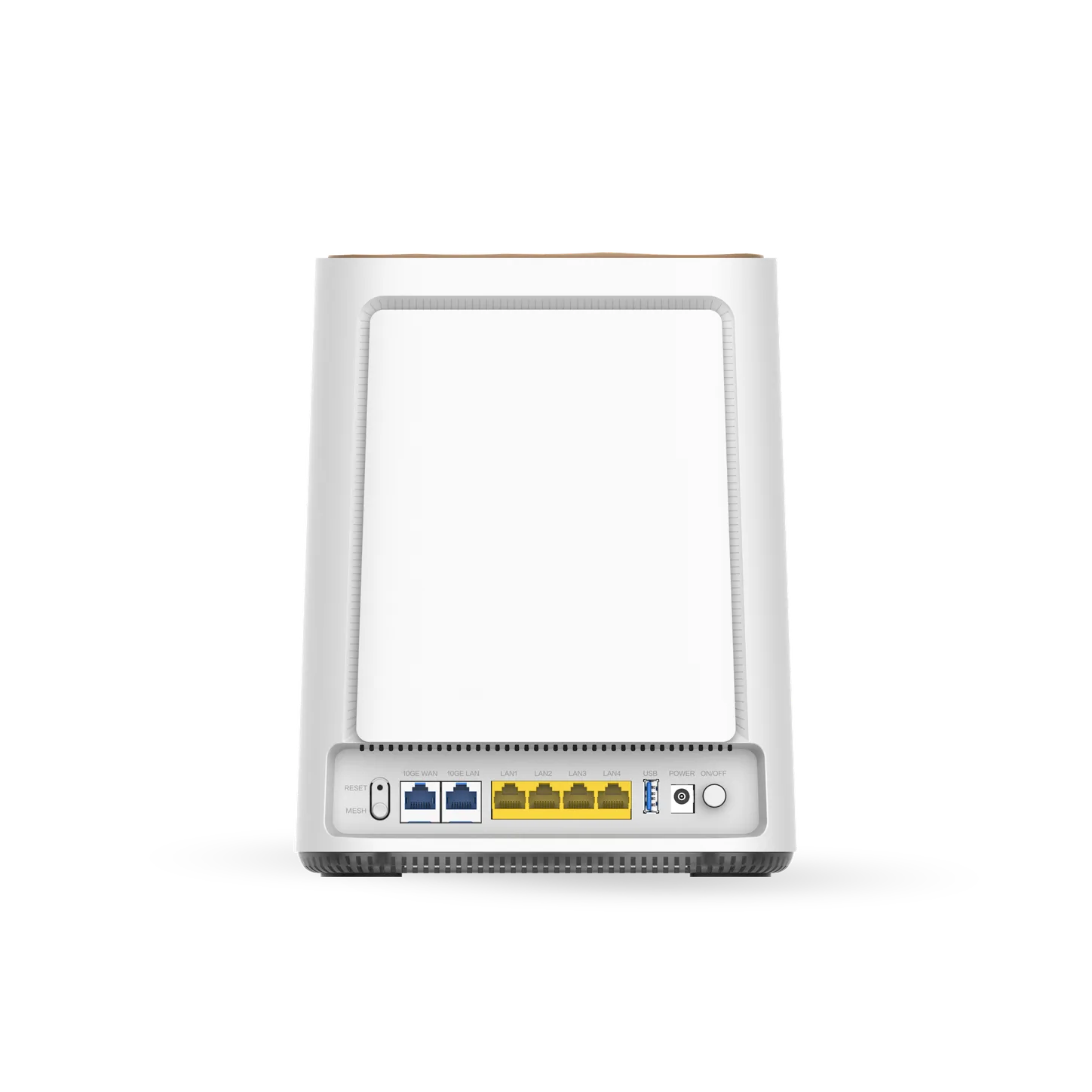

Reset
10G WAN
10G LAN
4x GE LAN
USB 3.0
Power / On-Off
Multi-Link Operation
Smarter connections. Faster responses. Lower latency.
Multi-Link Operation keeps your data moving across bands, across paths, across everything. Less lag. More flow. Exactly when you need it.
Whole-home coverage
Strong Wi-Fi in every room.
6 High-Gain AntennasOptimized 4x4/4x4/4x5 configurations for maximum coverage.
EasyMesh R6Create a seamless whole-home mesh network with compatible extenders.
Performance
Powerful quad-core CPU.
A high-performance quad-core processor with 1GB RAM keeps every band, port and device running at full speed.
4 coresCPU
1GBDDR RAM
512MBFlash
DPN-BE19000GR
Specifications
| CPU | MT7988AV |
|---|---|
| Flash | 512MB |
| DDR | 1GB |
| Wi-Fi Chipset | MT7996AV + MT7975N + MT7977iBN + MT7977iAN |
| Standard | 2.4 GHz: IEEE 802.11b/g/n/ax/be 5 GHz: IEEE 802.11a/n/ac/ax/be 6 GHz: IEEE 802.11ax/be |
| EasyMesh | WFA EasyMesh R6 |
| MIMO | 2.4 GHz: 4T4R MU-MIMO 5 GHz: 4T4R MU-MIMO 6 GHz: 4T5R MU-MIMO |
| Antenna | Internal Antennas |
| Data Rate | 2.4 GHz: Up to 1376 Mbps (802.11be @ 40MHz) 5 GHz: Up to 5760 Mbps (802.11be @ 160 MHz) 6 GHz: Up to 11520 Mbps (802.11be @ 320 MHz) |
| WAN | 1 × 10GE RJ45 Port |
| LAN | 1 × 10GE RJ45 Port + 4 × GE RJ45 Ports |
| USB | 1 × USB 3.0 |
| LED | Multiple Status LEDs (Green) 1 × Ambient LED (Blue) at Bottom |
| Button | MESH (WPS), RESET, Power ON/OFF |
| Power Input | 12V / 3A DC Input |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
