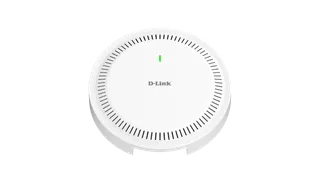

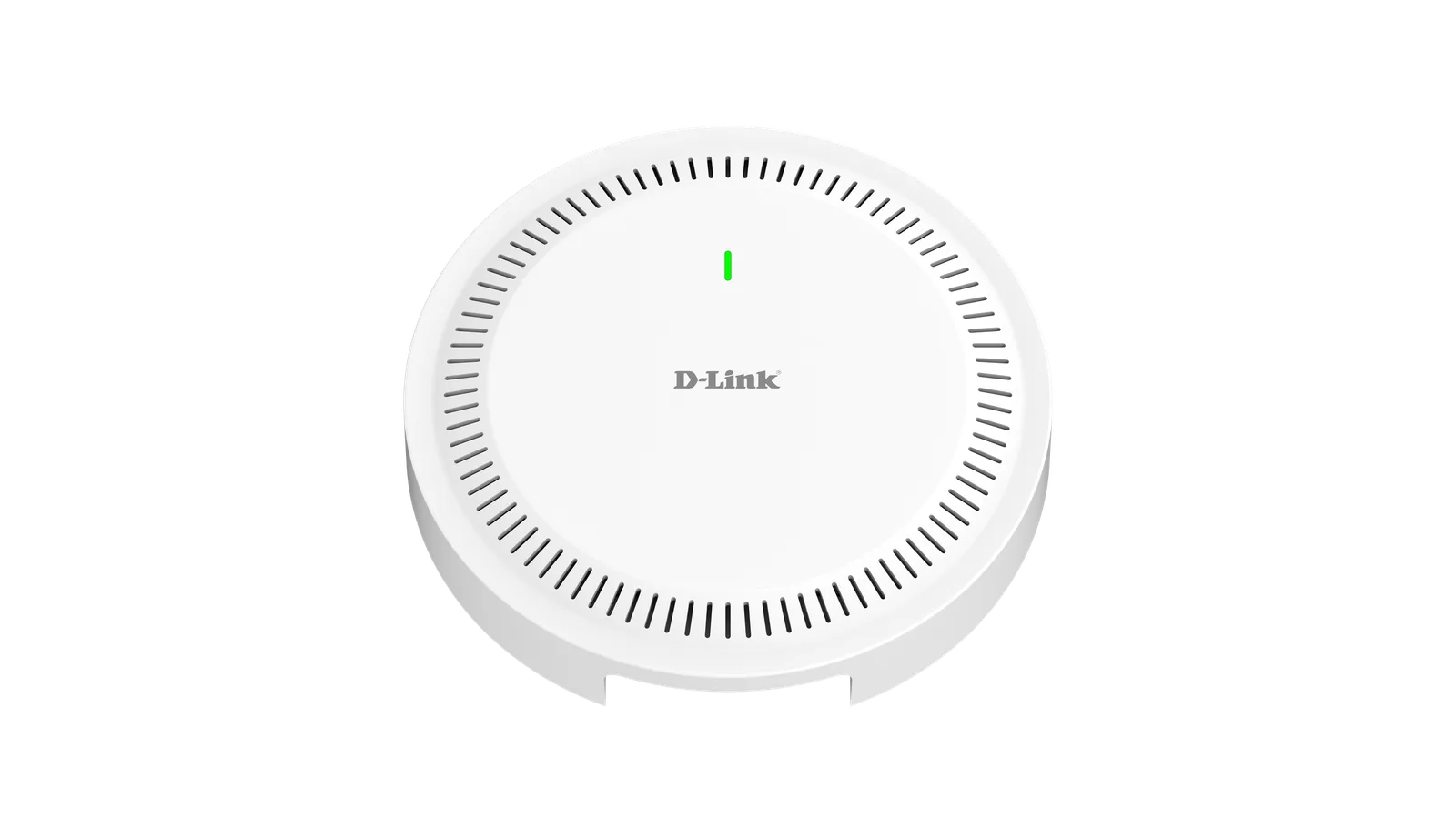

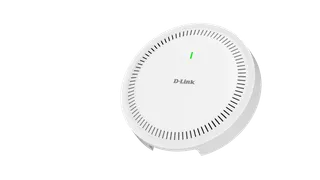

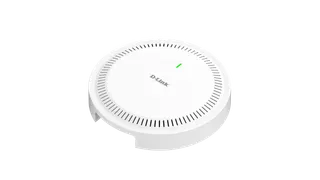

The DLA-X301 is a D-Lite Cloud-Managed AX3000 Access Point (AP). It is the best-in-class indoor access point designed specifically for enterprise environments. Featuring 802.11ax Wi-Fi 6 concurrent on both 2.4GHz and 5GHz bands, the DLA-X301 D-Lite Cloud-Managed AX3000 Access Point offers high combined data rates to wireless clients. It provides lightning-fast access to bandwidth intensive applications such as data, voice and video streaming, even in highly congested environments.
DLA-X301
AX3000 Wi-Fi 6 Dual-Band D-Lite Cloud Access Point
- Cloud Management
- Zero-Touch Deployment
- Intuitive Interface
- Unlimited Scalability
- Band Steering
- Bandwidth Optimization
- Auto Channel Management
- Authentication via Customizable Captive Portal, 802.1x and RADIUS Server
- Social Login for Guest Wi-Fi Access
- End-to-End Encryption
- Event Log and Change Log
- Over-the-Air Firmware Upgrades
- Real Time Traffic Reporting & Analytics
- Automated Monitoring & Alerts
- Multi-Tenant & Role-Based Administration
- Map View
- AI Diagnostics
- Supports 500+ Concurrent Wi-Fi Client Devices
Overview
D-Lite Cloud Management
The user can access D-Lite Cloud from the web to manage and configure off-site locations. The internet traffic does not pass through the cloud, compliant with the latest data protection and privacy regulations. Security is assured with an out-of-band, SSL-encrypted management plane backed with a 99.99% uptime service level agreement. If the Cloud service is down this will not affect the service of local locations.
Solution Benefits
- Easy-to-Configure APs and Switches: Users no longer have to configure each access point individually; D-Lite Cloud offers an intuitive cloud interface to configure your access points in bulk or individually, ideal for lean IT businesses. Settings are saved on the cloud and pushed to the devices. The D-Lite cloud-managed switch enables lean IT to easily provision, manage and even troubleshoot their entire network. Port configurations can be easily configured individually or performed in a batch.
- Easy & Rapid AP & Switch Deployment: After pre-configuring the AP or Switch towards a certain profile, the AP & Switch can then be quickly deployed remotely and be up and running without configuration at the target site.
- Unlimited Scalability: With D-Lite Cloud, the controller is managed in the cloud from a single centralized interface and no longer faces hardware scalability limitations commonly found in traditional on-premise controllers. D-Lite Cloud supports unlimited access points and switches, ideal for small to medium-sized businesses.
- Multi-Site Management: From the centralized interface, IT professionals and System Integrators can manage multiple remote sites with features including creating accounts, generating reports, and remotely installing, managing and monitoring the wireless and wired infrastructure for multiple users – all with minimal commitment in terms of training time, IT resources and capital.
Intuitive Dashboard
An Intuitive and Comprehensive Dashboard to Configure and Monitor your Network
- Online and Offline Devices
- Number of Clients
- Radio Utilization View
- Client Traffic and Analysis view
- Device Traffic and Analysis view
- CPU & Memory Usage
- Alert Notifications
D-Lite App
D-Lite Cloud offers an APP to configure and monitor your network on the go.
- Quick Setup via QR Code
- Real-Time Monitoring
- Comprehensive Configurations
802.11ax Wi-Fi 6
- Wi-Fi 6 AP provides high performance connectivity
- Up to 3 Gbps combined throughput²
- Increased client device battery life
- Faster speeds on both 2.4 GHz and 5 GHz bands
- Optimized encoding, packing more data into the same radio waves
Best-in-class Built for Enterprise AP
- Powerful management, monitoring and troubleshooting functionality with D-Lite Cloud
- MU-MIMO
- IEEE 802.3az Energy-Efficient Ethernet (EEE)
- Integrated Self Cluster Mode
- Remote access via cloud
- Allows for a high number of concurrent users
Power over Ethernet (PoE)
- Supports IEEE 802.3at PoE
- Convenience of using one cord for both power and Internet access
- Reduces installation and energy expenses
- Flexibility to install the DLA-X301 in places that don't have access to electrical infrastructure, such as the ceiling
Enterprise Security
- 192-bit Enterprise and 128-bit Personal encryption
- SSID/Guest/Station Isolation
- IP/MAC address filtering
- Captive Portal (Google, E-mail auth, Self reg.)
- Supports RADIUS client and Cipher negotiation
- Supports External Captive Portal and walled garden
DLA-X301
Specifications
| Interfaces | IEEE 802.11ax Wi-Fi 6, 1 x 10/100/1000 Mbps Ethernet PoE Port, 1 x 10/100/1000 Mbps Ethernet Port |
|---|---|
| Standards | IEEE 802.11a/b/n/g/ac/ax, IEEE 802.3az Energy-Efficient Ethernet (EEE), IEEE 802.3at Power over Ethernet (PoE), IEEE 802.11h(DFS), IEEE 802.3i/u/ab, IEEE 802.3x Flow Control, IEEE 802.11e(WMM), IEEE 802.11k/v/r |
| LEDs | LED: Power/Cloud |
| Antenna | Internal omni-directional Wi-Fi antennas, 2 x 3 dBi 2.4GHz, 2 x 3 dBi 5GHz |
| Maximum Output Power | 2.4 GHz: 23 dBm, 5 GHz: 23 dBm |
| Data Signal Rate | 2.4 GHz: Up to 574 Mbps², 5 GHz: Up to 2402 Mbps² |
| Frequency Bandwidth | 2.4 GHz: 20/40 MHz, 5GHz: 20/40/80/160 MHz |
| Modulation Schemes | OFDM - BPSK,QPSK, 16-QAM, 64-QAM 256-QAM 1024-QAM DSSS - DBPSK, DQPSK, CCK |
| Security Features | 192-bit Enterprise encryption, Latest 802.11 128-bit AES with SAE, 128-bit Enterprise encryption, 802.11 128-bit AES, MAC address filtering, RADIUS server authentication, SSID isolation, Guest isolation, Captive portal, Station isolation |
| Maximum SSIDs | Supports up to 16 SSIDs per device Up to 8 SSIDs per wireless band |
| Dimensions | 200.6*200.6*40mm |
| Weight | Without Mount: 491g |
| Power Input | IEEE 802.3at Power over Ethernet (PoE) on LAN 1 Power adapter: 12 V DC, 1.5 A |
| Power Consumption | PoE: <12 W Power adapter: <12 W |
| Temperature | Operating: 0 to 40 °C Storage: -30 to 70 °C |
| Humidity | Operating: 5% to 95% non-condensing Storage: 5% to 95% non-condensing |
| Mean Time Between Failure (MTBF) | >400,000 hours |
| Mounting Options | Ceiling mount, Wall mount, Desktop (horizontal) |
| Certifications | CE Class B, FCC Class B, UL-2043, IC Class B |
| Network Management | Web (HTTP/HTTPs), D-Lite Cloud Management, dCloud App Management, Stand-alone Mode, AP Cluster Management |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
