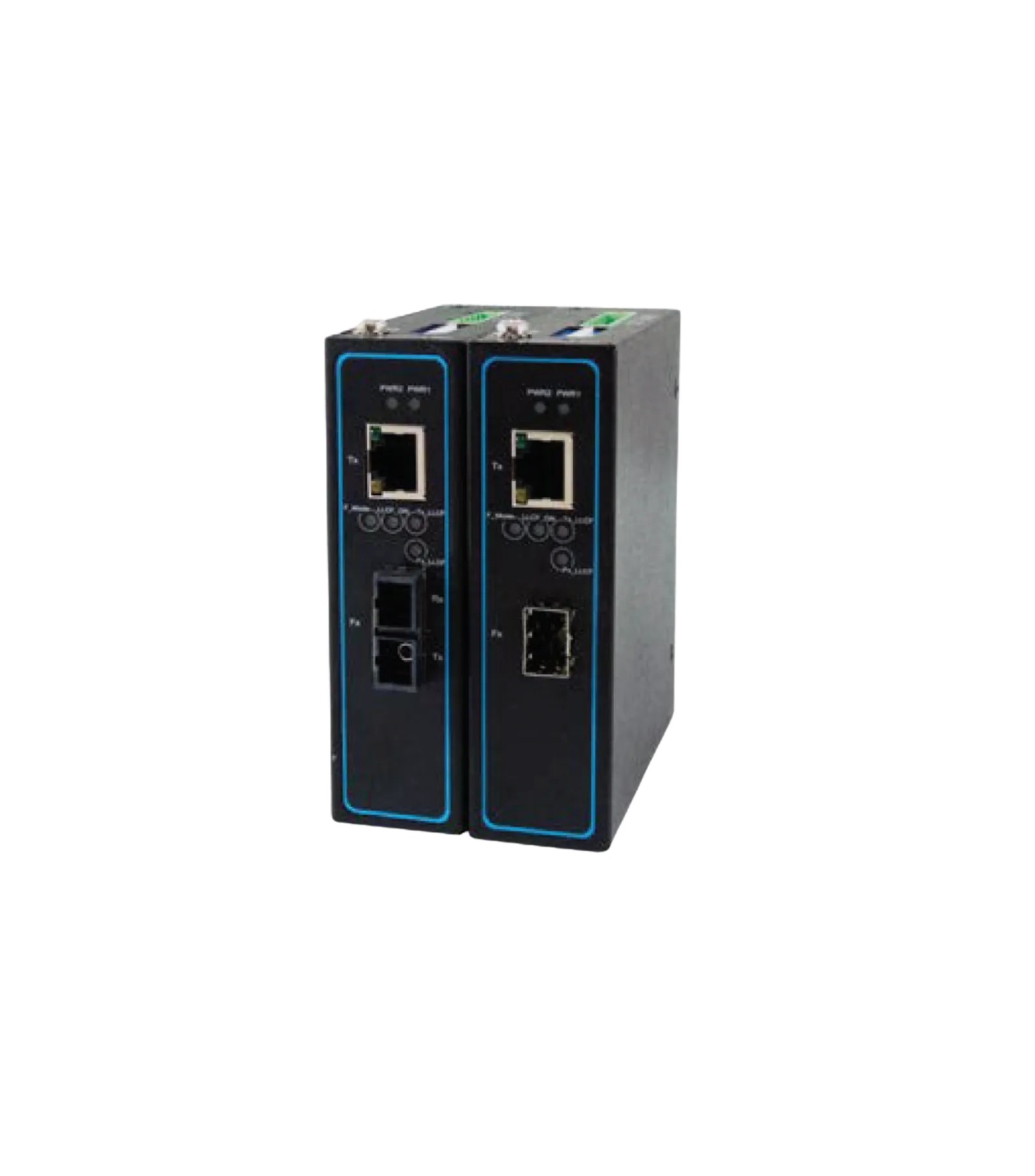

| Description | 100BaseT(X) to 100BaseFX Media Converter, Multi-mode, SC connector | 100BaseT(X) to 100BaseFX Media Converter, Single mode, SC connector |
|---|
| Standard | IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X), 100BaseFX | IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X), 100BaseFX |
|---|
| RJ45 Ports | 10/100BaseT(X) | 10/100BaseT(X) |
|---|
| Fiber Ports | 100BaseFX (SC connector) | 100BaseFX (SC connector) |
|---|
| LED Indicators | PWR, SPD, TX_LINK/ACT, TX_FDX/COL, FX_LINK/ACT, FX_FDX/COL | PWR, SPD, TX_LINK/ACT, TX_FDX/COL, FX_LINK/ACT, FX_FDX/COL |
|---|
| DIP Switch | TX Duplex mode, FX Duplex mode, Speed mode, LFP, Auto Negotiation | TX Duplex mode, FX Duplex mode, Speed mode, LFP, Auto Negotiation |
|---|
| Input Voltage | 6-48 VDC | 6-48 VDC |
|---|
| Input Current | 0.5A max, 6 VDC | 0.5A max, 6 VDC |
|---|
| Connection | Removable 3-pin Screw Terminal Block | Removable 3-pin Screw Terminal Block |
|---|
| Reverse Polarity Protection | Present | Present |
|---|
| Housing | Metal, IP30 protection | Metal, IP30 protection |
|---|
| Dimensions (W x H x D) | 32 x 90 x 110 mm (1.26 x 3.54 x 4.33 in) | 32 x 90 x 110 mm (1.26 x 3.54 x 4.33 in) |
|---|
| Weight | 510g | 510g |
|---|
| Installation | DIN-Rail mounting, wall mounting (optional) | DIN-Rail mounting, wall mounting (optional) |
|---|
| Operating Temperature | -10°C ~ 70°C (14°F ~ 158°F) | -10°C ~ 70°C (14°F ~ 158°F) |
|---|
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) | -40°C ~ 85°C (-40°F ~ 185°F) |
|---|
| Ambient Relative Humidity | 5 to 95%, 55°C (non-condensing) | 5 to 95%, 55°C (non-condensing) |
|---|
| Mode | Multi-mode | Single-mode |
|---|
| Distance | 2Km | 30Km |
|---|
| Bit Rate (Mbps) | 155 | 155 |
|---|
| Wavelength (nm) | 1310 (LED) | 1310 (FP) |
|---|
| Application | Fast Ethernet / OC3 | S1.1 / Fast Ethernet |
|---|
| TX Power (dBm) | -14~-20 | -8~-15 |
|---|
| RX Sens. (dBm) | <-31 | <-34 |
|---|
| EMI | FCC Part15, CISPR (EN55032) Class A | FCC Part15, CISPR (EN55032) Class A |
|---|
| EMS | EN61000-4-2 (ESD) Level 3, Criteria B
EN61000-4-3 (RS) Level 2, Criteria A
EN61000-4-4 (EFT) Level 3, Criteria A
EN61000-4-5 (Surge) Level 3, Criteria B/A
EN61000-4-6 (CS) Level 2, Criteria A | EN61000-4-2 (ESD) Level 3, Criteria B
EN61000-4-3 (RS) Level 2, Criteria A
EN61000-4-4 (EFT) Level 3, Criteria A
EN61000-4-5 (Surge) Level 3, Criteria B/A
EN61000-4-6 (CS) Level 2, Criteria A |
|---|
| Shock | MIL-STD-810F Method 516.5 | MIL-STD-810F Method 516.5 |
|---|
| Drop | MIL-STD-810F Method 516.5 | MIL-STD-810F Method 516.5 |
|---|
| Vibration | MIL-STD-810F Method 514.5 C-1 & C-2 | MIL-STD-810F Method 514.5 C-1 & C-2 |
|---|
| RoHS | Yes | Yes |
|---|
| MTBF | 823877 hrs (94.04 Years) (Data base: MIL-HDBK-217F, GB 25°C) | 823877 hrs (94.04 Years) (Data base: MIL-HDBK-217F, GB 25°C) |
|---|
| Warranty Period | 5 Year | 5 Year |
|---|
