D-Link

DMC SERIES

Media Converters and Chassis

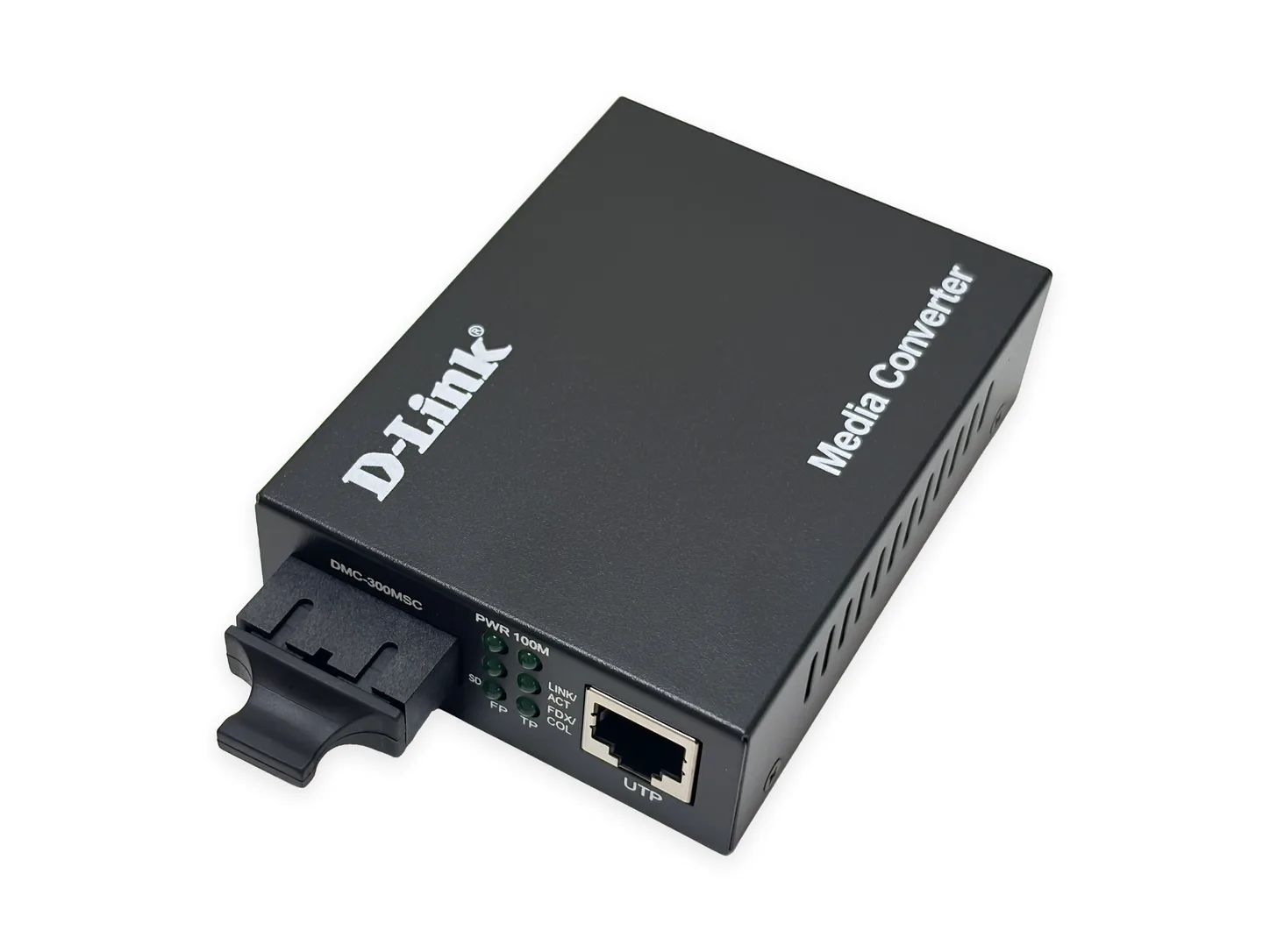

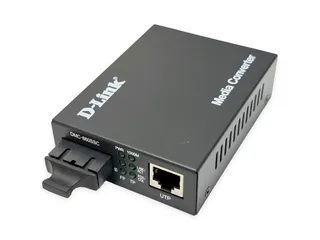

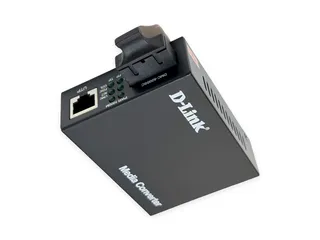

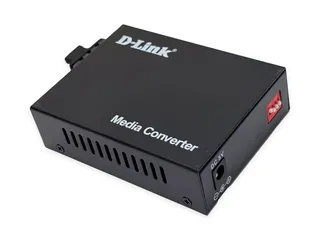

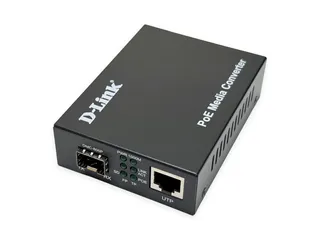

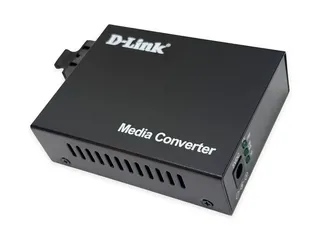

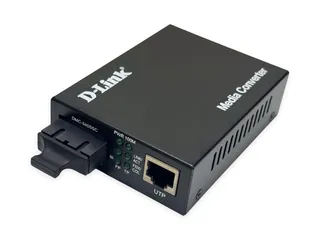

  • One channel 10/100/1000 Mbps Ethernet to 1000 Mbps fibre optic conversion
  • One/Two channel 10/100 Mbps Ethernet to 100 Mbps fibre optic conversion
  • Plug-and-Play, no additional software required
  • Can be used standalone or installed in the DMC-1014 chassis
  • Half or full-duplex operation
  • Auto-MDI/MDIX
  • Mount up to 14 media converters in the specially designed DMC-1014 Media Converter Chassis
  • Dedicated power supply for powering the chassis and all installed media converters
  • Hot-swappable when mounted
  • Front panel LEDs for instant status feedback
Where to buyDownload datasheetView specifications

Overview

The DMC Series Media Converters and Chassis are a set of standalone Plug-and-Play media converters that offer increased flexibility when expanding a new or existing network. The DMC Series provides network administrators with a wide variety of solutions to expand networks over a greater distance while maintaining compatibility with existing network equipment.

Meanwhile, the DMC-1014 Media Converter Chassis provides a practical solution for installing multiple media converters in one convenient chassis. This both saves space and optimises cable placement.

Flexible Media Conversion

Media converters convert signals that are transmitted from one type of media to another so that they can be transmitted over a different type of media. This series of media converters converts copper Ethernet to a fibre optic connection, at 10/100 Mbps or 1000 Mbps depending on the model. This allows you to expand your network by connecting longer distance, high-speed fibre optic cables between devices that are otherwise connected with short distance Ethernet cables, such as Cat. 6 twisted-pair cables.

The DMC Series product lineup includes a wide range of independent media converters as well as the DMC-1014 Media Converter Chassis, capable of housing up to 14 media converters. You can start with a single media converter, equipped with its own housing and AC power supply. As network requirements grow, you can mount the DMC-1014 in your equipment rack and conveniently install all your media converters into the chassis. The housing of each media converter can be easily removed, allowing it to be installed into the chassis. The installed converter module is then powered by the chassis’ power supply.

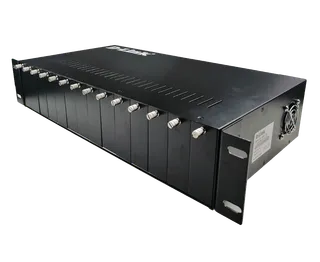

DMC-1014 Media Converter Chassis

  • Diagnostic LEDs: Power, Fan
  • Weight: 6.5 kg
  • Power: Input AC 90V to 230V, or DC 48V; Output DC 5V, 12A
  • Maximum Power Consumption: 120 W
  • Temperature: Operating -10 to 60 °C; Storage -20 to 85 °C
  • Humidity: 5% to 95%
  • Dimensions: 485 x 231 x 90 mm (19 inches 2U)
  • Certifications: FCC, VCCI, CE

DMC SERIES

Specifications

Specification
SpecificationDMC-300MSCDMC-520SSCDMC-540SSCDMC-560SSCDMC-580SSCDMC-300MSC-2DMC-520SSC-2DMC-700MSCDMC-805PDMC-805DMC-810SSCDMC-820SSCDMC-840SSCDMC-860SSCDMC-880SSCDMC-1910SRDMC-1910STDMC-905
Number of Ports1 x 10/100BASE-TX RJ-45 port 1 x 100BASE-FX SC port1 x 10/100BASE-TX RJ-45 port 1 x 100BASE-FX SC port1 x 10/100BASE-TX RJ-45 port 1 x 100BASE-FX SC port1 x 10/100BASE-TX RJ-45 port 1 x 100BASE-FX SC port1 x 10/100BASE-TX RJ-45 port 1 x 100BASE-FX SC port2 x 10/100BASE-TX RJ-45 port 1 x 100BASE-FX SC port2 x 10/100BASE-TX RJ-45 port 1 x 100BASE-FX SC port1 x 10/100/1000BASE-T RJ-45 port 1 x 1000BASE-SX/LX SC port1 x 10/100/1000BASE-T RJ-45 port PoE 1 x 1000BASE-SX/LX LC SFP slot1 x 10/100/1000BASE-T RJ-45 port 1 x 1000BASE-SX/LX LC SFP slot1 x 10/100/1000BASE-T RJ-45 port 1 x 1000BASE-SX/LX SC port1 x 10/100/1000BASE-T RJ-45 port 1 x 1000BASE-SX/LX SC port1 x 10/100/1000BASE-T RJ-45 port 1 x 1000BASE-SX/LX SC port1 x 10/100/1000BASE-T RJ-45 port 1 x 1000BASE-SX/LX SC port1 x 10/100/1000BASE-T RJ-45 port 1 x 1000BASE-ZX SC port1 x 10/100/1000BASE-T RJ-45 port 1 x 1000BASE-LX bidirectional SC port1 x 10/100/1000BASE-T RJ-45 port 1 x 1000BASE-LX bidirectional SC port1 x 10G/5G/2.5G/1G RJ-45 port 1 x 10GBASE-X SFP+ slot
StandardsIEEE 802.3 for 10BASE-T/F IEEE 802.3u for 100BASE-TX/FXIEEE 802.3 for 10BASE-T/F IEEE 802.3u for 100BASE-TX/FXIEEE 802.3 for 10BASE-T/F IEEE 802.3u for 100BASE-TX/FXIEEE 802.3 for 10BASE-T/F IEEE 802.3u for 100BASE-TX/FXIEEE 802.3 for 10BASE-T/F IEEE 802.3u for 100BASE-TX/FXIEEE 802.3 for 10BASE-T/F IEEE 802.3u for 100BASE-TX/FXIEEE 802.3 for 10BASE-T/F IEEE 802.3u for 100BASE-TX/FXIEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-SX/LXIEEE 802.3ab for 1000BASE-T; IEEE 802.3at/af for PoE IEEE 802.3z for 1000BASE-SX/LXIEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-SX/LXIEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-SX/LXIEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-SX/LXIEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-SX/LXIEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-SX/LXIEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-ZXIEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-LXIEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-LXIEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3ae 10Gbps Ethernet IEEE 802.3x full-duplex flow control
Duplex ModeHalf-duplex/full-duplexHalf-duplex/full-duplexHalf-duplex/full-duplexHalf-duplex/full-duplexHalf-duplex/full-duplexHalf-duplex/full-duplexHalf-duplex/full-duplexFull-duplexFull-duplexFull-duplexFull-duplexFull-duplexFull-duplexFull-duplexFull-duplexFull-duplexFull-duplexHalf-duplex/full-duplex
Media Types10BASE-T: 2-pair Cat. 3/4/5/5e, Unshielded Twisted Pair (UTP) (up to 100 m) 10/100BASE-TX: 2-pair Cat. 5/5e, Unshielded Twisted Pair (UTP) (up to 100 m) 100BASE-FX: Multi-mode fibre optic cable with SC connector (up to 2 km)10BASE-T: 2-pair Cat. 3/4/5/5e, Unshielded Twisted Pair (UTP) (up to 100 m) 10/100BASE-TX: 2-pair Cat. 5/5e, Unshielded Twisted Pair (UTP) (up to 100 m) 100BASE-FX: Single-mode fibre optic cable with SC connector (up to 20 km)10BASE-T: 2-pair Cat. 3/4/5/5e, Unshielded Twisted Pair (UTP) (up to 100 m) 10/100BASE-TX: 2-pair Cat. 5/5e, Unshielded Twisted Pair (UTP) (up to 100 m) 100BASE-FX: Single-mode fibre optic cable with SC connector (up to 40 km)10BASE-T: 2-pair Cat. 3/4/5/5e, Unshielded Twisted Pair (UTP) (up to 100 m) 10/100BASE-TX: 2-pair Cat. 5/5e, Unshielded Twisted Pair (UTP) (up to 100 m) 100BASE-FX: Single-mode fibre optic cable with SC connector (up to 60 km)10BASE-T: 2-pair Cat. 3/4/5/5e, Unshielded Twisted Pair (UTP) (up to 100 m) 10/100BASE-TX: 2-pair Cat. 5/5e, Unshielded Twisted Pair (UTP) (up to 100 m) 100BASE-FX: Single-mode fibre optic cable with SC connector (up to 80 km)10BASE-T: 2-pair Cat. 3/4/5/5e, Unshielded Twisted Pair (UTP) (up to 100 m) 10/100BASE-TX: 2-pair Cat. 5/5e, Unshielded Twisted Pair (UTP) (up to 100 m) 100BASE-FX: Multi-mode fibre optic cable with SC connector (up to 2 km)10BASE-T: 2-pair Cat. 3/4/5/5e, Unshielded Twisted Pair (UTP) (up to 100 m) 10/100BASE-TX: 2-pair Cat. 5/5e, Unshielded Twisted Pair (UTP) (up to 100 m) 100BASE-FX: Single-mode fibre optic cable with SC connector (up to 20 km)1000BASE-T: 4-pair Cat. 5, Shielded Twisted Pair (STP) (up to 100 m) 1000BASE-SX: Multi-mode fibre optic cable with SC connector (up to 550 m)1000BASE-T: 4-pair Cat. 5, Shielded Twisted Pair (STP) (up to 100 m) 1000BASE-LX: Single-mode fibre optic cable with SC connector (up to 2 km)1000BASE-T: 4-pair Cat. 5, Shielded Twisted Pair (STP) (up to 100 m) 1000BASE-SX/LX: Depends on transceiver1000BASE-T: 4-pair Cat. 5, Shielded Twisted Pair (STP) (up to 100 m) 1000BASE-LX: Single-mode fibre optic cable with SC connector (up to 10 km)1000BASE-T: 4-pair Cat. 5, Shielded Twisted Pair (STP) (up to 100 m) 1000BASE-LX: Single-mode fibre optic cable with SC connector (up to 20 km)1000BASE-T: 4-pair Cat. 5, Shielded Twisted Pair (STP) (up to 100 m) 1000BASE-LX: Single-mode fibre optic cable with SC connector (up to 40 km)1000BASE-T: 4-pair Cat. 5, Shielded Twisted Pair (STP) (up to 100 m) 1000BASE-LX: Single-mode fibre optic cable with SC connector (up to 60 km)1000BASE-T: 4-pair Cat. 5, Shielded Twisted Pair (STP) (up to 100 m) 1000BASE-ZX: Single-mode fibre optic cable with SC connector (up to 80 km)1000BASE-T: 4-pair Cat. 5, Shielded Twisted Pair (STP) (up to 100 m) 1000BASE-LX: Single-mode fibre optic cable with SC connector (up to 20 km)1000BASE-T: 4-pair Cat. 5, Shielded Twisted Pair (STP) (up to 100 m) 1000BASE-LX: Single-mode fibre optic cable with SC connector (up to 20 km)10G: Cat 6A/Cat 7 5G: Cat 6/Cat 6A/Cat 7 1G/2.5G: Cat 5e/Cat 6/Cat 6A/Cat 7 UTP cable (100 meters max.) 10GBASE-LR/SR: 50/125um or 62.5/125um multi-mode/single-mode fiber optic cable, cable length depends on SFP transceiver
Media Exchange InterfaceAuto-MDI/MDIXAuto-MDI/MDIXAuto-MDI/MDIXAuto-MDI/MDIXAuto-MDI/MDIXAuto-MDI/MDIXAuto-MDI/MDIXAuto-MDI/MDIXAuto-MDI/MDIXAuto-MDI/MDIXAuto-MDI/MDIXAuto-MDI/MDIXAuto-MDI/MDIXAuto-MDI/MDIXAuto-MDI/MDIXAuto-MDI/MDIXAuto-MDI/MDIXAuto-MDI/MDIX
Transmission ModeStore-and-forwardStore-and-forwardStore-and-forwardStore-and-forwardStore-and-forwardStore-and-forwardStore-and-forwardStore-and-forwardStore-and-forwardStore-and-forwardStore-and-forwardStore-and-forwardStore-and-forwardStore-and-forwardStore-and-forwardStore-and-forwardStore-and-forwardStore-and-forward
Forwarding RateFull wire-speed forwarding rateFull wire-speed forwarding rateFull wire-speed forwarding rateFull wire-speed forwarding rateFull wire-speed forwarding rateFull wire-speed forwarding rateFull wire-speed forwarding rateFull wire-speed forwarding rateFull wire-speed forwarding rateFull wire-speed forwarding rateFull wire-speed forwarding rateFull wire-speed forwarding rateFull wire-speed forwarding rateFull wire-speed forwarding rateFull wire-speed forwarding rateFull wire-speed forwarding rateFull wire-speed forwarding rateFull wire-speed forwarding rate
AC Input5 V/1 A external power adapter5 V/1 A external power adapter5 V/1 A external power adapter5 V/1 A external power adapter5 V/1 A external power adapter5 V/1 A external power adapter5 V/1 A external power adapter5 V/1 A external power adapter47-57 V DC external power adapter5 V/1 A external power adapter5 V/1 A external power adapter5 V/1 A external power adapter5 V/1 A external power adapter5 V/1 A external power adapter5 V/1 A external power adapter5 V/1 A external power adapter5 V/1 A external power adapter12 V DC external power adapter
TemperatureOperating: 0 °C to 60 °C Storage: -20 °C to 70 °COperating: 0 °C to 60 °C Storage: -20 °C to 70 °COperating: 0 °C to 60 °C Storage: -20 °C to 70 °COperating: 0 °C to 60 °C Storage: -20 °C to 70 °COperating: 0 °C to 60 °C Storage: -20 °C to 70 °COperating: 0 °C to 60 °C Storage: -20 °C to 70 °COperating: 0 °C to 60 °C Storage: -20 °C to 70 °COperating: 0 °C to 60 °C Storage: -20 °C to 70 °COperating: 0 °C to 60 °C Storage: -20 °C to 70 °COperating: 0 °C to 60 °C Storage: -20 °C to 70 °COperating: 0 °C to 60 °C Storage: -20 °C to 70 °COperating: 0 °C to 60 °C Storage: -20 °C to 70 °COperating: 0 °C to 60 °C Storage: -20 °C to 70 °COperating: 0 °C to 60 °C Storage: -20 °C to 70 °COperating: 0 °C to 60 °C Storage: -20 °C to 70 °COperating: 0 °C to 60 °C Storage: -20 °C to 70 °COperating: 0 °C to 60 °C Storage: -20 °C to 70 °COperating: 0 °C to 60 °C Storage: -20 °C to 70 °C
Humidity5% to 90% RH, non-condensing5% to 90% RH, non-condensing5% to 90% RH, non-condensing5% to 90% RH, non-condensing5% to 90% RH, non-condensing5% to 90% RH, non-condensing5% to 90% RH, non-condensing5% to 90% RH, non-condensing5% to 90% RH, non-condensing5% to 90% RH, non-condensing5% to 90% RH, non-condensing5% to 90% RH, non-condensing5% to 90% RH, non-condensing5% to 90% RH, non-condensing5% to 90% RH, non-condensing5% to 90% RH, non-condensing5% to 90% RH, non-condensing5% to 90% RH, non-condensing
Dimensions95 x 70 x 26 mm95 x 70 x 26 mm95 x 70 x 26 mm95 x 70 x 26 mm95 x 70 x 26 mm95 x 70 x 26 mm95 x 70 x 26 mm95 x 70 x 26 mm95 x 70 x 26 mm95 x 70 x 26 mm95 x 70 x 26 mm95 x 70 x 26 mm95 x 70 x 26 mm--95 x 70 x 26 mm95 x 70 x 26 mm-
Fiber Wavelength1310 nm1310 nm1310 nm1310 nm1550 nm1310 nm1310 nm850 nmDepends on SFP transceiverDepends on SFP transceiver1310 nm1310 nm1310 nm1550 nm1550 nmTX: 1310 nm RX: 1550 nmTX: 1550 nm RX: 1310 nm-
Supported Fiber Cable LengthUp to 2 kmUp to 20 kmUp to 40 kmUp to 60 kmUp to 80 kmUp to 2 kmUp to 20 kmUp to 550 mDepends on SFP transceiverDepends on SFP transceiverUp to 10 kmUp to 20 kmUp to 40 kmUp to 60 kmUp to 80 kmUp to 20 kmUp to 20 km-
Emission Certifications (EMI)FCC CE VCCIFCC CE VCCIFCC CE VCCIFCC CE VCCIFCC CE VCCIFCC CE VCCIFCC CE VCCIFCC CE VCCIFCC CE VCCIFCC CE VCCIFCC CE VCCIFCC CE VCCIFCC CE VCCIFCC CE VCCIFCC CE VCCIFCC CE VCCIFCC CE VCCIFCC CE VCCI

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.

Support

Downloads

Datasheets
DescriptionDateTypeFile SizeDownload
DatasheetDatasheetPDF · 1.78mb-PDF1.78mb
