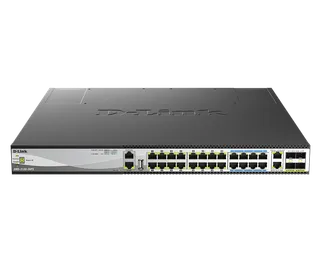

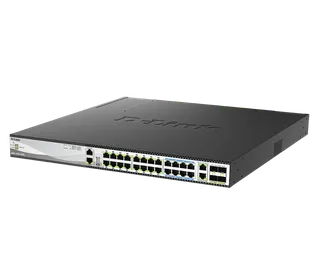

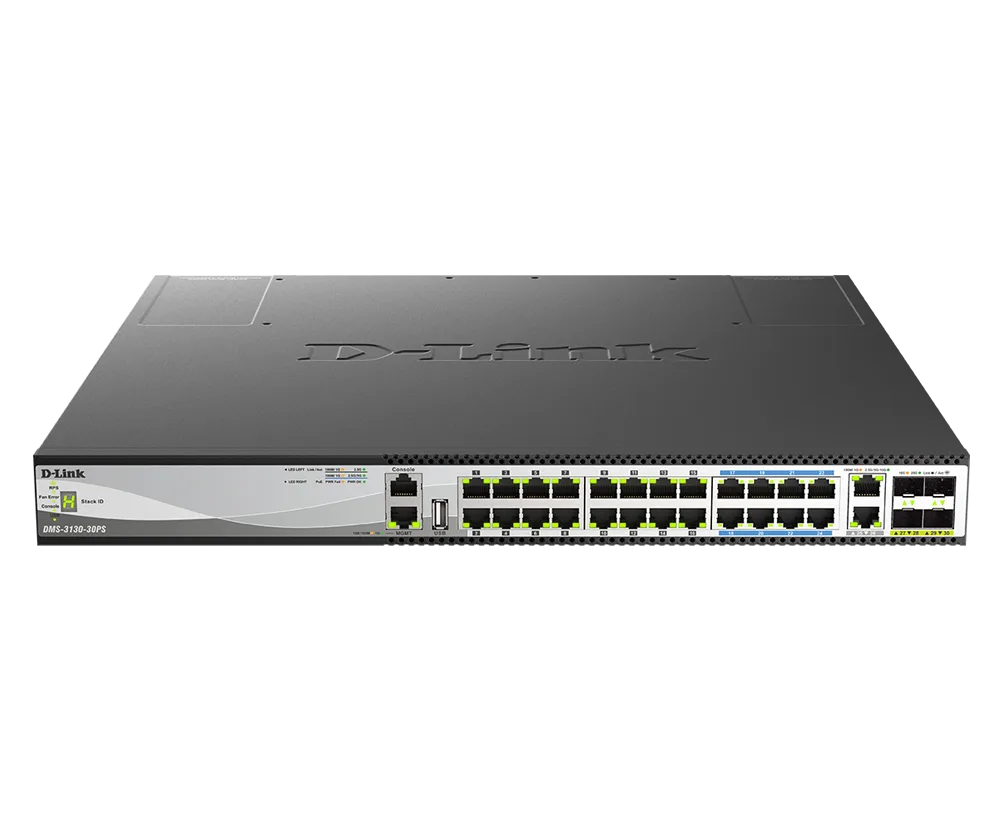

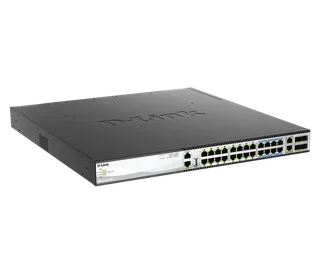

DMS-3130-30PS

30-Port Layer 3 Stackable Multi-Gigabit Managed PoE Switch

16 x 100M/1/2.5GBASE-T PoE+ ports + 8 x 100M/1/2.5/5GBASE-T PoE++ ports
2 x 100M/1/2.5/5/10GBASE-T ports and 4 x 10/25G SFP28 ports provide all the uplink capacity your network needs
PoE budget of 740W allows powering of numerous external devices (Up to 960W with dual powers)
Premium L2 and L3 features effortlessly improve network efficiency and reduce unnecessary data transfer
RIP/RIPng and OSPFv2/v3 dynamically map out your network, aiding data to get to its destination via the fastest route possible
Expand capacity in a flash with physical stacking up to 9 units
Smart Fan self-adjusts accordingly to maintain optimal operating temperatures
Support ERPS, Q-in-Q and 6 KV surge protection
Support 60W PoE compliance with IEEE 802.3bt
Perpetual PoE and Fast PoE support delivers faster and uninterrupted power to connected devices even when the switch is booting

Where to buy Download datasheet View specifications

Overview

Description

30-Port Layer 3 Stackable Multi-Gigabit Managed PoE Switch highlights 16 x 100M/1/2.5GBASE-T PoE+ ports + 8 x 100M/1/2.5/5GBASE-T PoE++ ports; 2 x 100M/1/2.5/5/10GBASE-T ports and 4 x 10/25G SFP28 ports provide all the uplink capacity your network needs.

Technical specifications for DMS-3130-30PS
PoE Ports	2 x 100M/1/2.5/5/10GBASE-T ports 4 x 10/25G SFP28 ports 8 x 100M/1/2.5/5GBASE-T 60W PoE ports 16 x 100M/1/2.5GBASE-T PoE ports

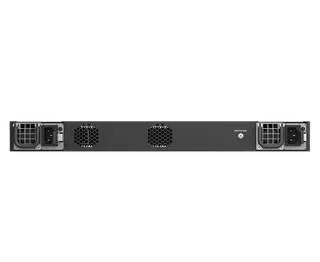

Optional Redundant Power Supply	AC (DPS-PWR740AC) hot-swappable internal redundant power supplies DC (DPS-PWR740DC) hot-swappable internal redundant power supplies
Console Port	10/100/1000BASE-T RJ-45 port for out-of-band CLI management
RJ-45 Management Port	10/100/1000BASE-T RJ-45 port for out-of-band IP management
Performance	64 Byte Packet Forwarding Rate 298 Mpps Packet Buffer Memory 4 MB
Interfaces	1 x Stacking Cost 4 x Stacking Ports 1 x USB 2.0 Type A port
Switching Capacity	400 Gbps
Standards	IEEE 802.3af IEEE 802.3at IEEE 802.3bt
PoE Power Budget	740 W 960 W (dual power supplies)

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
