30-Port Layer 3 Stackable Multi-Gigabit Managed Switch highlights 24 x 100M/1/2.5GBASE-T ports; 2 x 100M/1/2.5/5/10GBASE-T ports and 4 x 10/25G SFP28 ports provide all the uplink capacity your network needs.

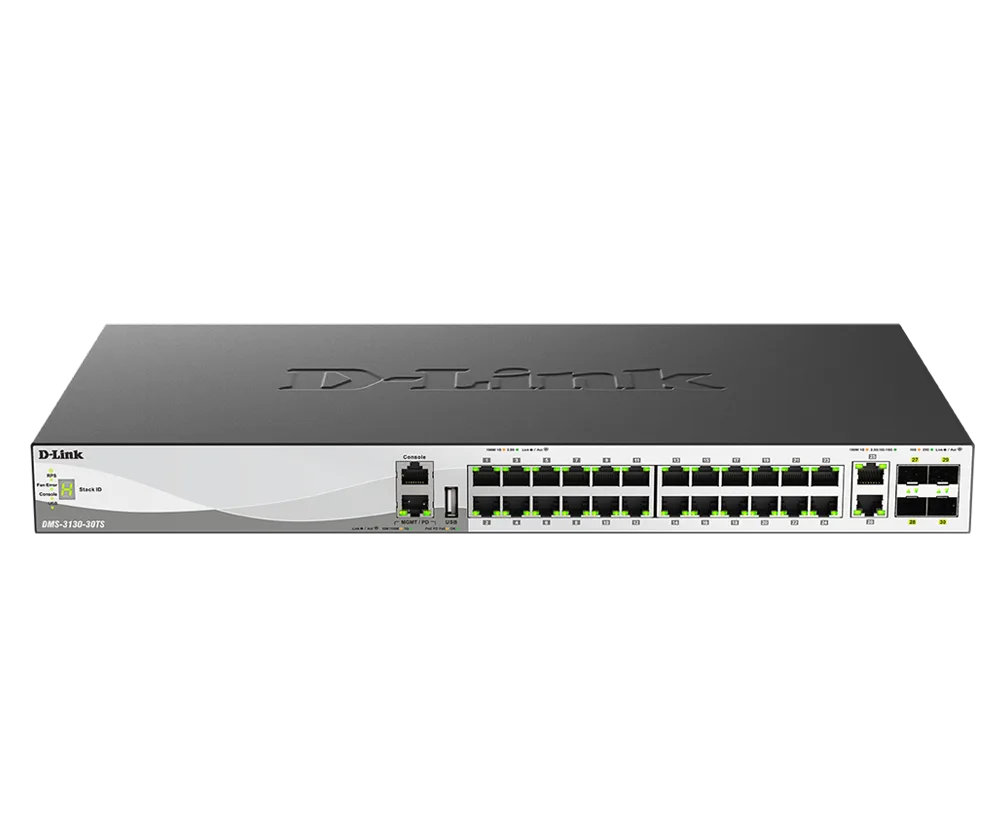

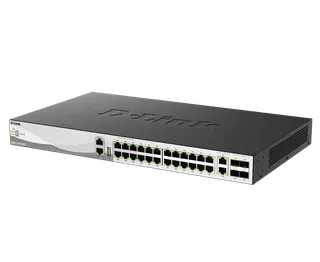

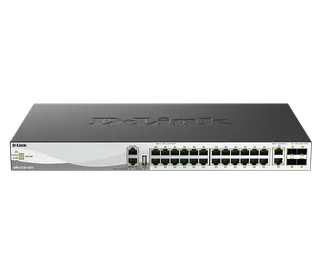

DMS-3130-30TS
30-Port Layer 3 Stackable Multi-Gigabit Managed Switch
- 24 x 100M/1/2.5GBASE-T ports
- 2 x 100M/1/2.5/5/10GBASE-T ports and 4 x 10/25G SFP28 ports provide all the uplink capacity your network needs
- Premium L2 and L3 features effortlessly improve network efficiency and reduce unnecessary data transfer
- RIP/RIPng and OSPFv2/v3 dynamically map out your network, aiding data to get to its destination via the fastest route possible
- Expand capacity in a flash with physical stacking up to 9 units
- Smart Fan self-adjusts accordingly to maintain optimal operating temperatures
- Support ERPS, Q-in-Q and 6 KV surge protection
- Support AC/DC redundant power supply
Overview
DMS-3130-30TS
Specifications
| PoE Ports | 2 x 100M/1/2.5/5/10GBASE-T ports 4 x 10/25G SFP28 ports 24 x 100M/1/2.5GBASE-T ports |
|---|---|
| Optional Redundant Power Supply | DPS-500A DPS-500DC |
| Console Port | 10/100/1000BASE-T RJ-45 port for out-of-band CLI management |
| RJ-45 Management Port | 10/100/1000BASE-T RJ-45 port for out-of-band IP management |
| Interfaces | 4 x Stacking Ports 1 x Stacking Cost 1 x USB 2.0 Type A port |
| Switching Capacity | 360 Gbps |
| Performance | 64-Byte Packet Forwarding Rate 268 Mpps Packet Buffer Memory 4 MB |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
