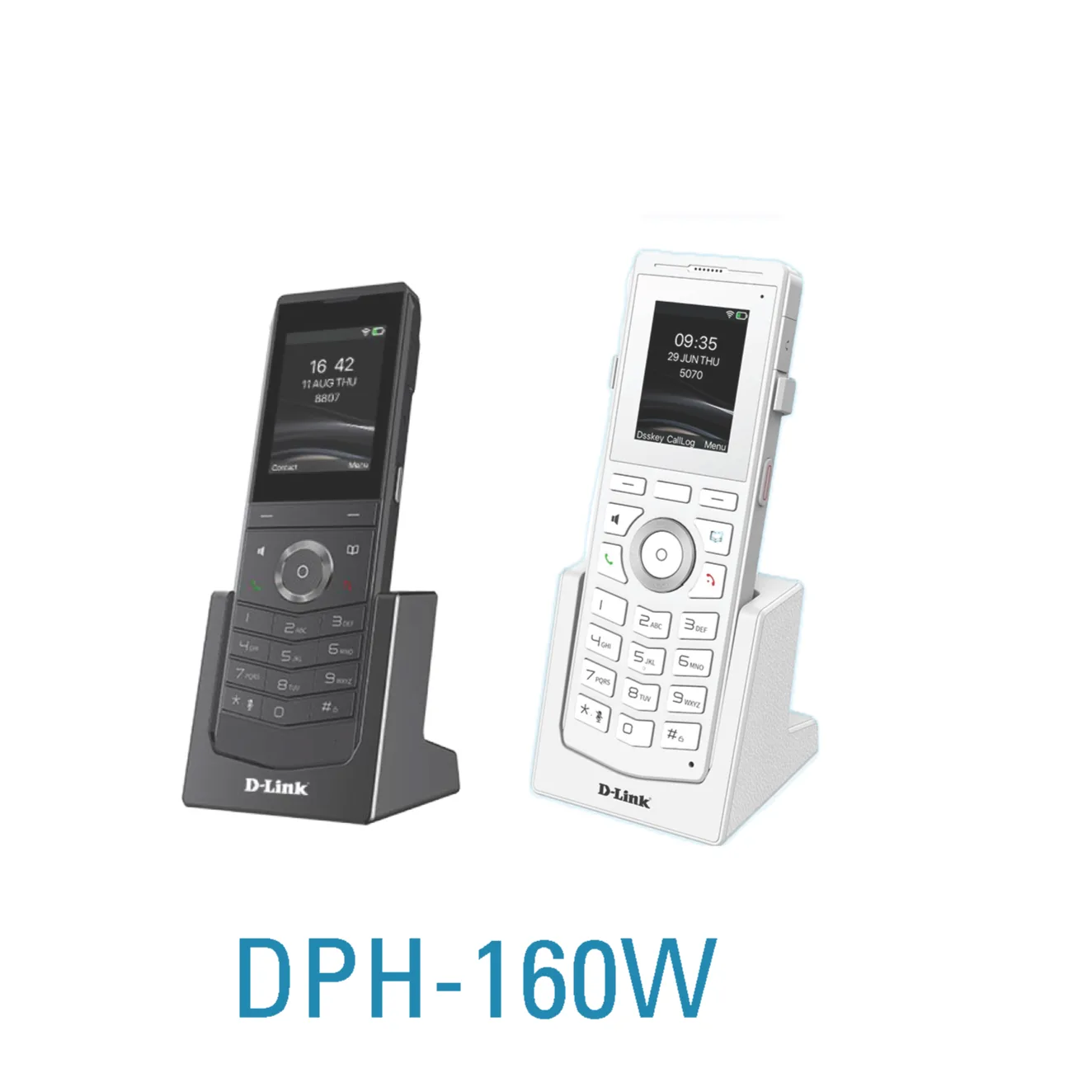

The D-Link DPH-160W/F2 is a portable and elegant Wi-Fi phone designed for mobile communication applications. Equipped with built-in dual-band 2.4GHz and 5GHz Wi-Fi, the DPH-160W ensures stable and efficient communication in various wireless network environments. It also features Bluetooth 5.0 for easy pairing with headsets and mobile devices. Powered by a built-in 3000mAh high-capacity battery, it offers up to 13 hours of talk time and 240 hours of standby time, significantly enhancing work continuity and flexibility. Widely used in enterprises, shopping malls, and hotels, the DPH-160W delivers a high-quality mobile communication experience.
DPH-160W
8-Line Wireless SIP IP Phone
- 2.5" 240 x 320 color screen with intuitive user interface
- Drop-safe from 1.8-meter height
- Built-in dual-band (2.4GHz/5GHz) delivers superior anti-interference capability and faster speeds.
- Support IEEE802.11k/v/r roaming
- Support WPA / WPA2-PSK and 802.1X EAP encryption
- Built-in Bluetooth 5.0 can be used to connect wireless earphone
- Support vibration function
- Support 16 DSS Keys and one configurable push-to-talk (PTT) button for speed dial
- Up to 13 hours of talk time and up to 240 hours of standby time
Overview
DPH-160W
Specifications
| Call Features | Auto-Answering Call out/Answer/Reject Call waiting/Switch Call forwarding Speed Dial Intercom Anonymous calls 3-way Conference Restrict outgoing calls IP direct dial Emergency call Caller ID Display Inquiry (dialing, incoming and outgoing calls) Do-Not-Disturb PTT one-key call |
|---|---|
| Generic | 2.5-inch 240*320 color high-definition LCD display 8 SIP lines Caller ID Handset/Hands-free/Headset Mode Support 16 DSS keys HD Voice Vibration function Belt clip Desktop charging base Standard type-c interface Rechargeable Lithium Battery Support Bluetooth 5.0 |
| Network & Protocols | Built-in Wi-Fi, support 802.11 a/b/g/n/ac protocol: 2.4GHz IEEE 802.11 b/g/n 5GHz IEEE 802.11a/n/ac Encryption:WPA /WPA2-PSK,802.1X EAP Built-in Bluetooth 5.0 RTP/RTCP/SRTP STUN DHCP SNTP FTP/TFTP HTTP/HTTPS TR-069 |
| Phone Feature | Network time synchronization Local contacts (1000 entries) Remote phonebook (XML/LDAP, 1000 entries) Multi-language optional Call logs (1000 entries) Blocked List/Allowed List Screen saver Personalized ringtone settings Screen backlight adjustment Memorandum SMS service Voicemail(MWI) Menu encryption settings Keypad lock/ backlight adjustment Volume adjustment |
| Power Management | Charging notification Full power notification Low battery notification After the abnormal shutdown, the device will boot automatically when charging again Real-time statistics/display of system power |
| Audio | Narrowband Codec: G.711a/u, G.729AB, G.723.1, G.726, iLBC Wideband Codec: G.722, Opus Acoustic Echo Cancellation (AEC)- maximum 96ms echo delay cancellation Voice Activity Detection(VAD)/ Comfort Noise Generation(CNG)/ Background Noise Estimation (BNE) |
| Physical Specifications | Drop height: 1.8m Shell material: plastic Charging Base x1 Belt Clip x1 Rechargeable Battery x1 3000mAh DC input: 5V/2A Charging port: Type-C Headphone jack: Type-C Port Installation method: Belt Clip /Desktop Operating temperature: 0℃~ 45℃ Storage temperature:-20℃~ 60℃ Relative humidity:10~95% Product size:160*53*16mm Product weight: 208g |
| Deployment & Maintenance | Auto-Provisioning via FTP/TFTP/HTTP/ HTTPS/DHCP OPT66/SIP PnP/TR-069 Web management interface Web-based Packet-dump Configuration export/import Firmware upgrade Syslog |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
