D-Link

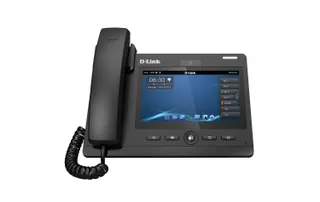

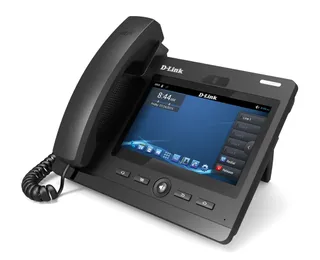

DPH-860S

PoE Video SIP Business IP Phone

  • 20 SIP Lines
  • HD Audio/Video
  • Dual Gigabit ports, integrated PoE
  • Embedded 1080P camera
  • 7-inch (1024x600) color touch screen
  • Handset / Hands-free / Headset mode
  • Intelligent DSS Keys(Virtual buttons)
  • Optional External Power Supply
  • Android 9.0 OS with higher security and better compatibility
  • Built-in Applications: Files, Calendar, Gallery, Browser, Email, Calculator, Notepad, Sound Recorder, Clock, Video, Music
Where to buyDownload datasheetView specifications

Overview

Ideal for Home & Office

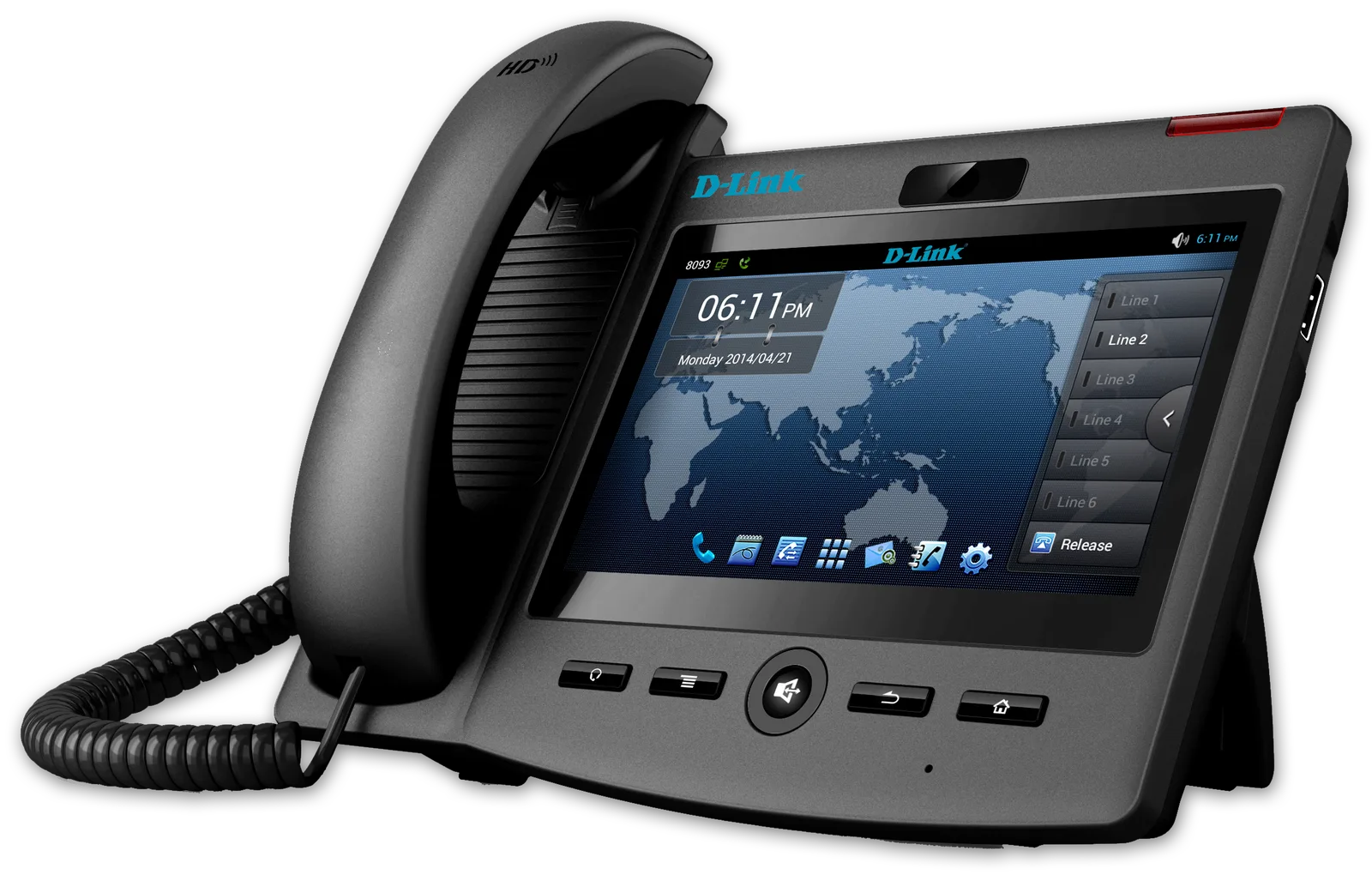

The D-Link DPH-860S is the latest innovation in advanced color IP video phones. Unified with audio, video, applications, the DPH860S is a powerful, easy-to-use business video phone. Its large display and ease of use make DPH-860S an ideal all-in-one tool for today’s busy executives and managers, whether they are in office, healthcare, etc. With its superb user experience and rich business features, it creates an immersive, face-to-face experience over the network, empowering you to collaborate with others like never before.

Extensive Phone Features

DPH-860S is equipped with rich business features including 20 SIP accounts, supporting PoE, Audio & Video conferencing, 112 DSS keys on the 7-inch color touch screen, built-in USB/TF interface, supported Android apps allows unified communication smarter and simpler which increase efficiency on decision-making when cooperating with others. With extensive storage capacity for directories and call logs, DPH860S improves efficiency by showing more call information through a simple touch, moreover it is fully interoperable with leading IP PBX systems.

DPH-860S

Specifications

Specification
Highlights20 SIP Lines HD Audio/Video Dual Gigabit ports, integrated PoE Embedded 1080P camera 7-inch (1024x600) color touch screen Handset / Hands-free / Headset mode Intelligent DSS Keys(Virtual buttons) Optional External Power Supply Android 9.0 OS with higher security and better compatibility Built-in Applications: Files, Calendar, Gallery, Browser, Email, Calculator, Notepad, Sound Recorder, Clock, Video, Music Support 3rd Party Applications Secondary Development of API
Video FeaturesVideo decoding: H.264 Video call resolution: QVGA/CIF/VGA/4CIF/720P/1080P Image format: JPEG/PNG/BMP Video format: MP4 Bandwidth selection: 64kbps~4Mbps Frame rate selection: 5~30fps Video from remote site can be displayed in full screen Embedded Camera 2 Mega Pixel Flexible Placement and Angle Adjustment Video Preview
Phone FeaturesLocal Phonebook (2000 entries) Remote Phonebook (XML/LDAP, 2000 entries) Intelligent Search for Contacts and Call Log Call logs (In/out/missed, 1000 entries) Black/White List Call Filter Screen saver Voice Message Waiting Indication (VMWI) Programmable DSS/Soft keys Network Time Synchronization Action URL / Active URI Distinctive Ring Customized ring Audio/Video Recording SIP Hotspot Multicast Action Plan Time Plan
Audio FeaturesHD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response) Wideband ADC/DAC 16KHz Sampling Narrowband Codec: G.711a/u, G.729AB, iLBC Wideband Codec: G.722, Opus Full-duplex Acoustic Echo Canceller (AEC) Noise Reduction (NR) Packet Loss Concealment (PLC) Dynamic Adaptive Jitter Buffer DTMF: In-band, Out-of-Band – DTMF: Relay(RFC2833) / SIP INFO
Network & SecurityPhysical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass IP Mode: IPv4 IP Configuration: Static / DHCP Network Access Control: 802.1x VPN: OpenVPN (Requires third-party app support) VLAN LLDP CDP QoS SIP2.0 over UDP/TCP/TLS DNS A/SRV/NAPTR RTP/RTCP/SRTP RTSP STUN DHCP CDP LLDP CDP 802.1x OpenVPN (Requires third-party app support) SNTP FTP/TFTP HTTP/HTTPS TR-069
Call FeaturesCall out / Answer / Reject Mute / Unmute (Microphone) Call Hold / Resume Call Waiting Intercom Caller ID Speed Dial Anonymous Call (Hide Caller ID) Call Forwarding (Always/Busy/No Answer) Call Transfer (Attended/Unattended) Call Parking/Pick-up (Depending on server) Redial Do-Not-Disturb Auto-Answering Voice Message (On server) 3-way Audio Conference Hot Line/Warm Line Direct IP call Hot desking BLF
Physical SpecificationsColor: Black LCD x1: 7 inches (1024x600) color touch screen, IPS HD Handset (RJ9) x1 Standard RJ9 Handset Wire x1 1.5M CAT5 Ethernet Cable x1 Back Rack x1 RJ9 Port x2: Handset x1, Headset x1 RJ45 Port x2: Network x1, PC x1 (Bridged to Network) HDMI port x1: Type A USB2.0 Port x1: Standard A, Connect with flash drive TF card interface x1: 128G Power: 5V/2A or PoE Class3 Working Temperature: 0~45˚ Working Humidity: 10~95% Installation: Desktop or Wall Mounted
Maintenance & ManagementAuto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069 Web Management Portal Supports 3rd party communication APP Supports encrypted configuration files download with AES

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
