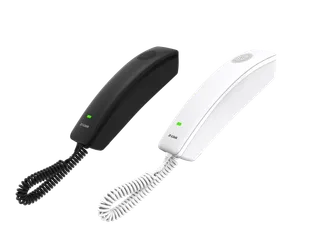

DPH-215SE
Compact IP Phone
- 2 SIP Lines
- HD voice
- PoE enabled
- Handset / hands-free mode
- Desktop / wall-mounted
- Optional external power supply
DPH-215SE
Specifications
| Key Features | Programmable DSS/soft keys Multi languages displayed (web) |
|---|---|
| Audio | HD voice: HD handset Codec: G.711A/U, G.723.1 high/low, G.729AB, G.722, G.726-32 DTMF: in-band, RFC2833 and SIP INFO Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) Packet Loss Concealment (PLC) Dynamic Adaptive Jitter Buffer up to 300ms DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO |
| Advanced Features | Call transfer (unattended/ attended/ semi-attended) Call holding Call waiting Redial Call completion MWI Flexible dial plan Barring function for outgoing calls Do not disturb Auto answer CLIR (rejects anonymous calls) CLIP (to make an anonymous call) Dial without registration Call logs with missed calls/ incoming calls/ outgoing DTMF hidden Action URL / active URI Multicast Web dial Emergency call |
| Network/ Security Features | WAN / LAN: 10/100M Ethernet ports (Bridge mode) IP Configuration: Static / DHCP / PPPoE Network Access Control: 802.1x VPN: L2TP (Basic Unencrypted) / OpenVPN VLAN QoS |
| Deployment & Maintenance | Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069 Web Management Portal Web-based Packet Dump Configuration Export / Import Firmware Upgrade Syslog |
| Physical Specifications | HD handset (RJ11) x1 RJ11 handset cord x1 Status indicator light x1 (two-color LED) RJ11 port x1: handset x1 RJ45 port x1: network x1 DC port x1: Φ5.5x2.1x10mm DC power input: DC5V / 2A or PoE PoE level: Class 1 Working temperature: 0~45℃ Working humidity: 10~95% Installation: Desktop / Wall-mounted Color: black/white Keypad: 19 keys |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
