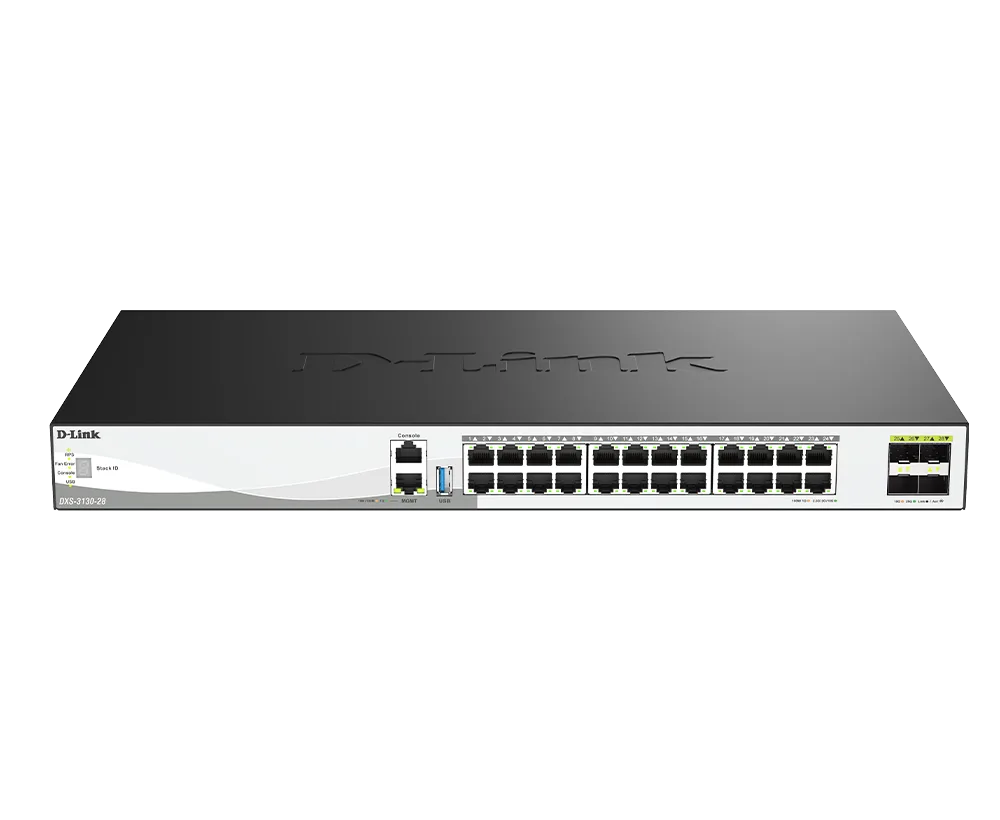

D-Link

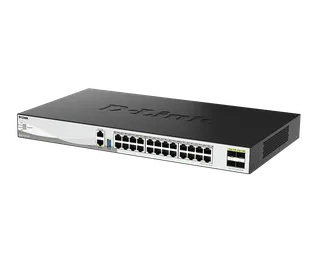

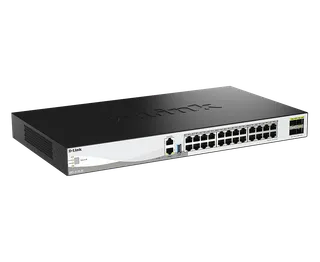

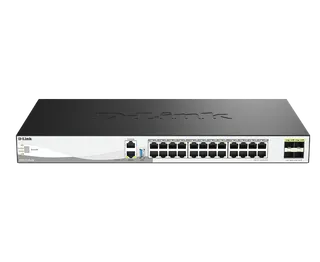

DXS-3130-28

24-Port 10G Layer 3 Stackable Aggregation Managed Switch

  • 24 Ports 10G/multi-Gigabit for downlink
  • 4 Ports 10/25G SFP28 for uplink
  • 6kV surge protection on 10G Ethernet ports
  • Physical stack of up to 9 units via four 25G ports
  • 200 Gbps per-device physical stacking bandwidth
  • Ethernet Ring Protection Switching (ERPS)
  • RIP/RIPng, OSPFv2/v3, VRRP for L3 routing
  • IEEE 802.1ag for Connectivity Fault Management
  • Green features for reduced power consumption
  • Manage through the Nuclias Network Controller
Where to buyDownload datasheetView specifications

Overview

User Benefits​

Versatile Traffic Management

Optimizes critical services with QoS, traffic shaping, multicast support, and ISM VLAN for enhanced efficiency

Simplified Management

The SIM feature enables managing multiple switches as a virtual stack with a single IP, supporting diverse management tools

Boosted Network Reliability

AC or DC RPS options ensure uninterrupted operation and boost switch reliability by preventing power disruptions

Advanced Security for Access

Supports authentication mechanisms such as 802.1X, Web/MAC-based access control for the easy deployment

High Availability and Scalability

Stack up to 9 switches with 200 Gbps bandwidth and unified IP for simplified control, fast failover and solid redundancy

Efficient Layer 3 Routing

Enables Layer 3 routing between different parts of your network, improving efficiency by directing traffic to its optimal destination

High-Speed Versatile Switching

Featuring 24×10G multi-Gigabit ports + 4×10/25G SFP28 uplinks, this switch delivers flexible, high-performance connectivity. The 100M-10G auto-sensing ports optimize speed while 25G-capable uplinks handle heavy traffic.

Perfect as a core switch for SMBs, enterprise aggregation, or Metro Ethernet edge, it combines rich software features with robust security for diverse deployments.

Unified the Power, Stack for Success

Scale your network with the DXS-3130-28 by stacking up to 9 switches into a single physical or virtual unit. This simplifies management, improves redundancy, and allows control of the entire stack through one IP address. With up to 200 Gbps, physical stacking boosts capacity to meet growing network demands.

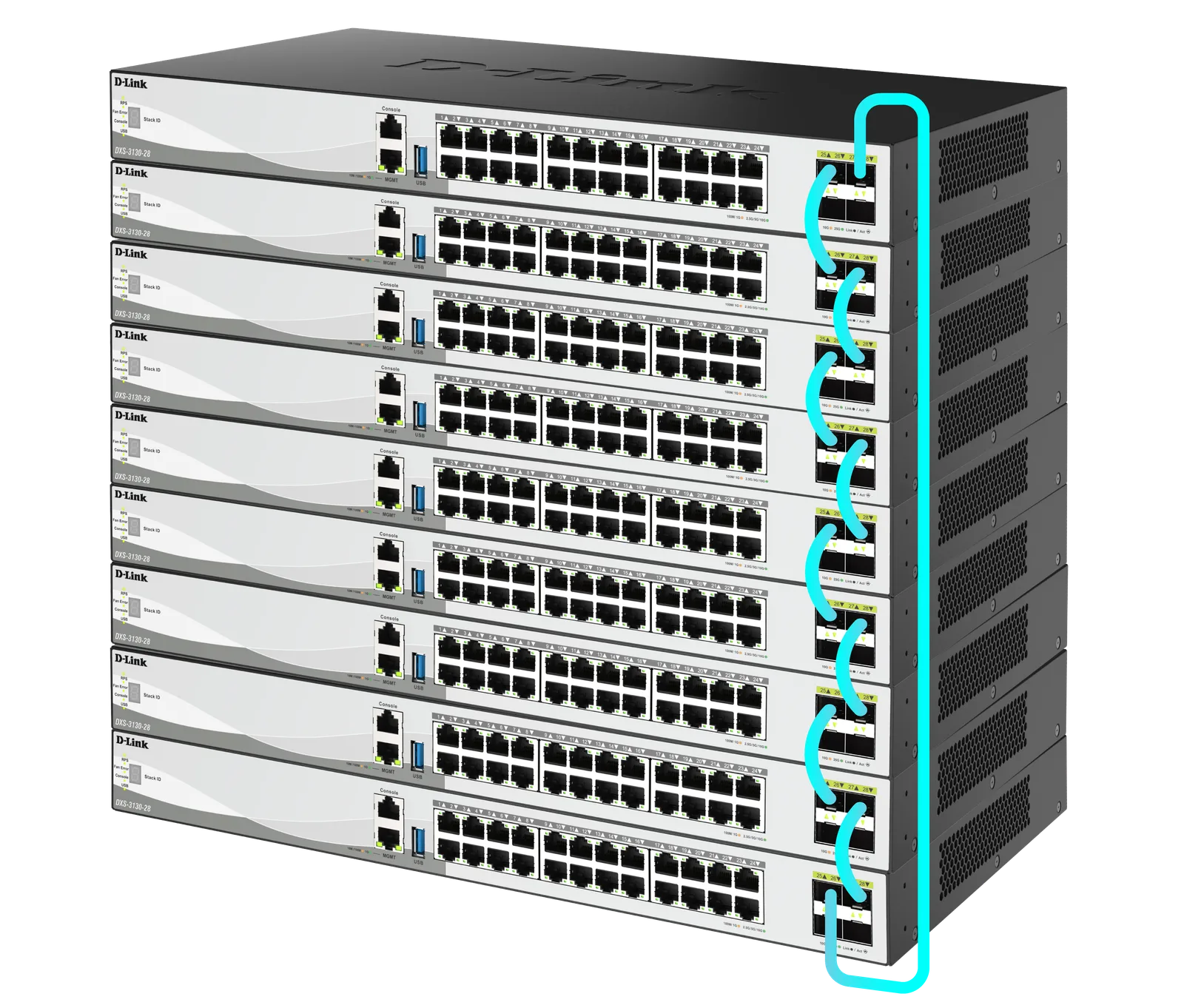

DXS-3130-28 Unified the Power, Stack for Success illustration

Built for Unbreakable Networks

The DXS-3130-28 ensures continuous uptime with redundant power and stacking. Its 50ms ERPS recovery minimizes downtime, loop back detection blocks storm-affected ports, and VRRP provides seamless backup routing making it ideal for hospitals, factories, and other mission-critical networks.

DXS-3130-28 Built for Unbreakable Networks illustration

Optimized Performance for Critical Services

The DXS-3130-28 switch prioritizes mission-critical traffic like VoIP and IPTV through advanced QoS/CoS, traffic shaping, and L2 Multicast (IGMP/MLD Snooping). ISM VLAN further enhances bandwidth efficiency and security for multicast streaming.

Advanced QoS/CoS

Prioritizes critical traffic like VoIP and video, ensuring smooth performance and minimal latency for time-sensitive applications

IGMP/MLD Snooping

Multicast traffic streams only to intended recipients, reducing unnecessary bandwidth usage and enhancing network efficiency

ISM VLAN

Controls multicast across VLANs to reduce traffic and enhance security and performance on the large-scale network

Applications

K-12 School (Education)

K-12 School (Education)

Office (Enterprise)

Office (Enterprise)

High-Rise Community (Buildings)

High-Rise Community (Buildings)

DXS-3130-28

Specifications

Technical specifications for DXS-3130-28
Interfaces24 x 10GE 4 x 10/25G SFP28
Switch Capacity680 Gbps
Max. Packet Forwarding Rate505.92 Mpps
Max Power Consumption76.58 W
Dimensions440 x 250 x 44 mm (17.32 x 9.84 x 1.73 in)
Weight3.525 kg
Surge ProtectionIEC61000-4-5 6kV surge protection on all Ethernet ports
FAN3 x Smart fans
Operating Temperature0°C to 50 °C (32°F to 122 °F)
Storage Temperature-40°C to 70°C ( -40°F to 158°F)
Operating Humidity10% to 90% relative humidity
Storage Humidity5% to 90% relative humidity
Console PortSupported
Power Supply TypeInternal

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
