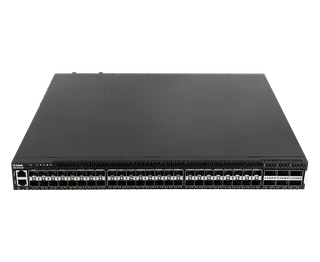

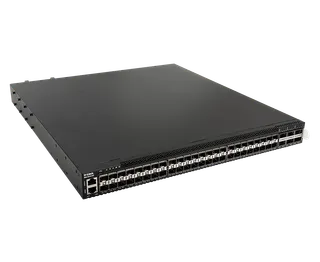

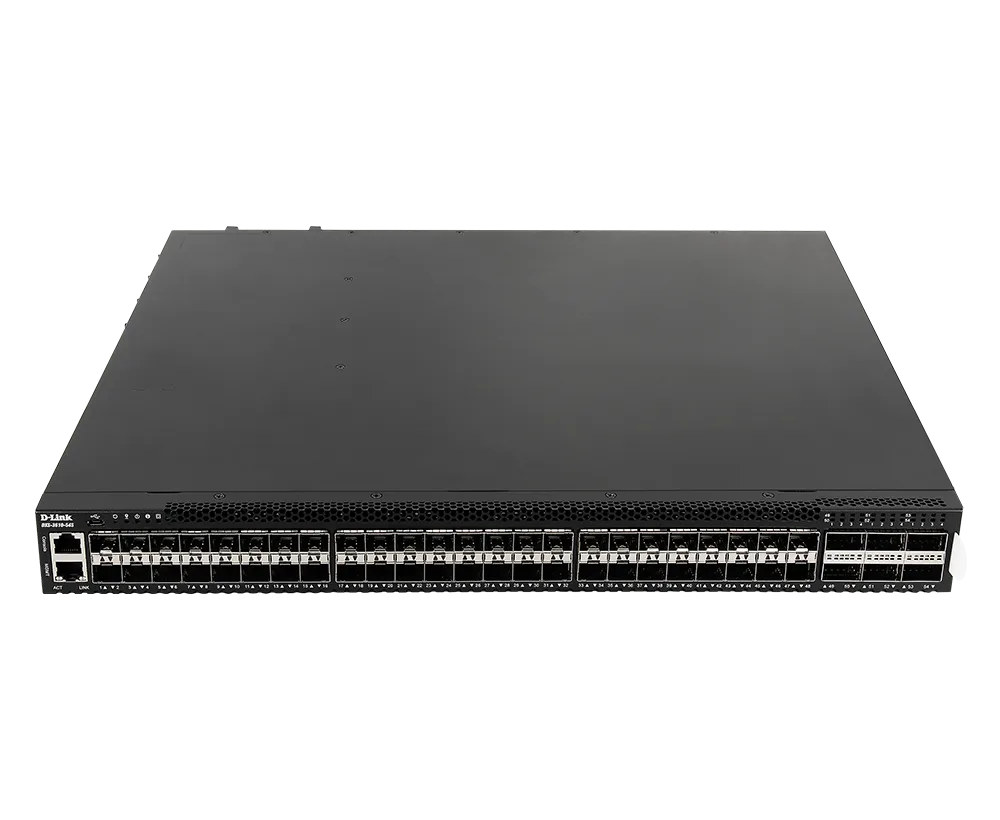

DXS-3610-54S

48 Ports 10G Layer 3 Managed Switch

High port density: 48 x 10 GbE SFP+, 6 x 100G QSFP28 ports
Stack up to 12 switches (up to 1.2 Tbps stacking bandwidth)
OpenFlow 1.3 compliance for SDN-enabled network compatibility

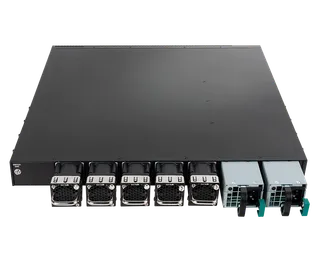

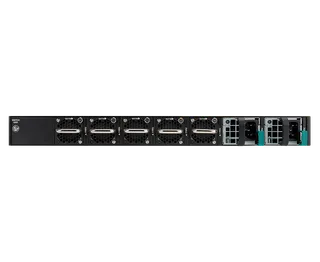

Modular PSU (1+1) and fan (N+1) with load sharing capabilities
Switch locator LED and ID tag for maintenance convenience
Upgradable license for full L3 and MPLS applications

Where to buy Download datasheet View specifications

Overview

OpenFlow Switching that Stacks Above the Competition

The DXS-3610 Layer 3 Stackable 10G/100G Managed OpenFlow Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackability up to 12 units and high port density make the DXS-3610 the ideal choice for future-proofing your aggregation/core network.

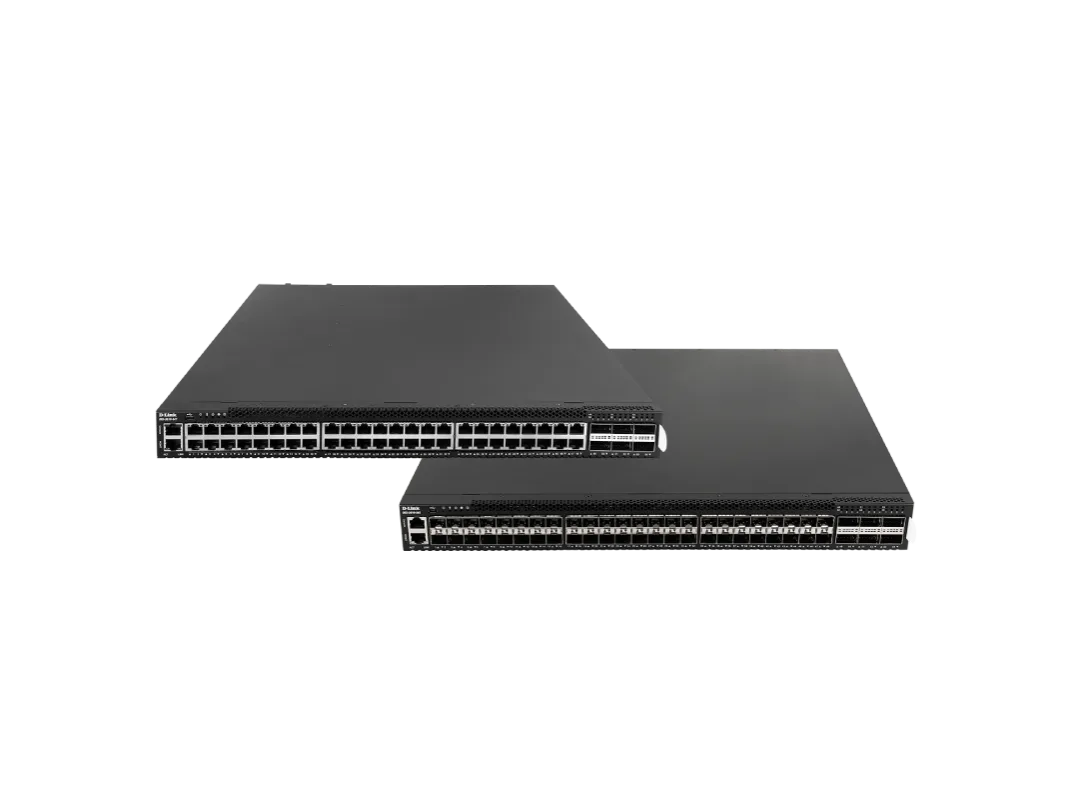

DXS-3610-54S OpenFlow switching illustration

Technical specifications for DXS-3610-54S
Interfaces	48 x 1/10GbE SFP/SFP+ ports 6 x 40/100GbE QSFP+/QSFP28 ports
Console Port	1 x RJ-45 console port
Switching Capacity	2.16 Tbps
Maximum Forwarding Rate	1607.04 Mpps
Packet Buffer Size	32 MB
Max Power Consumption	320.8 W
Standby Power Consumption	120.6 W
Maximum Heat Dissipation	1083 BTU/hr
Acoustic	Max: 79.4 dB Min: 65.3 dB
FAN	Fan x 5
Dimensions	441.0 x 487.44 x 43.5 mm (17.36 x 19.19 x 1.71 in)
Weight	9.80 kg (21.61 lbs)
Temperature	Operating: 0 to 45 ºC (32 to 113 ºF) Storage: -40 to 70 °C (-40 to 158 °F)
Humidity	Operating: 0% - 95% RH Storage: 0% - 95% RH
MTBF	94,262 hours
Power Input	100 to 240 V AC 50/60 Hz

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
