6GHz Wireless Spectrum
The new 6GHz spectrum offers faster data speeds, increased capacity, reduced interference, and better latency.
DIR-BE981
BE10000 Tri-Band Mesh Router
- Wi-Fi 7 Speed: Up to 10 Gbps¹ across three bands for 4K/8K streaming, AR/VR gaming and fast downloads.
- Wi-Fi 7 Technology: Multi-Link Operation, Multi-RUs, 4K-QAM and 320 MHz channels, with up to 5760 Mbps¹ on 6 GHz, 2880 Mbps¹ on 5 GHz and 1030 Mbps¹ on 2.4 GHz.
- 10G Port: 1x 10 Gbps WAN port and 4x 1 Gbps LAN ports with link aggregation, so a fast internet line is not held back at 1 Gbps.
- Enhanced Coverage: 7x internal high-power antennas, Wi-Fi optimization and beamforming for wider coverage and more stable connections.
- Mesh Compatibility: Works with compatible mesh routers to build one Wi-Fi network across your home, without drops as you move between rooms.
- Advanced Parental Controls: Protect your kids online with instant monitoring, content filters and customized settings for every connected device.
- Easy Setup and Use: Managing your network is now simpler than ever with the D-Link Mobile Connect+ App.
Overview
4K-QAM
4K QAM modulation that can deliver 140% higher capacity.
320MHz Wider Channels
320MHz channels deliver massive throughput using a single 6GHz high band link
Multi-Link (MLO)
Enhances throughput, minimizes latency, and boosts reliability for upcoming applications.
Secure Network
Help keep your network safer with Advanced Parental Controls, guest Wi-Fi, WPA3 encryption and IEC 62443-4-1 security certification.
Smart Roaming
Seamlessly connects your devices to the strongest signal as you move from room to room, eliminating the need for them to disconnect and reconnect.
OFDMA
Small data packets destined for multiple devices are transmitted together and never have to queue up again. Perfect for Smart Homes filled with bandwidth-hungry IoT devices battling for bandwidth.

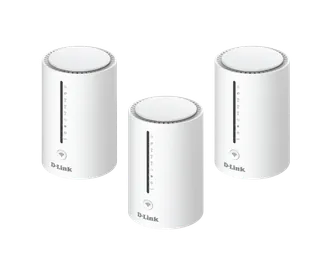

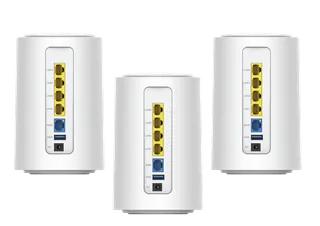

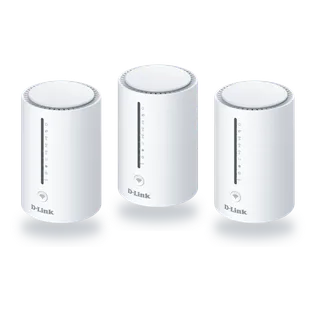

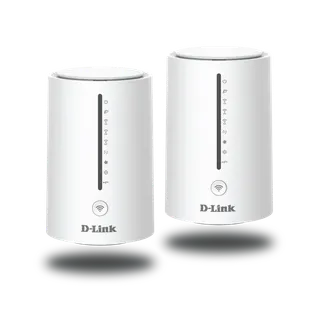

Expandable Network
DIR-BE981 is a scalable solution. Add extra DIR-BE981 Points where you need more Coverage
DIR-BE981
Specifications
| CPU frequency | Quad-Core, 2.0-GHz |
|---|---|
| Memory | 1GB DDR |
| Flash | 256MB Nand Flash |
| Wi-Fi | 3T3R 2.4GHz 802.11b/g/n/ac/ax/be, 1030Mbps¹ 2T2R 5GHz 802.11a/n/ac/ax/be, 2880Mbps¹ 2T2R 6GHz 802.11a/n/ac/ax/be, 5760Mbps¹ |

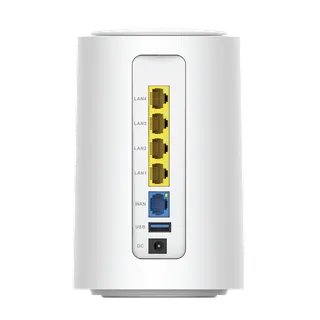

| Device Interfaces | 1 x RJ45 100M/1000M/2.5G/5G/10G WAN Ethernet 4 x RJ45 100M/1000M LAN Ethernet 1 x Reset Button 1 x WPS Button |
| Wi-Fi Antenna | 3 x 3dBi Internal 2.4G antennas 2 x 5dBi Internal 5G antennas 2 x 5dBi Internal 6G antennas |
| Standard | 802.11b/g/n/ac/ax/be, 1.03Gbps¹ 2.4G 802.11a/n/ac/ax/be, 2.88Gbps¹ 5G 802.11a/n/ac/ax/be, 5.76Gbps¹ 6G |
| Modulation schemes | OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM DSSS = DBPSK, DQPSK, CCK |
| Transfer Rate | EHT20: up to 1236Mbps¹ 2.4G+5G+6G EHT40: up to 2470Mbps¹ 2.4G+5G+6G EHT80: up to 2880Mbps¹ 5G+6G EHT160: up to 5760Mbps¹ 5G+6G EHT320: up to 5760Mbps¹ 6G |
| WAN Type | Static IP Dynamic IP PPPoE 802.1p & 802.1q VLAN tagging and priority bit |
| Security Protocol | WPA/WPA2 - Personal WPA2 - Personal WPA2/WPA3 - Personal (WPS not supported) WPA3 Only (WPS not supported) |
| Firewall | DoS Stateful Packet Inspection Anti-spoofing checking IP/MAC address filtering 1 x DMZ |
| Mesh | D-Link Wi-Fi Mesh |
| QoS | D-Link Intelligent QoS Technology |
| Power Saving | Target Wake Time (TWT) |
| Access Control | Advanced Parental Controls Guest zone |
| Dynamic DNS | No-IP DDNS Dyn DDNS |
| Protocols | IPv4 IPv6 |
| Operation Modes | Router mode Bridge mode Extender mode |
| VPN Pass-Through | L2TP IPSec Open VPN PPTP |
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -30°C ~ 70°C |
| Operating Humidity | 5%~95% (typical) |
| Power Supply | 12V/2.5A |
| Regulation Compliance | CE |
| Safety Regulations | UL |
| Green Standard | RoHS |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
