The D-Link DKVM-210H 2-port KVM switch with HDMI and USB ports allows you to manage two computers with one monitor, one keyboard and one mouse. The DKVM-210H requires no driver installation and can function without an external power adapter connection by being powered from a USB port of your PC (the power adapter¹ can be used when connecting an external device, for example, a USB-disk, to the USB Type-A port of the DKVM-210H). This KVM switch supports hot-plugging - you don't need to turn your computers off before installing the device. The DKVM-210H allows you to switch between computers quickly and easily using the buttons located on the front panel, keyboard hot keys or smart desktop controller. The DKVM-210H supports autoscan mode, which provides automatic switching to the next PC after the scan interval expires.

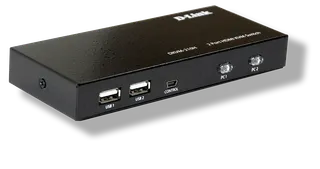

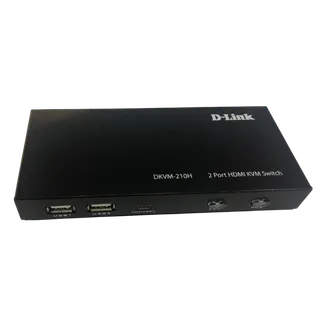

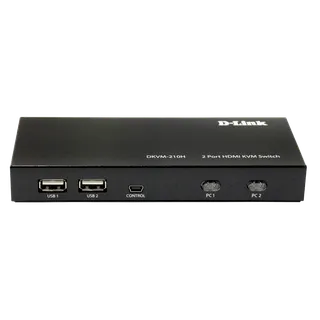

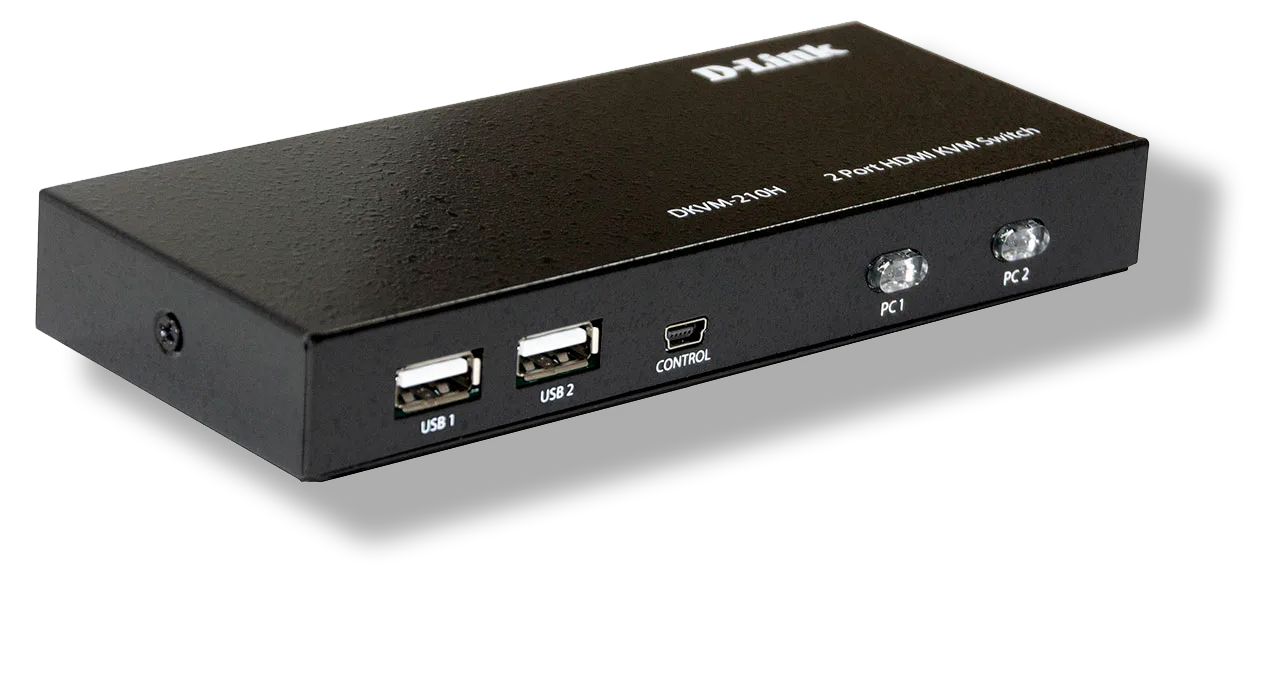

DKVM-210H
2-Port KVM Switch with HDMI and USB Ports
- Connect 2 PCs: Manage two computers with one monitor, one keyboard and one mouse.
- Switch between PCs quickly and easily: Switch between computers quickly and easily using the buttons located on the front panel, keyboard hot keys or smart desktop controller.
- Hot-plugging: You don't need to turn your computers off before installing the device.
Overview
DKVM-210H
Specifications
| Ports for connecting KVM cables | 2 HDMI ports 2 USB Type-B ports |
|---|---|
| Ports for connecting management console | Monitor (local): HDMI Keyboard (local): USB Type-A Mouse (local): USB Type-A |
| KVM cable connectors for connecting PC | HDMI connector USB Type-A connector |
| Ports for connecting external devices | 2 USB Type-A ports |
| Port for connecting smart desktop controller | Mini-USB Type-B port |
| LEDs | 2 port LEDs for connected PCs |
| Buttons | 2 port switching buttons |
| Enclosure | Metal |
| Connected PCs | 2 |
| Autoscan mode | Yes |
| Switching between PCs | Switching buttons on the front panel Hot keys Smart desktop controller |
| Sound notification of switching | Yes |
| HDMI version | HDMI 2.0 HDCP 2.2 |
| Resolution | Up to 4096x2160 / 3840x2160 @ 60 Hz (4:2:0) |
| Dimensions (L x W x H) | 155 x 66 x 21 mm |
| Power supply | From USB port on PC Power adapter¹ when using external devices |
| Temperature | Operating: 0 to 50 °C Storage: -20 to 60 °C |
| Humidity | 0% to 80% non-condensing |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
