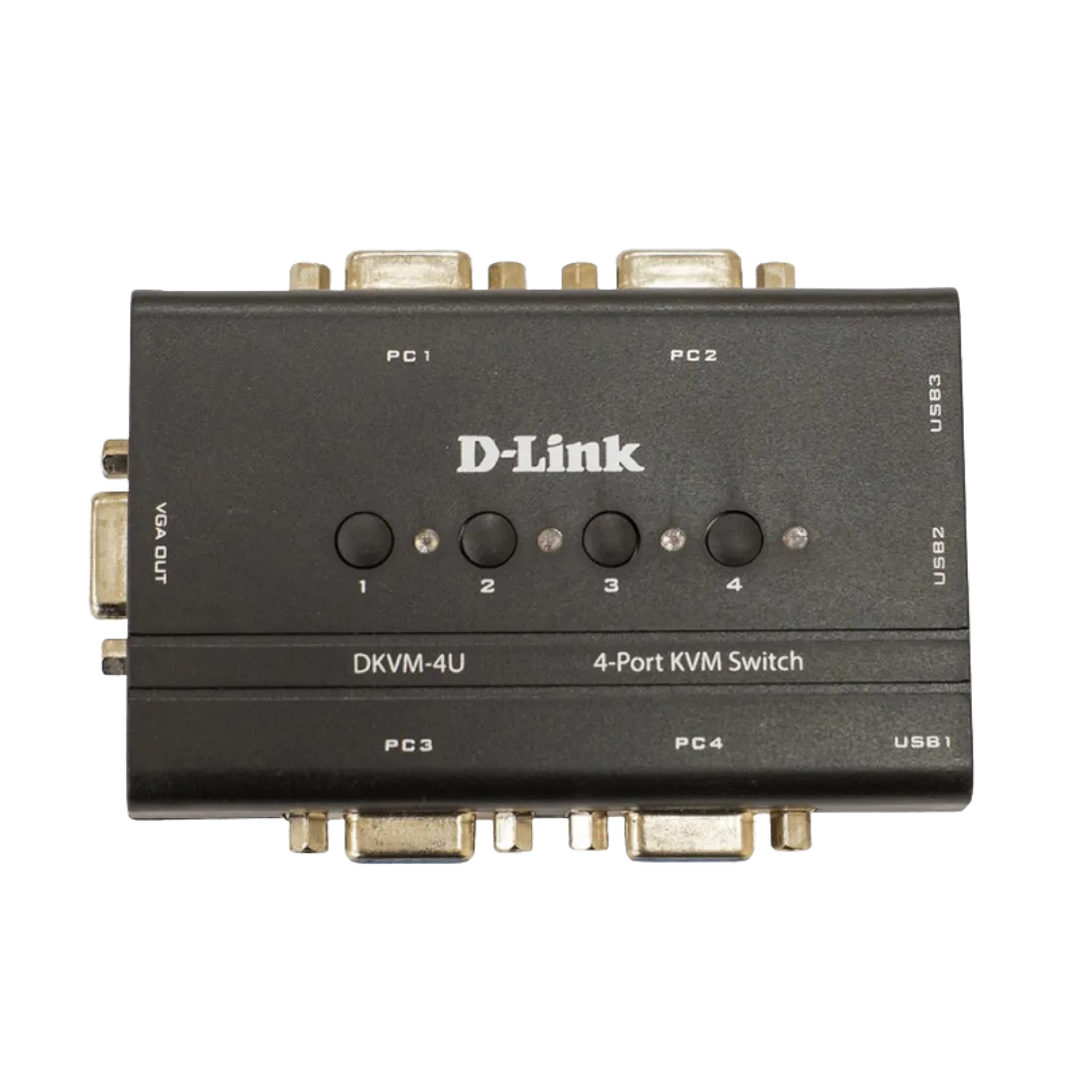

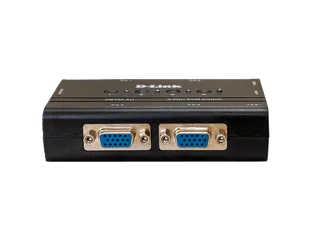

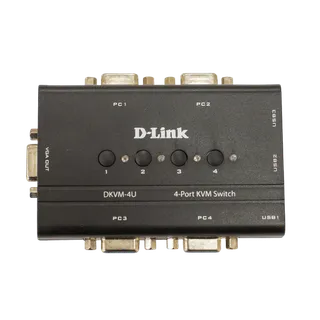

The D-Link DKVM-4U 4-port USB KVM switch allows you to manage up to four computers with one monitor, one keyboard and one mouse. The DKVM-4U requires no driver installation and no external power adapter connection. This KVM switch supports hot-plugging - you don't need to turn your computers off before installing the device. The DKVM-4U allows you to switch between computers quickly and easily using the buttons located on the top panel or keyboard hot keys. The DKVM-4U supports autoscan mode, which provides automatic switching to the next PC after the scan interval expires.
DKVM-4U
4-Port USB KVM Switch
- Connect up to 4 PCs: Manage several computers with one monitor, one keyboard and one mouse.
- Switch between PCs quickly and easily: Switch between computers quickly and easily using the buttons located on the top panel or keyboard hot keys.
- Hot-plugging: You don't need to turn your computers off before installing the device.
Overview
Order Information
- DKVM-4U/C: 4-Port USB KVM Switch
Optional Accessories¹
- DKVM-CU/B: 1.8 m KVM Cable with VGA and USB
- DKVM-CU3/B: 3 m KVM Cable with VGA and USB
- DKVM-CU5/B: 5 m KVM Cable with VGA and USB
DKVM-4U
Specifications
| Ports for connecting KVM cables | 4 VGA ports |
|---|---|
| Ports for connecting management console | Monitor (local): VGA Keyboard (local): USB Type-A Mouse (local): USB Type-A |
| Port for connecting USB-disk | USB Type-A |
| KVM cable connectors for connecting PC | Video: 15-pin HDB connector (VGA) Keyboard/Mouse: USB Type-A connector |
| LEDs | 4 port LEDs for connected PCs |
| Buttons | 4 port switching buttons |
| Enclosure | Plastic |
| Connected PCs | Up to 4 |
| Autoscan mode | Yes |
| Switching between PCs | Switching buttons on the top panel Hot keys |
| Sound notification of switching | Yes |
| Max. resolution | 2048x1536 |
| Dimensions (L x W x H) | 100 x 65 x 27 mm |
| Weight | 725 g |
| Power Supply | From USB port on PC (no external power adapter required) |
| Temperature | Operating: 0 to 50 °C Storage: -20 to 60 °C |
| Humidity | 0% to 80% non-condensing |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
