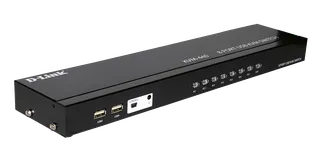

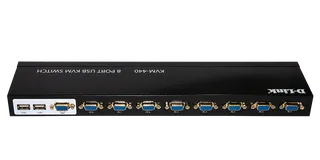

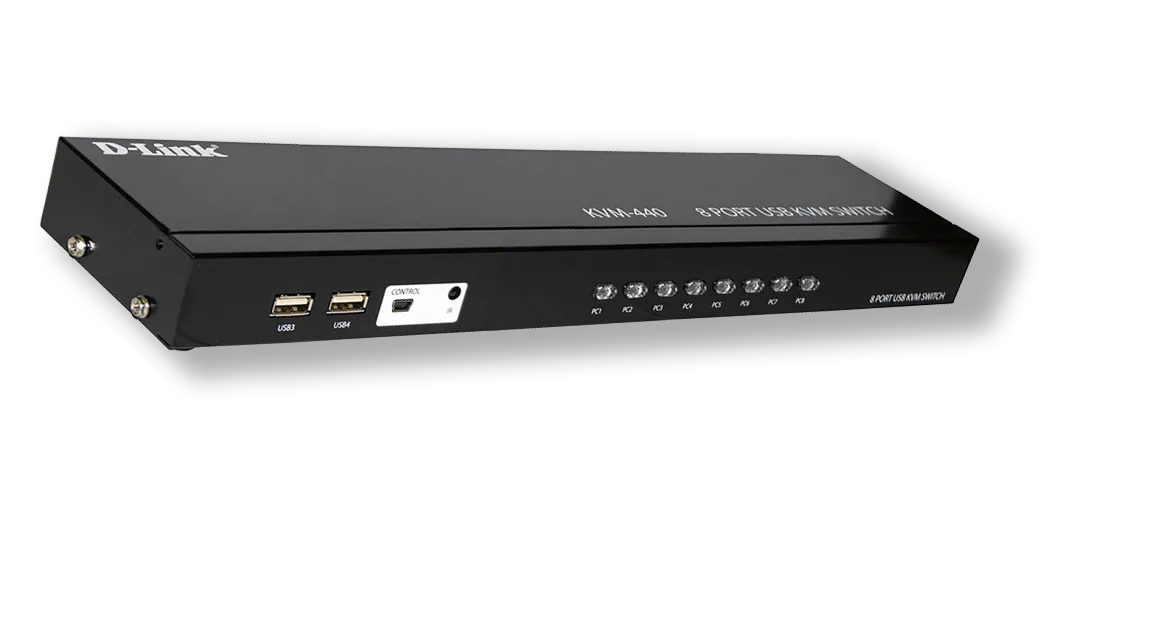

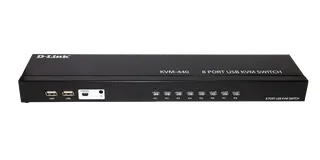

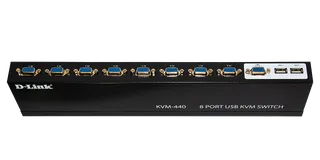

The D-Link KVM-440 8-port KVM switch with VGA and USB ports allows you to manage up to eight computers with one monitor, one keyboard and one mouse. The KVM-440 requires no driver installation and no external power adapter connection. This KVM switch supports hot-plugging - you don't need to turn your computers off before installing the device. The KVM-440 allows you to switch between computers quickly and easily using the buttons located on the front panel, IR remote controller or desktop controller. The KVM-440 supports autoscan mode, which provides automatic switching to the next PC after the scan interval expires. Two USB ports can be used for connecting external devices, for example, USB-disk. This KVM switch can be mounted in a 19-inch rack with the included mounting brackets.
KVM-440
8-Port KVM Switch with VGA and USB Ports
- Connect up to 8 PCs: Manage several computers with one monitor, one keyboard and one mouse.
- Switch between PCs quickly and easily: Switch between computers quickly and easily using the buttons located on the front panel, IR remote controller or desktop controller.
- Hot-plugging: You don't need to turn your computers off before installing the device.
Overview
Order Information
- KVM-440/C: 8-Port KVM Switch with VGA and USB Ports
Optional Accessories¹
- DKVM-CU/B: 1.8 m KVM Cable with VGA and USB
- DKVM-CU3/B: 3 m KVM Cable with VGA and USB
- DKVM-CU5/B: 5 m KVM Cable with VGA and USB
KVM-440
Specifications
| Ports for connecting KVM cables | 8 VGA ports |
|---|---|
| Ports for connecting management console | Monitor (local): VGA Keyboard (local): USB Type-A Mouse (local): USB Type-A |
| Ports for connecting external devices | 2 USB Type-A ports |
| Port for connecting desktop controller | Mini-USB |
| KVM cable connectors for connecting PC | Video: 15-pin HDB connector (VGA) Keyboard/Mouse: USB Type-A connector |
| LEDs | 8 port LEDs for connected PCs |
| Buttons | 8 port switching buttons |
| Enclosure | Metal, 19-inch rack mountable |
| Connected PCs | Up to 8 |
| Autoscan mode | Yes |
| Switching between PCs | Switching buttons on the front panel IR remote controller Desktop controller |
| Sound notification of switching | Yes |
| Max. resolution | 1920x1440 |
| Dimensions (L x W x H) | 370 x 83 x 30 mm |
| Weight | 2.37 kg |
| Power Supply | From USB port on PC (no external power adapter required) |
| Temperature | Operating: -50 to 80 °C Storage: -20 to 60 °C |
| Humidity | 0% to 80% non-condensing |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
