The DPH-200SE is a purpose-built IP phone designed for the modern hospitality environment. Its sleek, contemporary form factor, superior HD voice quality, and seamless integration with leading communication platforms make it the ideal intelligent terminal for discerning hotel operators. The DPH-200SE reflects both economical and environmentally-conscious product principles.

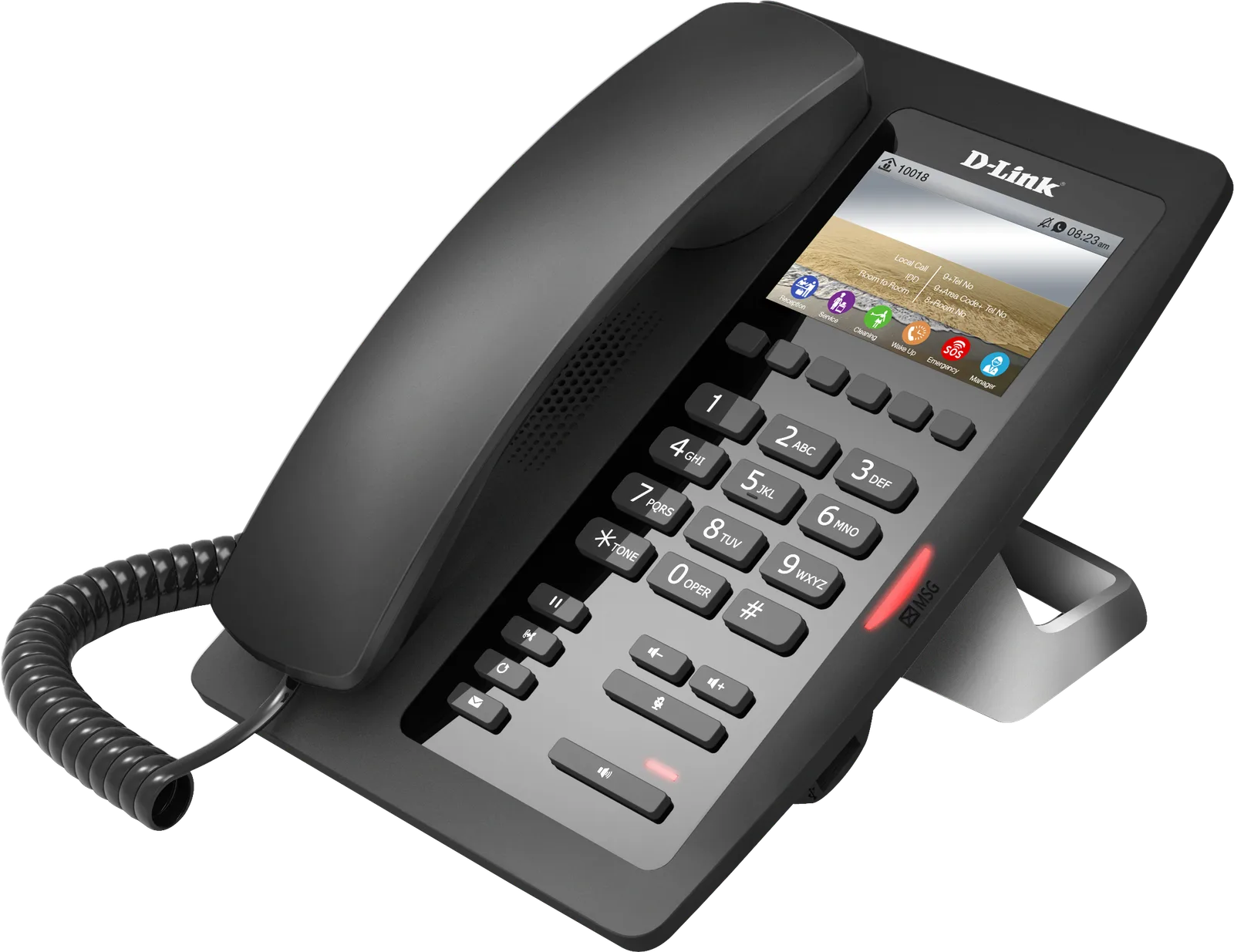

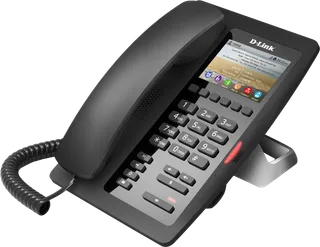

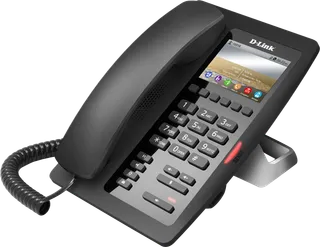

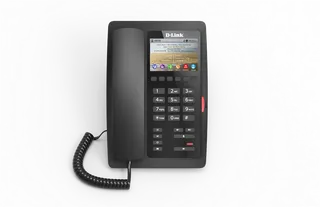

DPH-200SE
2-Line PoE Wi-Fi Hotel IP Phone
- Vibrant display for personalised guest info
- Remotely customisable via management platform
- Show branding, weather, or promotions
- Wideband codecs: G.722 & OPUS-WB
- Full-duplex speakerphone
- Echo cancellation & noise suppression
- One-touch: Housekeeping, Room Service
- Concierge, Switchboard & more
- Automated Wake-up Call support
- View incoming feeds from door phones
Overview
DPH-200SE
Specifications
| Key Features | Vibrant display for personalised guest info Remotely customisable via management platform Show branding, weather, or promotions Wideband codecs: G.722 & OPUS-WB Full-duplex speakerphone Echo cancellation & noise suppression One-touch: Housekeeping, Room Service Concierge, Switchboard & more Automated Wake-up Call support View incoming feeds from door phones Enhances in-room security awareness Seamless SIP video integration Convenient charging for guest devices Reduces need for separate chargers Integrated into the phone body Power & data via a single Ethernet cable Simplified, low-cost installation Eliminates wall adapter clutter |
|---|---|
| Overview | 2 SIP Lines HD Voice Power over Ethernet (PoE) & 5V/2A Adapter Handset & Hands-free Mode Built-in 2.4GHz Wi-Fi (IEEE 802.11b/g/n) Dual RJ45 Network Ports 3.5-inch (480×320) Color Display |
| Phone Functions | Programmable DSS / Soft Keys Action URL / Active URI Web Dial Dial Plan SIP Hotspot Distinctive Ring & Multicast |
| Call Functions | Call Out / Answer Mute / Unmute Call Hold & Resume Speed Dial & Redial Auto-Answering & Hot Line Customized Ringtone Call Logs: Incoming / Outgoing / Missed (max 600) |
| Network | 10/100 Mbps Ethernet IP Mode: IPv4 / IPv6 / Dual Stack IP Configuration: Static / DHCP / PPPoE Network Access Control: 802.1x VPN: L2TP / OpenVPN VLAN: 802.1P/Q QoS RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035) Wi-Fi Security: WPA / WPA2-PSK / 802.1X EAP |
| Audio | Wideband ADC/DAC: 16 kHz Sampling Narrowband Codecs: G.711A/U, G.729AB, iLBC, G.723.1, G.726 Wideband Codecs: G.722, Opus Full-Duplex Speakerphone with AEC VAD / CNG / BNE / Noise Reduction (NR) Packet Loss Concealment (PLC) Dynamic Adaptive Jitter Buffer DTMF: In-band, RFC2833, SIP INFO VQM Voice Quality Monitoring |
| Deployment & Management | Auto-Provisioning: FTP / TFTP / HTTP / HTTPS / DHCP OPT66 / SIP PNP / TR-069 Web Management Portal Web-Based Packet Dump Configuration Export / Import Firmware Upgrade Syslog |
| Video | Hardware Video Decoding: H.264 / H.265 (Optional) Video Resolutions: QVGA, CIF, VGA, 4CIF, 720P, 1080P |
| Physical Specifications | Display: 3.5-inch (480×320) Color Screen Keypad: 26 Keys total 12 Standard Digit Keys 6 DSS Keys 4 Function Keys (Hold, Transfer, Redial, MWI) 3 Volume Control Keys (Up/Down/Mute with LED) 1 Hands-Free Key MSG Indicator LED (Red) HD Handset: RJ9 Port x1 RJ45 Ports: Network x1 + PC x1 (Bridged) USB Port: Standard-A x1 Power: 5V/2A DC or PoE PoE Consumption: 1.5W – 5.65W Adapter Consumption: 2.13W – 7.46W Operating Temp: 0°C – 45°C Humidity: 10–95% |
| Protocols | SIP v1 (RFC2543), v2 (RFC3261) over UDP / TCP / TLS RTP / RTCP / SRTP STUN, DHCP, IPv6, PPPoE, L2TP, OpenVPN SNTP, FTP/TFTP, HTTP/HTTPS, TR-069 |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
