With this 16 port HDMI KVM switch, you can control 16 PCs using a keyboard, mouse and video display. This KVM switch can help you to save time, money, space, devices and power consumption. The item has hot-key and panel button switching methods. The resolution is up to 4K@30Hz, and the client can enjoy a high visual effect.
KVM-450H

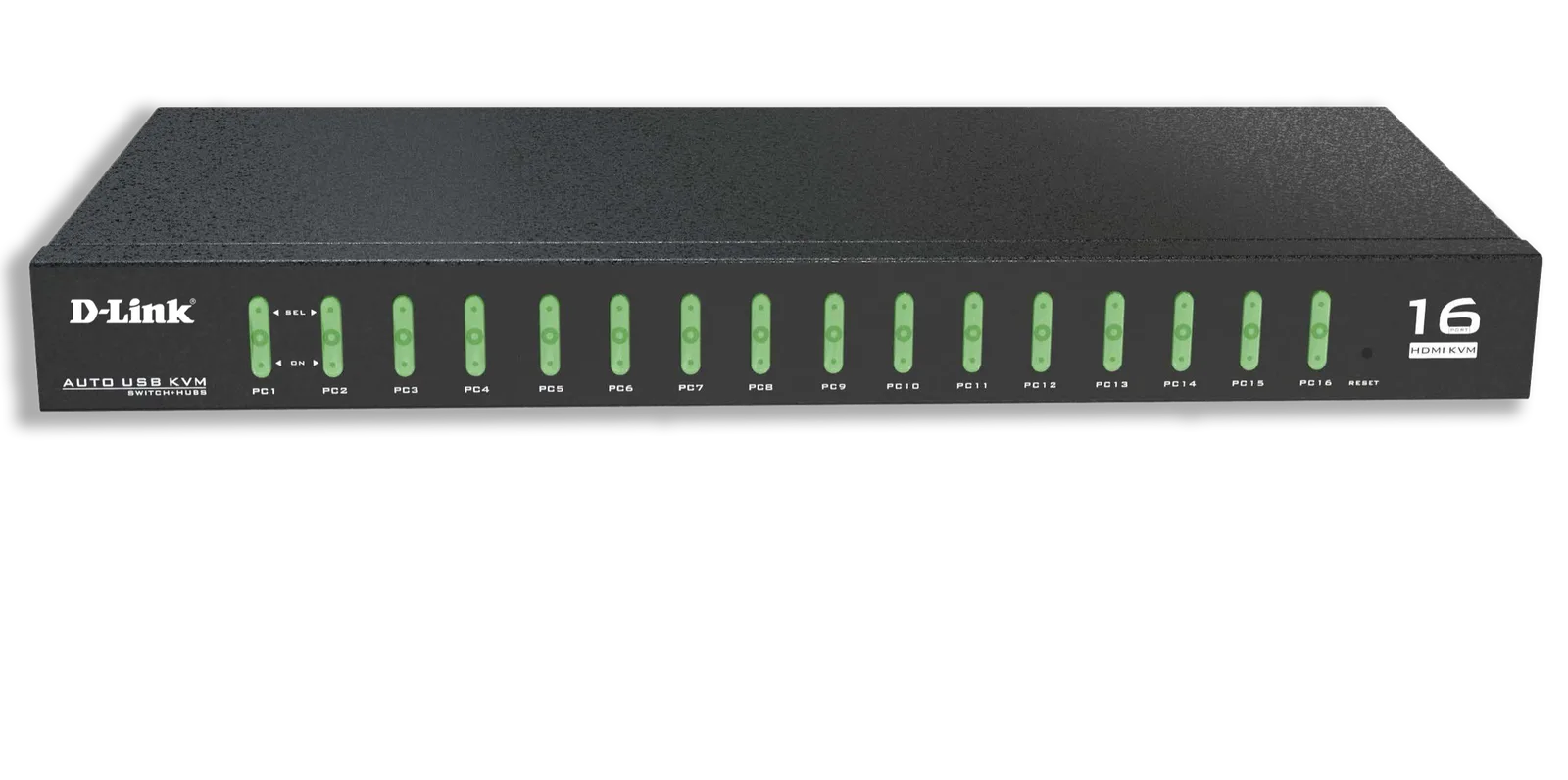

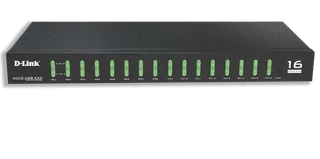

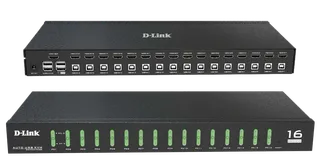

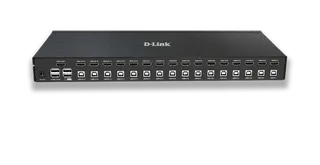

16 Port HDMI KVM Switch
- Support 16 HDMI computers input, 1 HDMI output
- Supports any USB2.0 devices through a USB HUB interface.
- Supports hot-swapping; there is no need to shut down the KVM switch or computer, and you can plug in or unplug a device that is connected.
- The resolution up to 4Kx2K@30Hz
- Switching method: hot-key and button.
- Requires a 12 V DC power adapter
Overview
KVM-450H
Specifications
| Input interface | 16x HDMI type A, 16x USB-B |
|---|---|
| Output interface | 1x HDMI |
| PC select way | Hot-key, button |
| Resolution supported | Up to 4Kx2K@30Hz |
| Keyboard simulation | USB |
| Mouse simulation | USB |
| USB2.0 device | 2x USB-A |
| Scan time | 5-199 seconds (default 5 seconds, can be set by hotkey) |
| Housing | Metal |
| Adaptor | DC12V |
| Packing List | 1x 16 port HDMI KVM switch 1x Power adapter 1x User manual 4x 1.5m HDMI KVM cables 8x 1.8m HDMI KVM cables 4x 2.5m HDMI KVM cables 1x Rack mount 1x IR Remote |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
