D-Link ONT200-01 is a single port GPON fiber optic modem, which is designed to meet the FTTH ultra wide band access requirements of home and SOHO users. It supports NAT / firewall and other functions. It is based on stable and mature GPON technology and layer 2 Ethernet switch technology. It is reliable and easy to maintain, guarantees QoS, and fully conforms to ITU-T G.984 GPON standard. D-Link ONT200-01 supports standard OMCI, which provides up to 1.25Gbps uplink and 2.5Gbps downlink high-speed transfer rate.

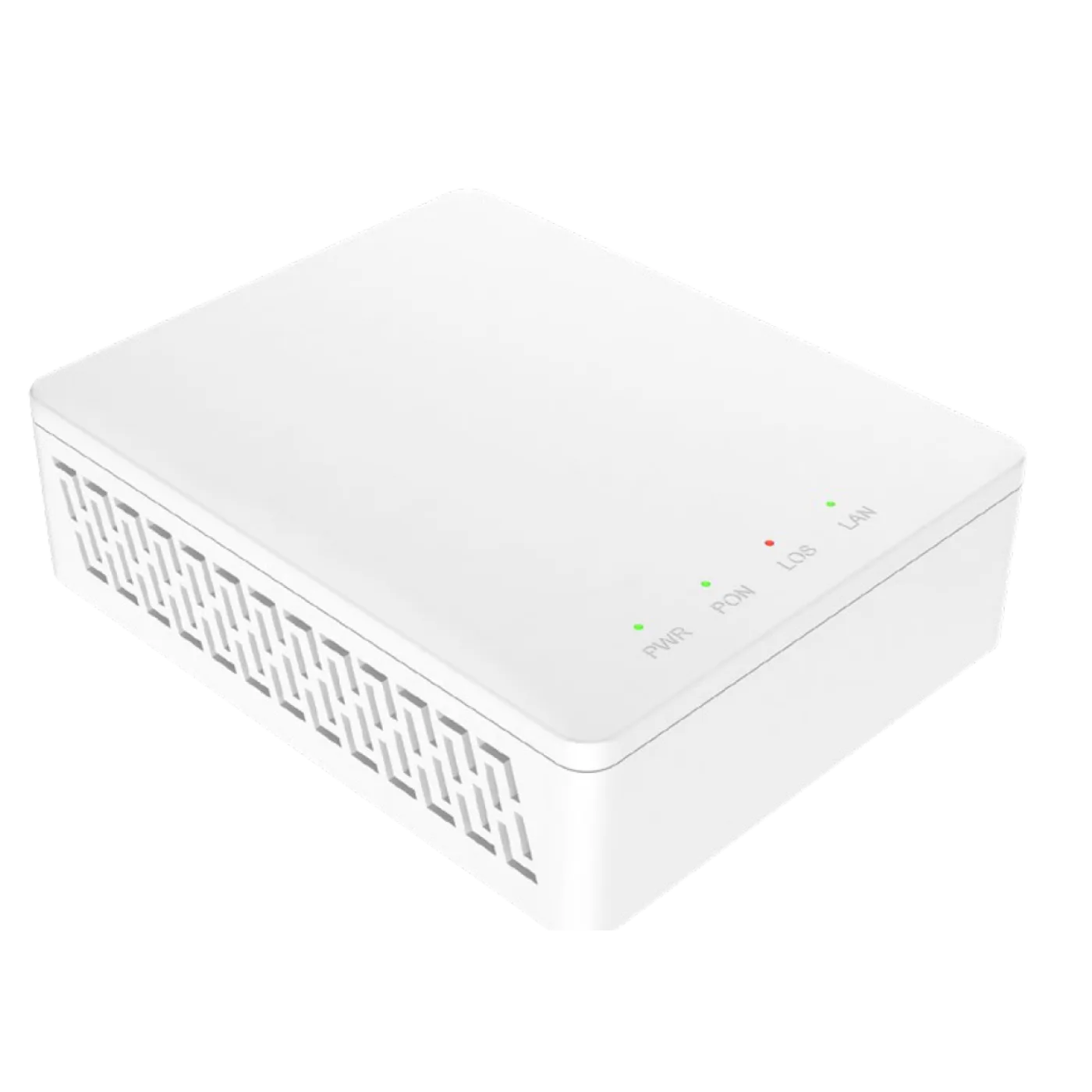

ONT200-01
FTTH/O ONT with 1 Gigabit LAN Port
- GPON WAN port with 1.244Gbps uplink / 2.488Gbps downlink link speed
- Active Ethernet WAN port with 1.25Gbps bi-direction link speed
- 1x 10/100/1000BASE-T Ethernet RJ45 Ports
- DC 12V adaptor, max 0.5A current
- -5 to 45°C operating ambient temperature
Overview
ONT200-01
Specifications
| CPU | RTL9601D, Single core 300M CPU |
|---|---|
| Interface | WAN: One Giga optical interface (APC) LAN: 1 10/100/1000 auto MDI/MDI-X RJ-45 ports |
| WAN Networking | Static IP WAN connection |
| Power supply | 12 V DC, 0.5A |
| FLASH/RAM | NOR FLASH 64Mbit(8MB)/256Mbit (32MB)SDRAM |
| BOB Driver | RTL8290B |
| GPON Protocol Specification | Comply ITU-T G.984 GPON standard: G.984.1 general characteristics G.984.2 physical Media Dependent (PMD) layer specifications G.984.3 transmission convergence layer specifications G.984.4 ONT management and control interface specification Support DS/US transmission rate to 2.488 Gbps/1.244 Gbps Wavelength: 1490 nm downstream & 1310 nm upstream Comply with class B+ type PMD Physical distance reach to 20 km Support Dynamic Bandwidth Allocation (DBA) GPON Encapsulation Method (GEM) supports Ethernet packet Supports GEM header removal/insertion and data extraction/segmentation (GEM SAR) Configurable AES DS and FEC DS/US Support up to 8 T-CONTs each with priority queues (US) |
| Power Specifications | Power adapter input: 100-240V/AC 50/60Hz Whole machine power supply: 12V/0.5A DC |
| LED Indicators | Power, PON, LOS, INTERNET |
| Product Size | 90X72X28mm (length X width X height) |
| Work Environment | Working temperature: -10°C to 50°C Working humidity: 0-90% |
| Certification | CE/FCC |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
