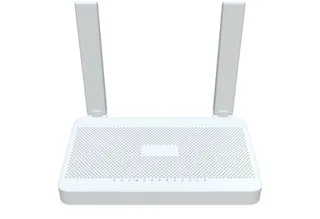

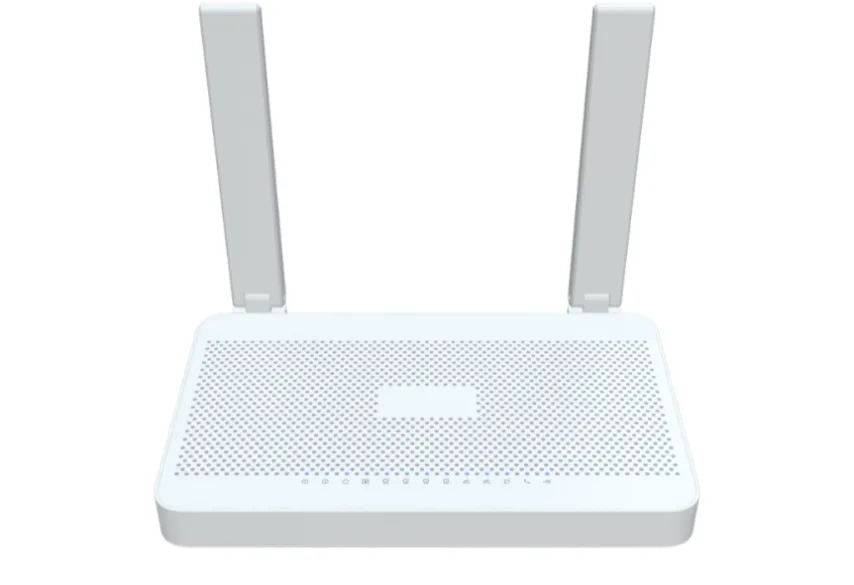

ONT200-15BEU (A2)

BE3600 Wi-Fi 7 GPON HGU

GPON WAN port with 1.244Gbps uplink / 2.488Gbps downlink link speed
1x 10/100/1000/2500 BASE-T Ethernet RJ45 Ports
4x 10/100/1000BASE-T Ethernet RJ45 Ports
Support 2T2R 2GHz 802.11b/g/n/ac/ax/be, 688Mbps
Support 2T2R 5GHz 802.11a/n/ac/ax/be, 2882Mbps
Support VoIP with 1 FXS port
Support 1 USB port

Where to buy Download datasheet View specifications

Overview

ONT200-15BEU GPON ONT is a next-generation terminal-level GPON device designed for FTTB, FTTH, and FTTO access scenarios; it is built to meet carrier-grade requirements for modern FTTH network deployments.

The ONT supports pure data, Wi-Fi, and multiple service access types, enabling flexible triple-play service delivery. It is an ideal all-in-one access solution for both residential and business environments.

With support for standard OMCI, the ONT delivers high-speed GPON performance of up to 1.25Gbps uplink and 2.5Gbps downlink. Integrated dual-band 802.11be Wi-Fi 7 provides wireless speeds of up to 3.6Gbps for next-level connectivity.

Specification
CPU	1.2GHz ARM CA53 dual-core
Chip model	AN7553CT
Memory	NAND FLASH 2Gbit(256MB)/ 512MB DDR3 SDRAM
Wi-Fi Chip	MT7990AN+MT7976CN
BOB Driver	EN7571N
GPON Protocol Specification	Comply ITU-T G.984 GPON standard: G.984.1 general characteristics G.984.2 Physical Media Dependent (PMD) layer specifications G.984.3 transmission convergence layer specifications G.984.4 ONT management and control interface specification Support DS/US transmission rate to 2.488 Gbps/1.244 Gbps Wavelength: 1490 nm downstream & 1310 nm upstream Comply with class B+ type PMD Physical distance reach to 20 km Support Dynamic Bandwidth Allocation (DBA) GPON Encapsulation Method (GEM) supports Ethernet packet Supports GEM header removal/insertion and data extraction/segmentation (GEM SAR) Configurable AES DS and FEC DS/US Support up to 8 T-CONTs each with priority queues (US)
Network Protocol Specifications	802.3 10/100/1000/2500 Base T Ethernet ANSI/IEEE 802.3 NWay auto-negotiation 802.1Q VLAN tagging/un-tagging Support flexible traffic classification Support VLAN stacking Support VLAN Intelligent Bridging and Cross Connect mode

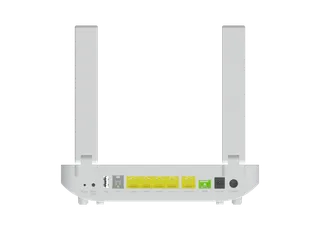

Interface	WAN: One Giga optical interface (APC or UPC) LAN: 110/100/1000Mbps/2500Mbps + 410/100/1000 auto MDI/MDI-X RJ-45 ports VoIP: 1RJ-11 port USB: 1USB2.0
LED Indicators	Power, INT, PON/LOS, 2.5G LAN. LAN4-1, 2.4G WLAN, 5G WLAN, WPS, TEL, USB
Frequency Band	2.4 GHz frequency band 40MHz and 5.8 GHz frequency band 160MHz
Buttons	WPS/WLAN/Reset
Antennas	15G 5dBi Internal antennas, 22.4G & 5G 5dBi External antennas
Power Supply	DC12V 1.5A
Product Size	215 x 130 x 43 mm (Length x Width x Height)
Work Environment	Working temperature: 0°C~40°C, Working humidity: 5~95%
Security	WPA/WPA2/WPA3, 64/128bit WEP data encryption, Firewall, DoS Protection, SSL connection
WAN Networking	Static IP WAN connection, DHCP client WAN connection, PPPoE WAN connection
VOIP	G.711A/μ, G.729, and G.722 encoding/decoding, T.30/T.38/G.711 fax mode DTMF /Emergency calls (with the SIP protocol)
Management	Standard OMCI (G.984.4) Web GUI (HTTP/HTTPS) Firmware upgrade via FTP/TFTP/HTTP Telnet, Web, SSH CLI command via telnet/console Configuration backup/restore TR069
Certification	CE

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
