D-Link

DAP-E9560

BE9500 Wi-Fi 7 Tri-Band Access Point

  • Wi-Fi 7 BE9500 Tri-band high-speed connectivity
  • 1x 10 Gigabit (PoE) + 1x 2.5 Gigabit Ethernet LAN
  • Powered by 802.3bt PoE, USB-C adapter
  • Max. channel bandwidth support (320MHz)
  • 4096-QAM – Up to 20% faster than Wi-Fi 6
  • Flexible use of multiple operating modes
  • WPA3 encryption for enhanced Wi-Fi security
  • Customizable Captive Portal for user access
  • Multi-Link Operation boosts connection stability
  • Centrally managed via Nuclias Network Controller
Where to buyDownload datasheetView specifications

Overview

User Benefits​

Wi-Fi 7 Connectivity

Enables faster speeds, lower latency, and greater capacity for high-performance, future-ready networks

10G Ready for Wi-Fi 7

Equipped with 10G PoE and 2.5G ports, delivering wired backhaul and flexible uplink options to unleash the potential of Wi-Fi 7

Customizable Network Access

Supports Multi-SSID and Captive Portal for secure, customizable network access for different user groups

Flexible Installation Options

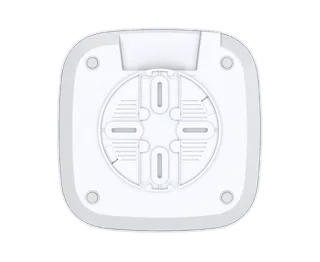

Supports PoE (802.3bt), USB-C, and comes with ceiling grid and wall/ceiling mounts for easy deployment in any environment

Smart Segmentation

Enhanced security with VLANs per SSID and MAC control for precise segmentation and restricted access

Centralized Management

Easily automate, monitor, and scale your network with centralized management via Nuclias Network Controller

Enhanced Performance for All Applications

Wi-Fi 7 will reduce interference and enhance the performance of your wireless network, making it suitable for various usage environments and applications, such as remote work, video conferencing, large file transfers, streaming media, AR/VR, and cloud service access.

Double the bandwidth from 160 MHz to 320 MHz
Multi-Link Operation (MLO) - Improves speed and stability

Multi-RUs and Puncturing – Channel bandwidth can be used more efficiently

DAP-E9560 Enhanced Performance for All Applications illustration

Multiple Operation Modes

The DAP-E9560 can be configured to fit the needs of your network and optimize performance.

Wireless Distribution System (WDS) with Access Point

DAP-E9560 Multiple Operation Modes illustration

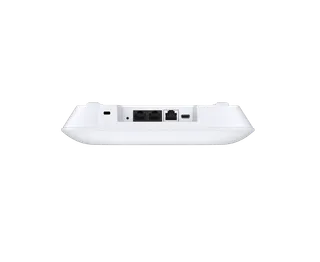

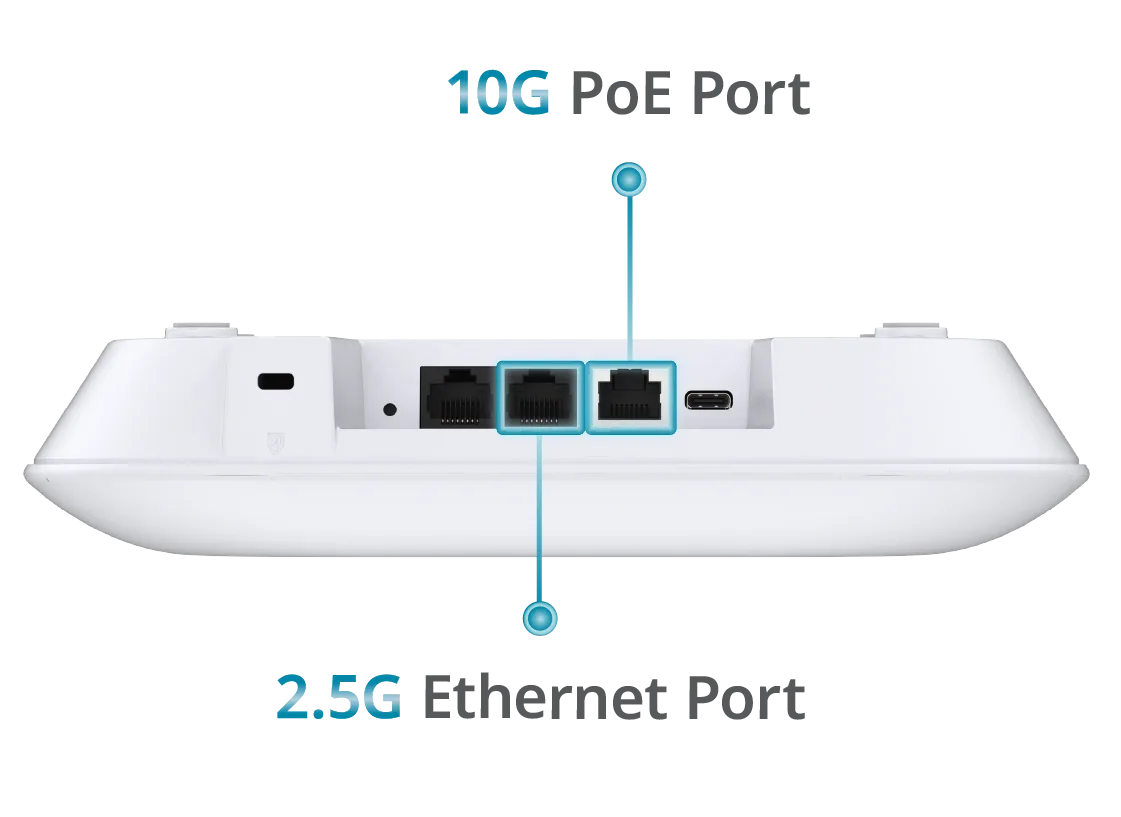

Optimized Wired Performance with 10G PoE and 2.5G Ports

Equipped with both a high-speed 10G PoE Ethernet port and an additional 2.5G Ethernet port, the DAP-E9560 ensures exceptional wired backhaul and flexible uplink options. This advanced design maximizes wired throughput for demanding enterprise environments, fully unleashing the ultra-fast potential of Wi-Fi 7 and supporting high-density, high-performance deployments.

DAP-E9560 Optimized Wired Performance with 10G PoE and 2.5G Ports illustration

Centralized Network Control Made Simple

The DAP-E9560 integrates seamlessly with D-Link’s Nuclias Network Controller and software-based management platform, empowering businesses with centralized, remote management capabilities. Accessible from anywhere via an internet connection, this solution enables streamlined network control, automation, and effortless scalability. With built-in analytics and reporting, it delivers actionable insights across your network down to each access point for smarter decision-making.

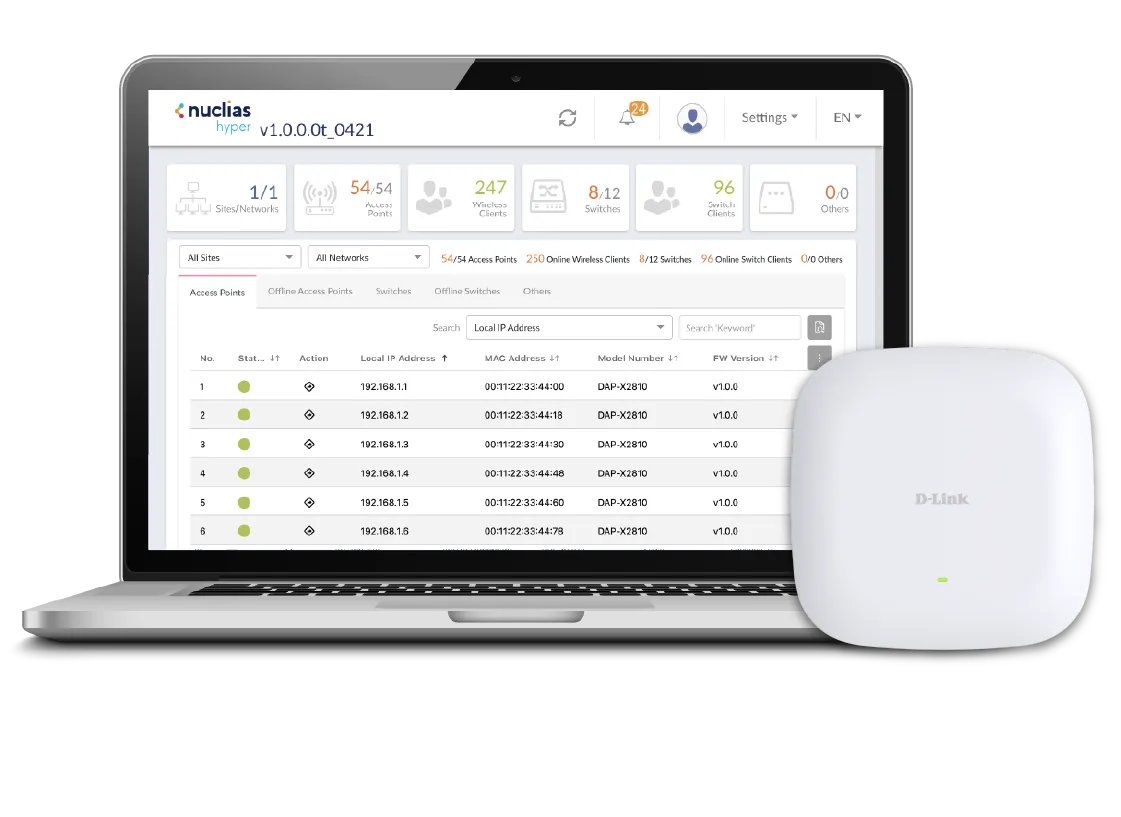

DAP-E9560 Centralized Network Control Made Simple illustration

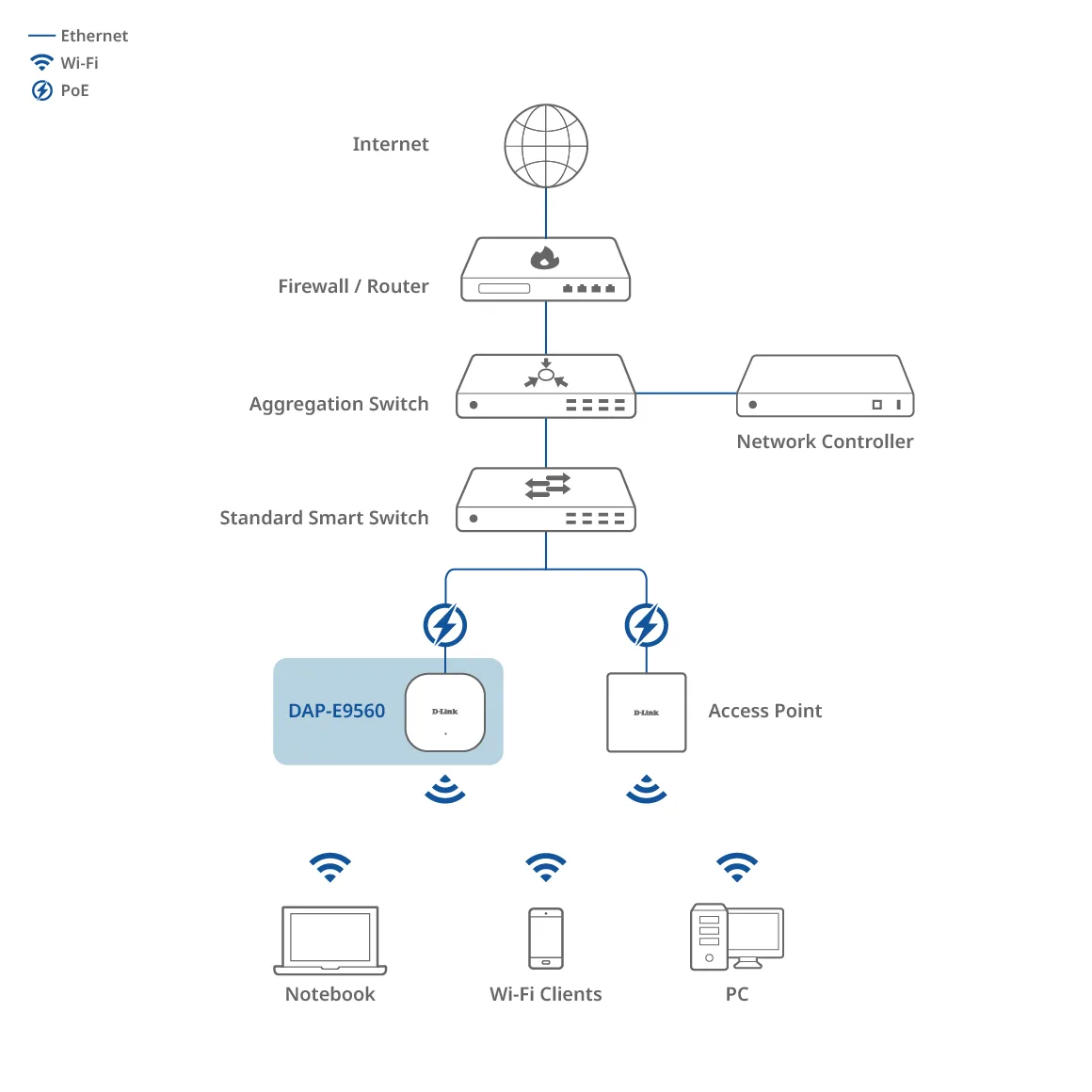

Connection Diagram

DAP-E9560 is designed for ultra-fast, secure, and efficient wireless connectivity to meet the demands of modern high-density environments. With Tri-band support, 320 MHz channels, 4096-QAM, and 10G Ethernet, it delivers exceptional performance for latency-sensitive applications like video conferencing, cloud access, and real-time collaboration.

DAP-E9560 Connection Diagram illustration

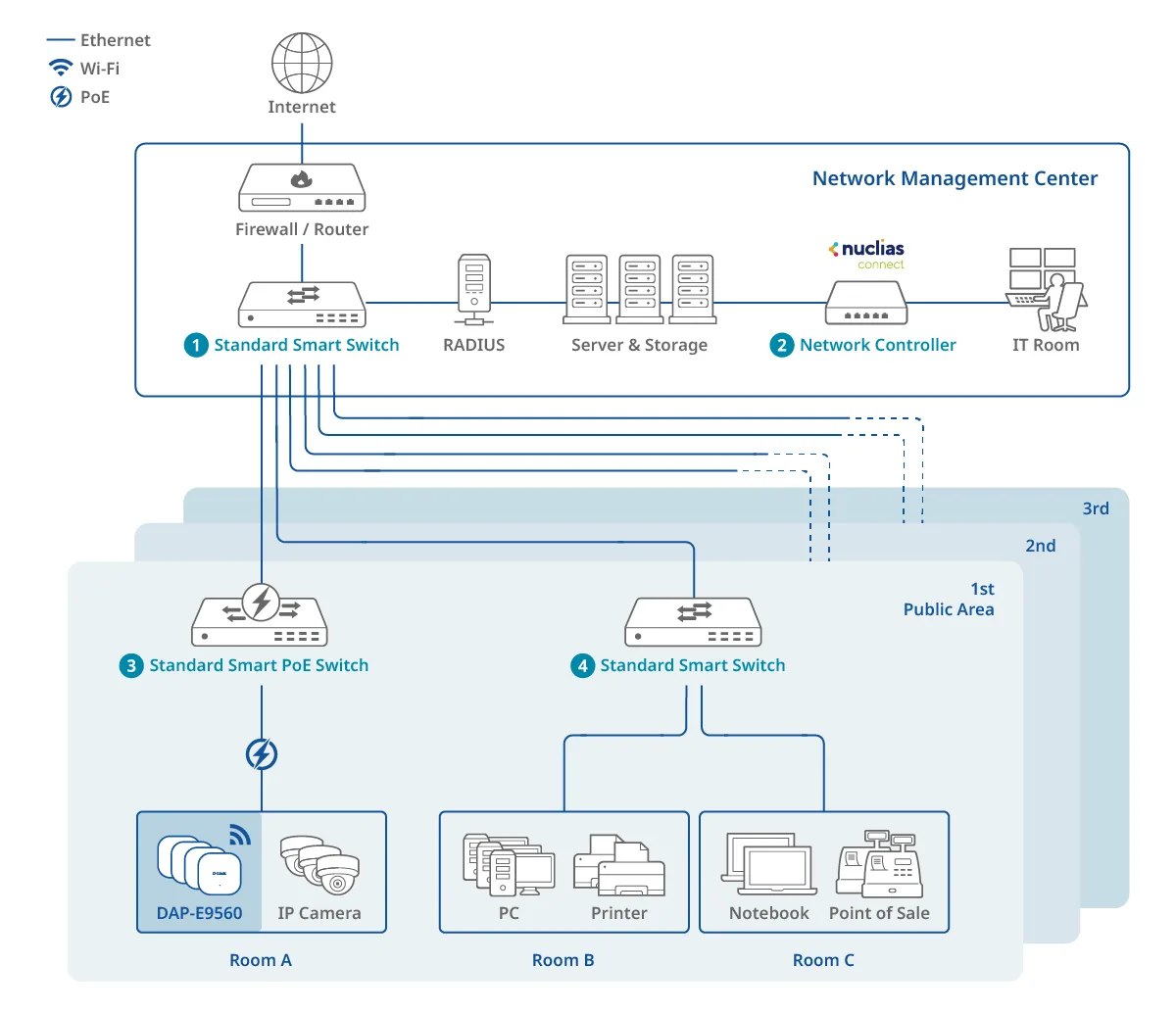

SME (Enterprise)

User benefits :

  • High-speed data for better productivity
  • Smooth video calls and collaboration
  • Stable performance for many devices
  • Fast roaming across floors
  • Enhanced your productivity
  • Secure access with WPA3 and VLANs

Learn more :

  1. Standard Smart Switch : DXS-1210-12SC
  2. Network Controller : DNH-1000
  3. Standard Smart PoE Switch : DXS-1250-28YP
  4. Standard Smart Switch : DMS-1250-18
SME (Enterprise)

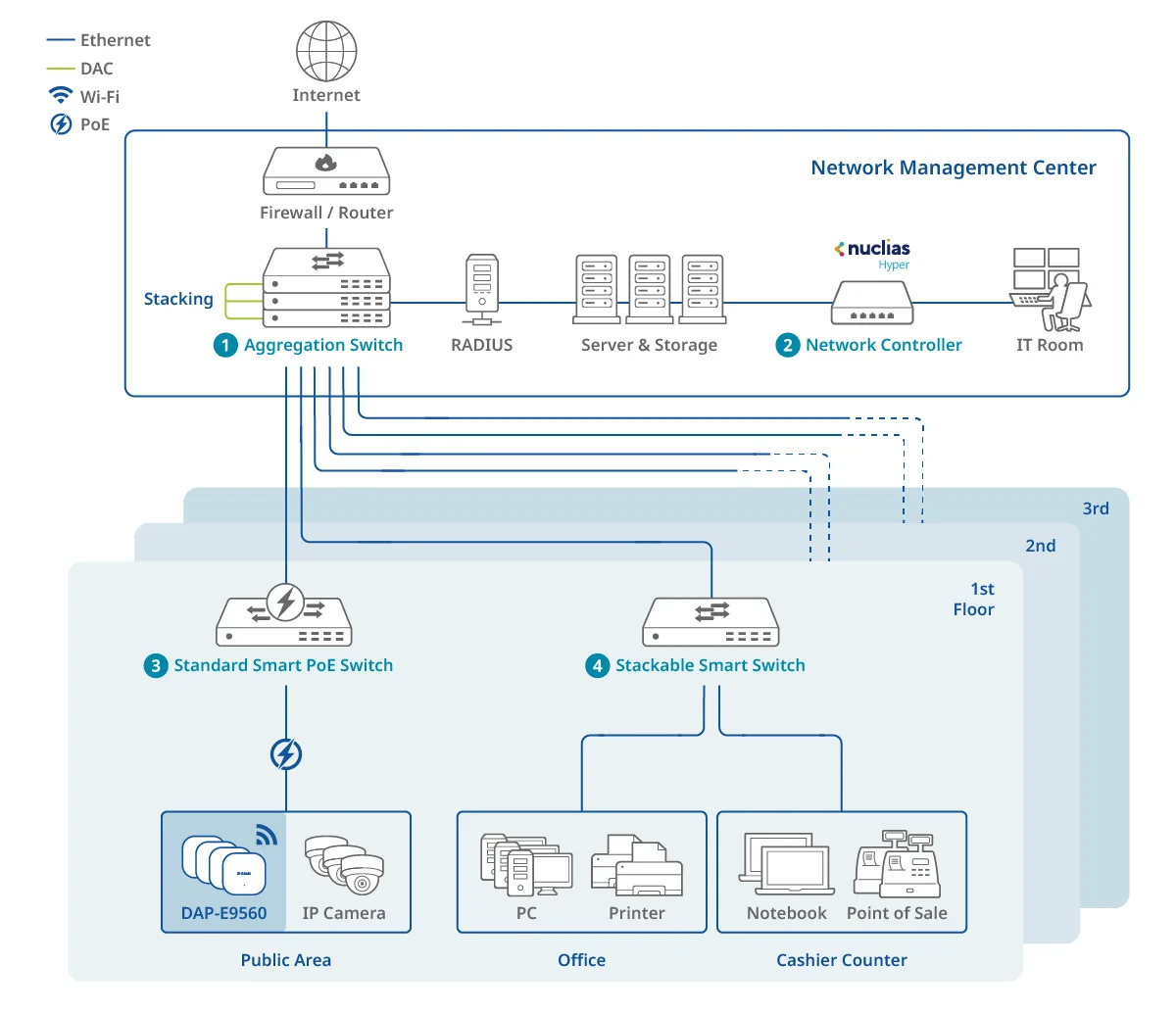

Department Store (Business)

User benefits :

  • High-bandwidth uplinks for fast, stable connections
  • Rapid fault recovery for reliable performance
  • Comprehensive security to protect critical data
  • Supports long-distance connectivity
  • VLAN and QoS to optimize the learning experience

Learn more :

  1. Aggregation Switch : DXS-3130-32S
  2. Network Controller : DNC-5000
  3. Standard Smart PoE Switch : DXS-1250-28YP
  4. Stackable Smart Switch : DGS-1530 Series
Department Store (Business)

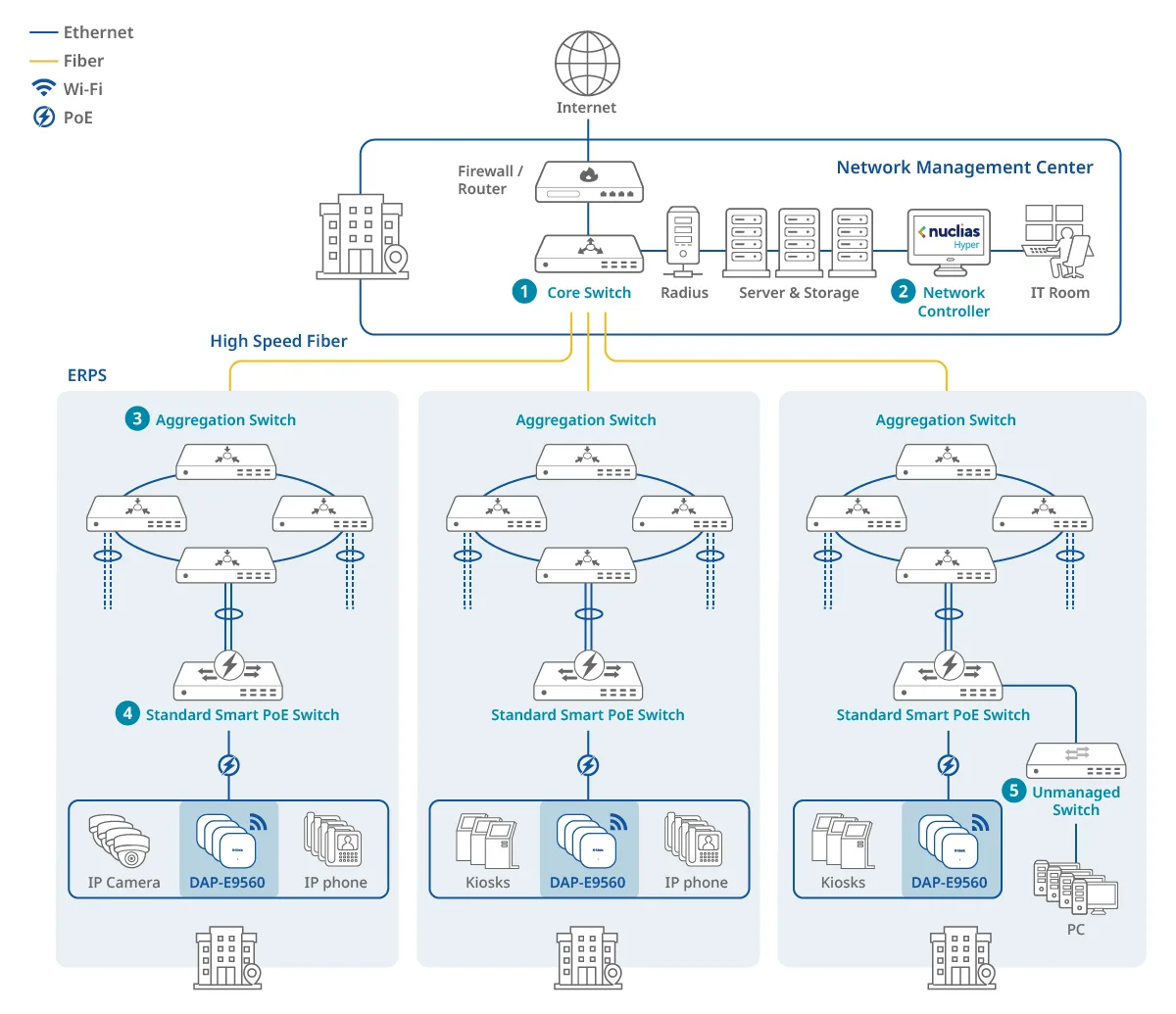

Transnational University (Education)

User benefits :

  • High-speed connectivity across campus
  • Reliable performance in high-density areas
  • Low latency for online learning and research
  • Fast roaming between buildings
  • Supports AR/VR and 4K applications
  • Secure access for all user groups

Learn more :

  1. Core Switch : DXS-3610-54S
  2. Network Controller : DNC-5000
  3. Aggregation Switch : DXS-3130-32S
  4. Standard Smart PoE Switch : DXS-1250-28YP
  5. Unmanaged Switch : DMS-1024
Transnational University (Education)

DAP-E9560

Specifications

Technical specifications for DAP-E9560
Interfaces1 x 10-Gigabit Ethernet PoE LAN port 1 x 2.5-Gigabit Ethernet LAN port
Antenna type2 x 2.4 GHz internal antennas 2 x 5 GHz internal antennas 2 x 6 GHz internal antennas
IEEE StandardIEEE 802.11be/ax/ac/n/g/b/a IEEE 802.3u/ab/an IEEE 802.3bt PoE
Security ProtocolWPA/WPA2/WPA3™ Personal/Enterprise WEP 64/128-bit SSID broadcast disable Enhanced Open MAC address access control Internal RADIUS server
Operating Frequency2.4 - 2.483 GHz 5_925 7_125 GHz 5.15 - 5.35 GHz 5.47 - 5.85 GHz
Device ManagementWeb (HTTP/HTTPS) Telnet/SSH Nuclias Network Controller SNMP
Dimensions223 x 223 x 46.7 mm​ (W x D x H)
Power Input802.3bt or 20V/2.25A
Operating Temperature0°C - 40°C (32°F - 104°F)
Operating Humidity10% to 90% non-condensing
Storage Humidity5% to 95% non-condensing
Console PortRJ-45 console port
Power Supply TypeUSB Type-C

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
